Diesel Data
: Automotive Repair
Home
>>
Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
Speaker-RR Door
Speaker-RR Door

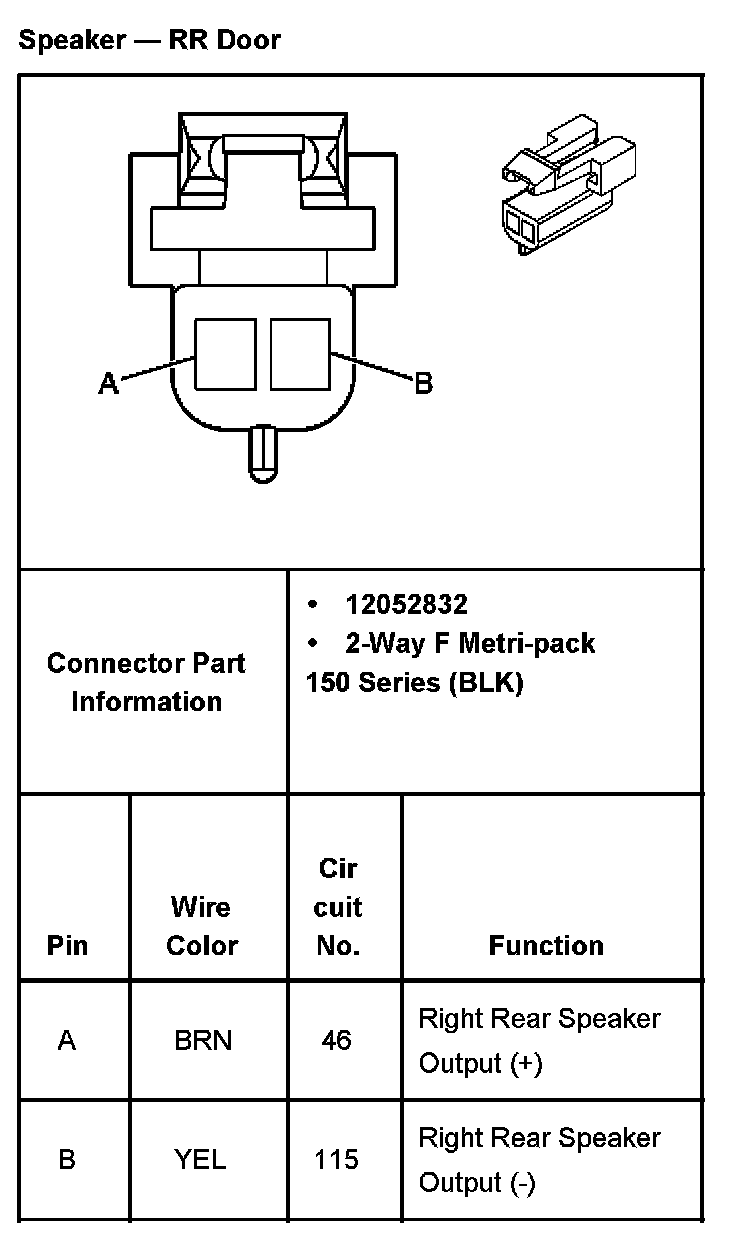

Speaker-RR Door:
