Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

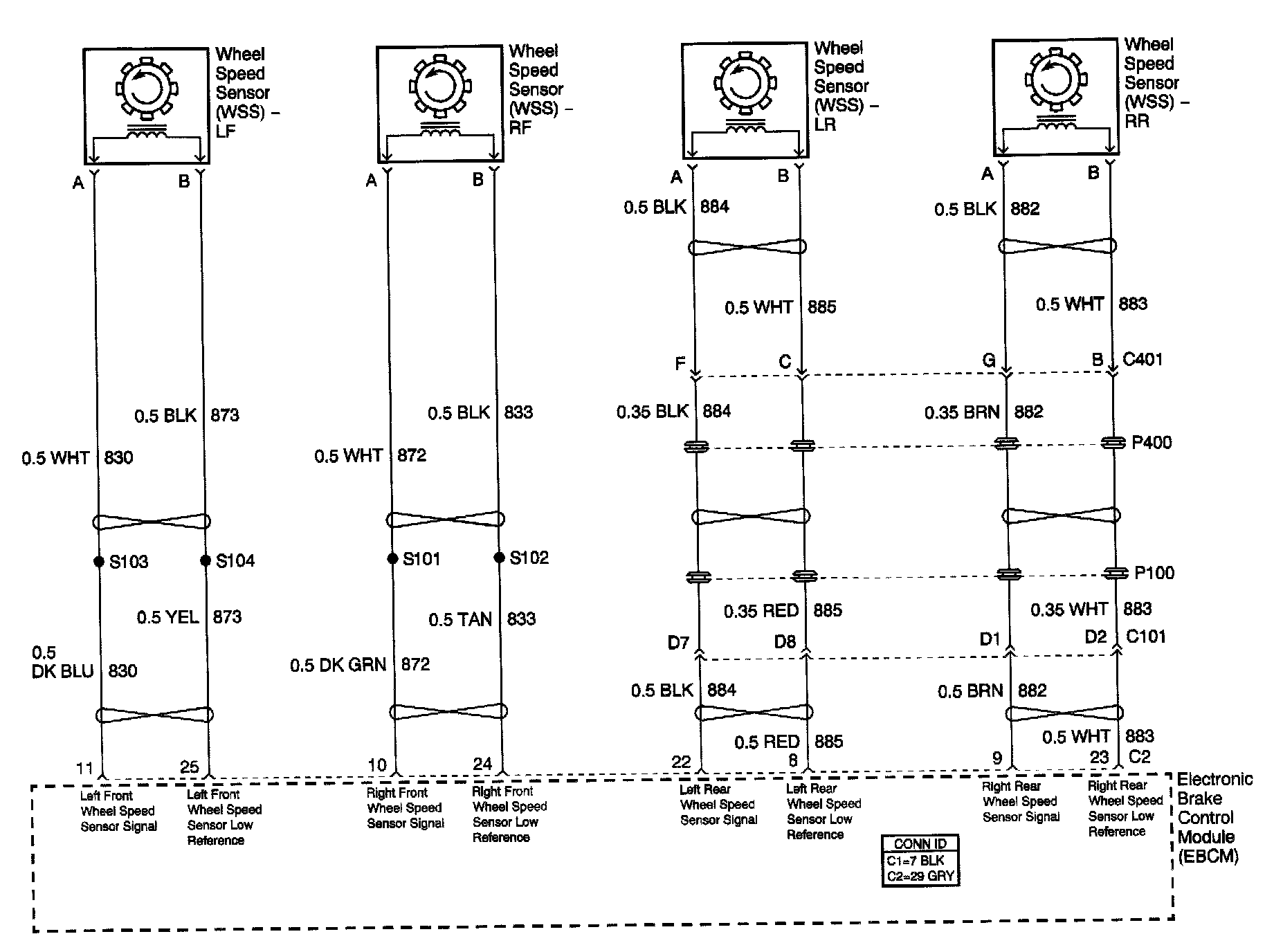

ABS Diagram:

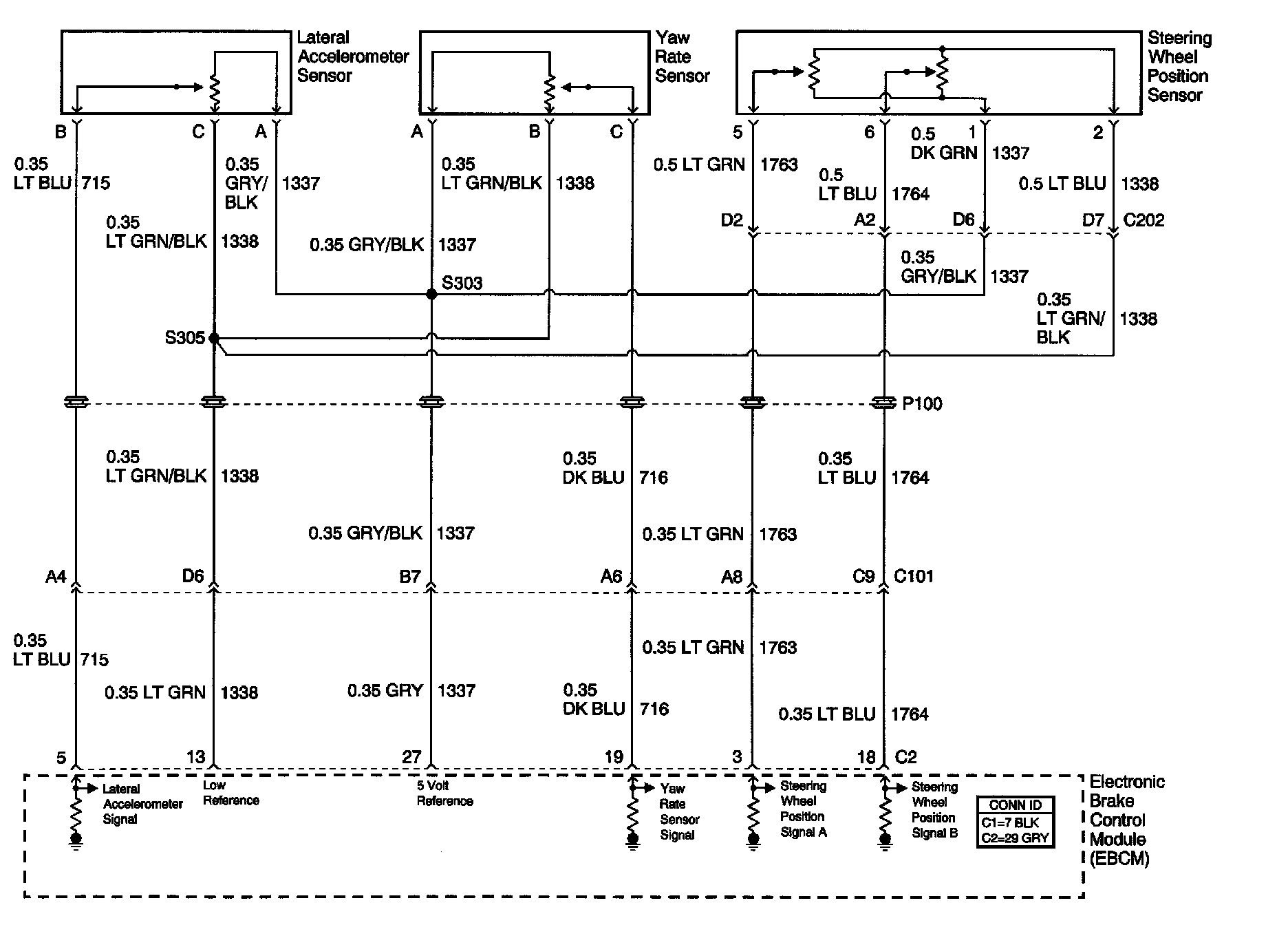

ABS Diagram:

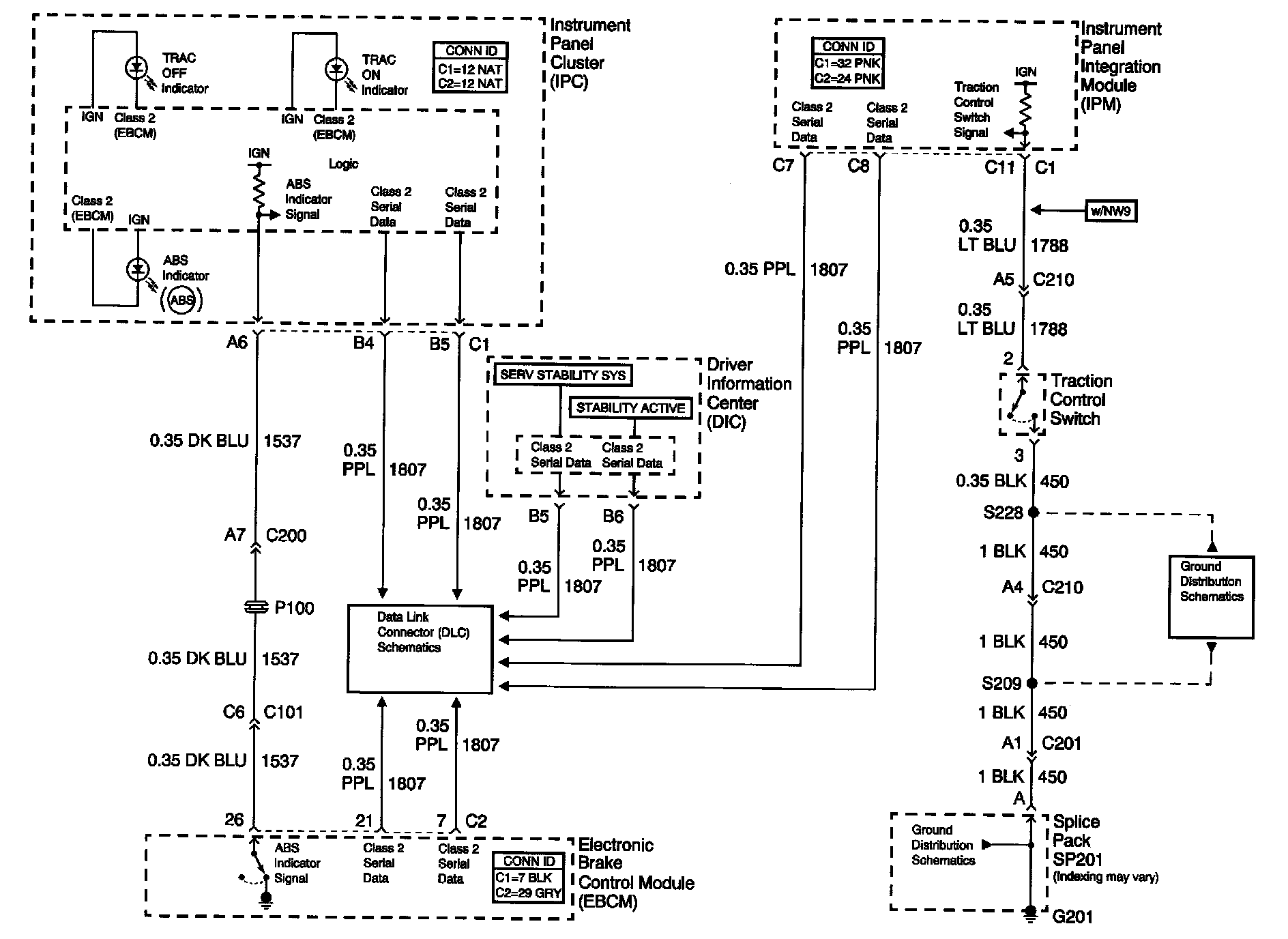

ABS Diagram:

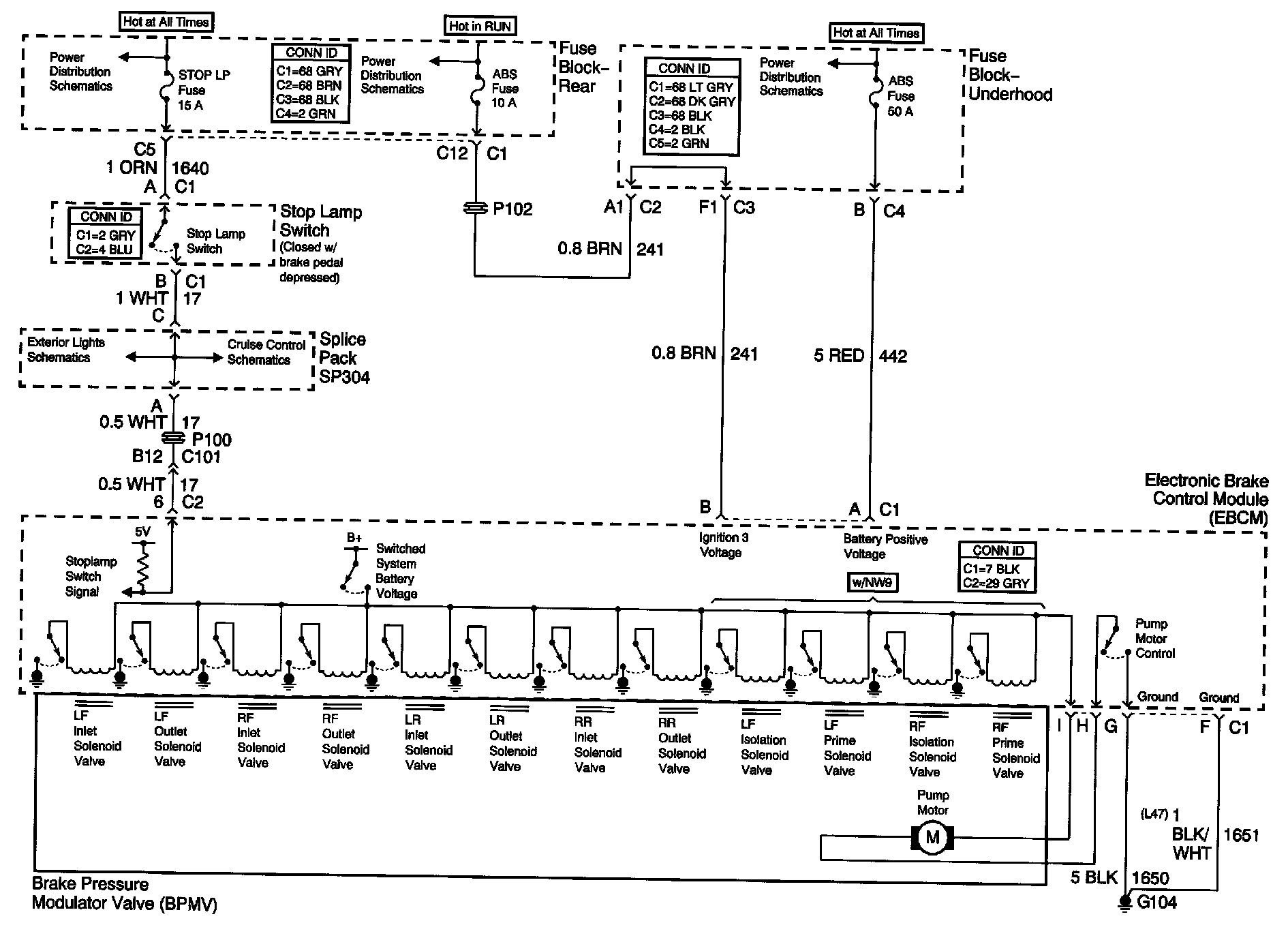

ABS Diagram:

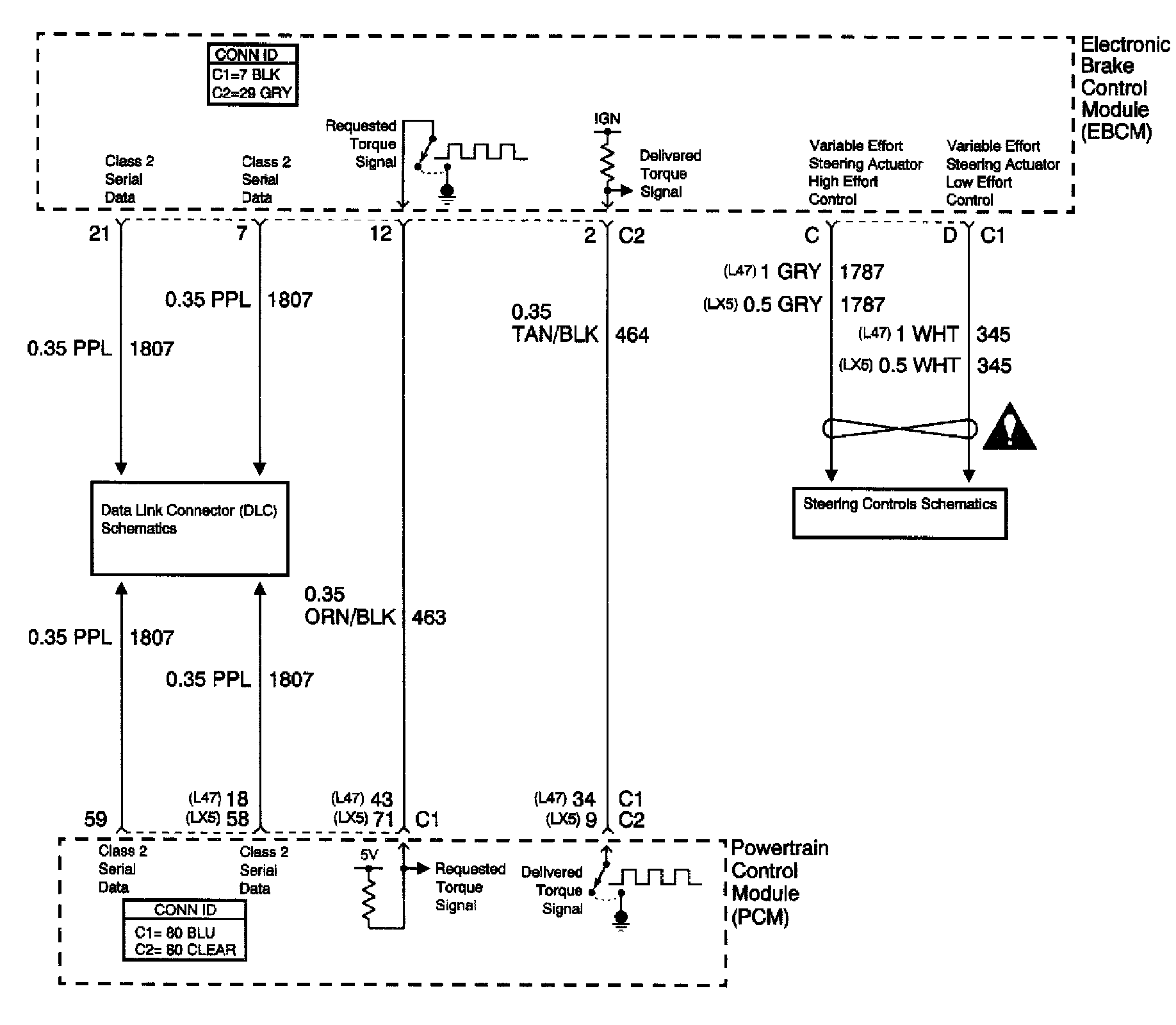

ABS Diagram:
