Deflector Replacement - Instrument Panel Air - Right

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - RIGHT

REMOVAL PROCEDURE
1. Remove the right I/P accessory trim panel.

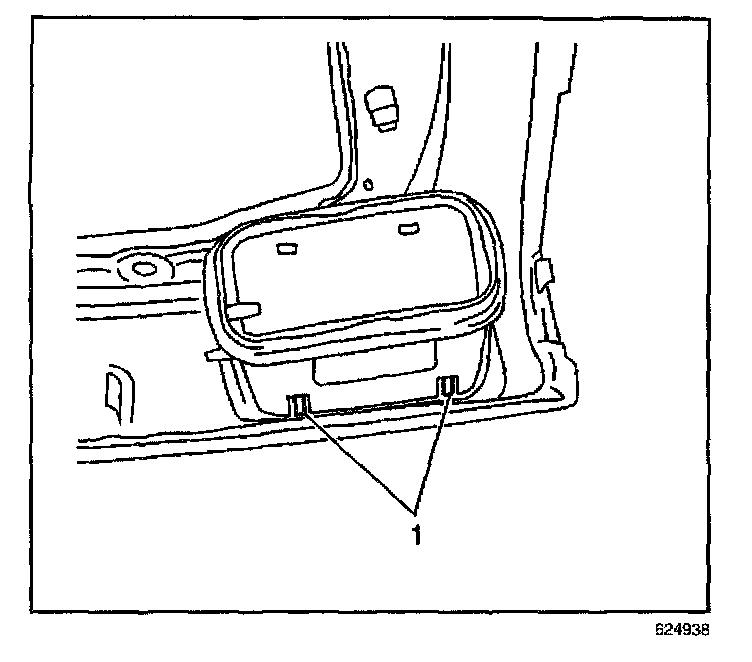

2. Depress the retaining tabs (1) in order to remove the right air deflector.

INSTALLATION PROCEDURE




1. Install the air deflector until the retaining tabs (1) are seated into the trim panel.
2. Install the right I/P accessory trim panel.
