Champ L4-1597cc 1.6L VIN 3 2-BBL
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering Column
Steering Column

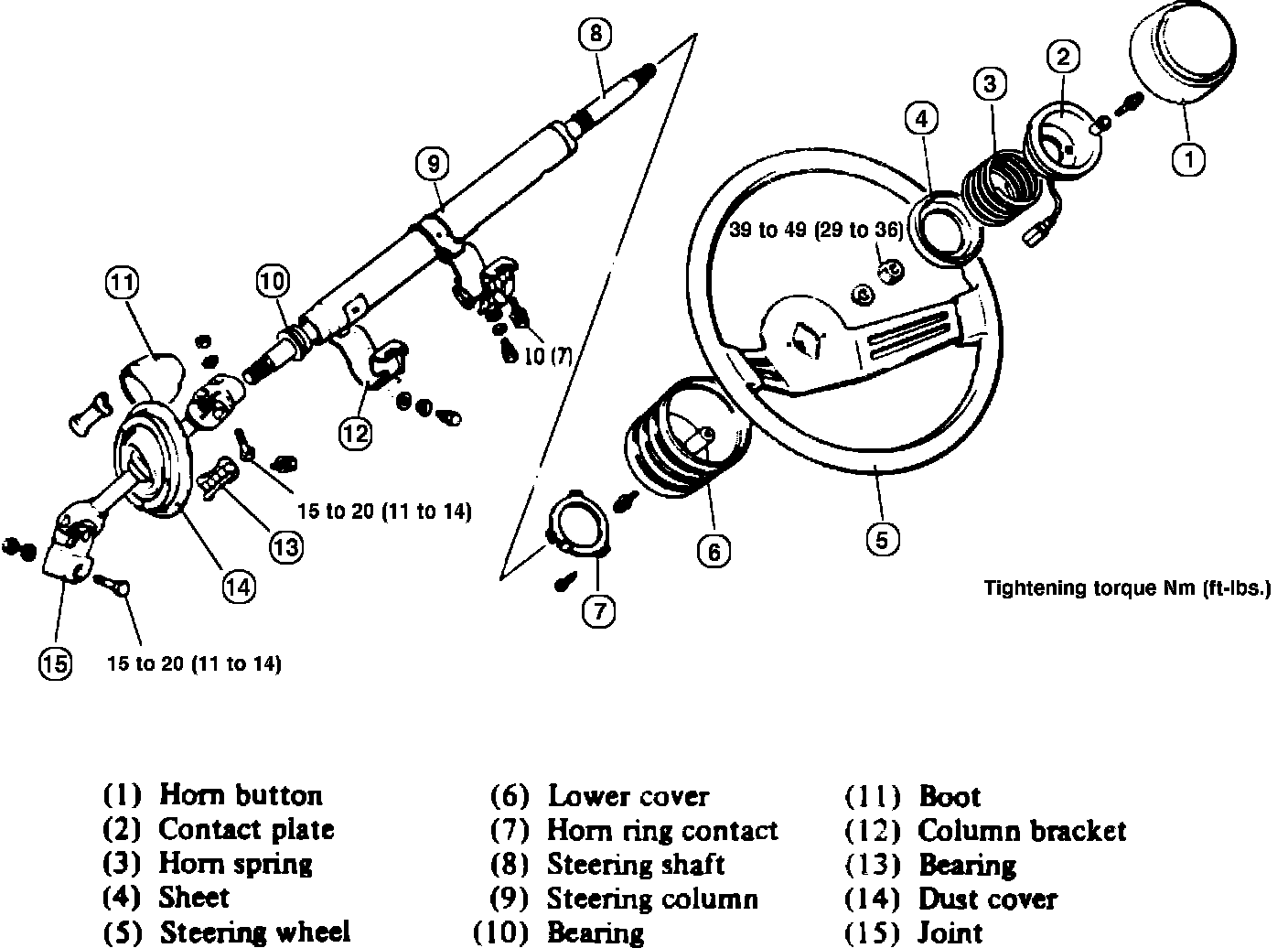

Fig. 1 Exploded view of steering column assembly. 1984 Colt Hatchback:
