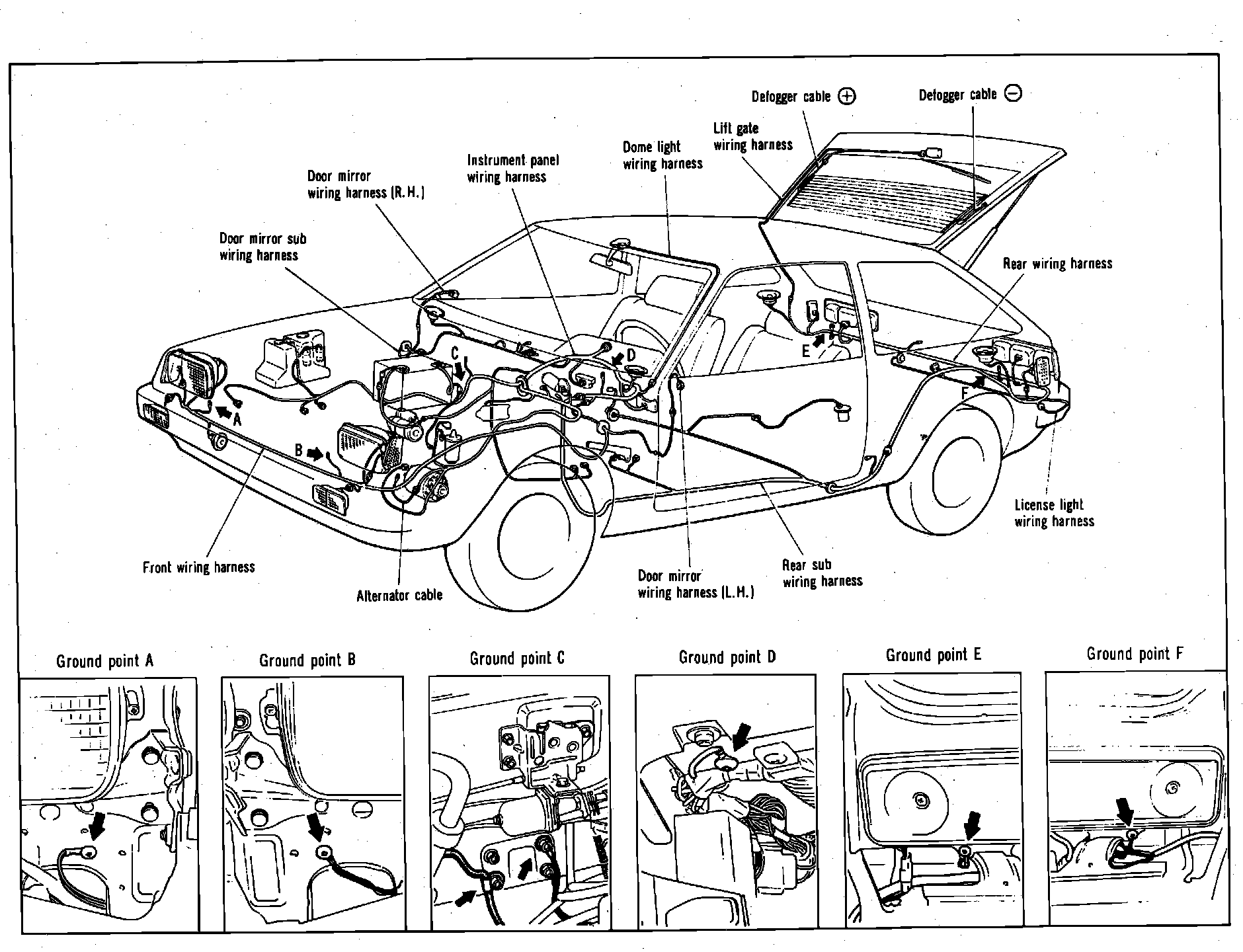

Overall Configuration Harness Diagram
Overall Configuration Harness Diagram
Wiring Harnesses.:
On Body
Applicable to: 1981-84
