Symptom/Condition & Diagnosis Information

SYMPTOM/CONDITION

The steering wheel oscillation condition may occur in some subject vehicles at highway speeds and may be described by the owner as a shimmy in the steering wheel..

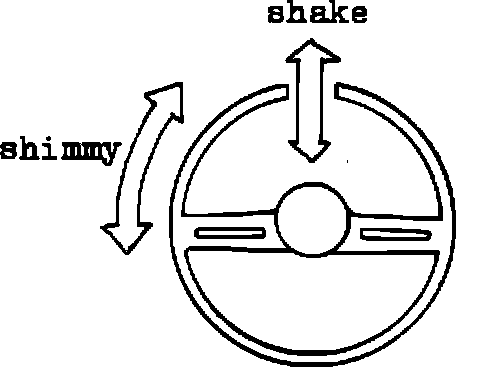

FIGURE 1:

DIAGNOSIS

Road test the vehicle to verify the complaint.. The steering wheel oscillation (shimmy) normally will occur at cruising speeds between 55 and 68 mph (88 to 109 km/h) with its peak at 65 mph (104 km/h) using test drive or in-shop testing (see InShop Testing Procedures in this bulletin). Do not confuse steering shimmy (Figure 1) with braking and/or a body shake that results in vertical oscillation of entire body at highway speeds.

While road testing, determine if a brake vibration/pulsation exists. If so, correct the brake vibration as required. If machining of front rotors is required, machine rotors on hubs.
