Plymouth
>>
1982
>>
Gran Fury V8-318 5.2L VIN K 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Except California
>>
2 BBL. Carburetor
2 BBL. Carburetor

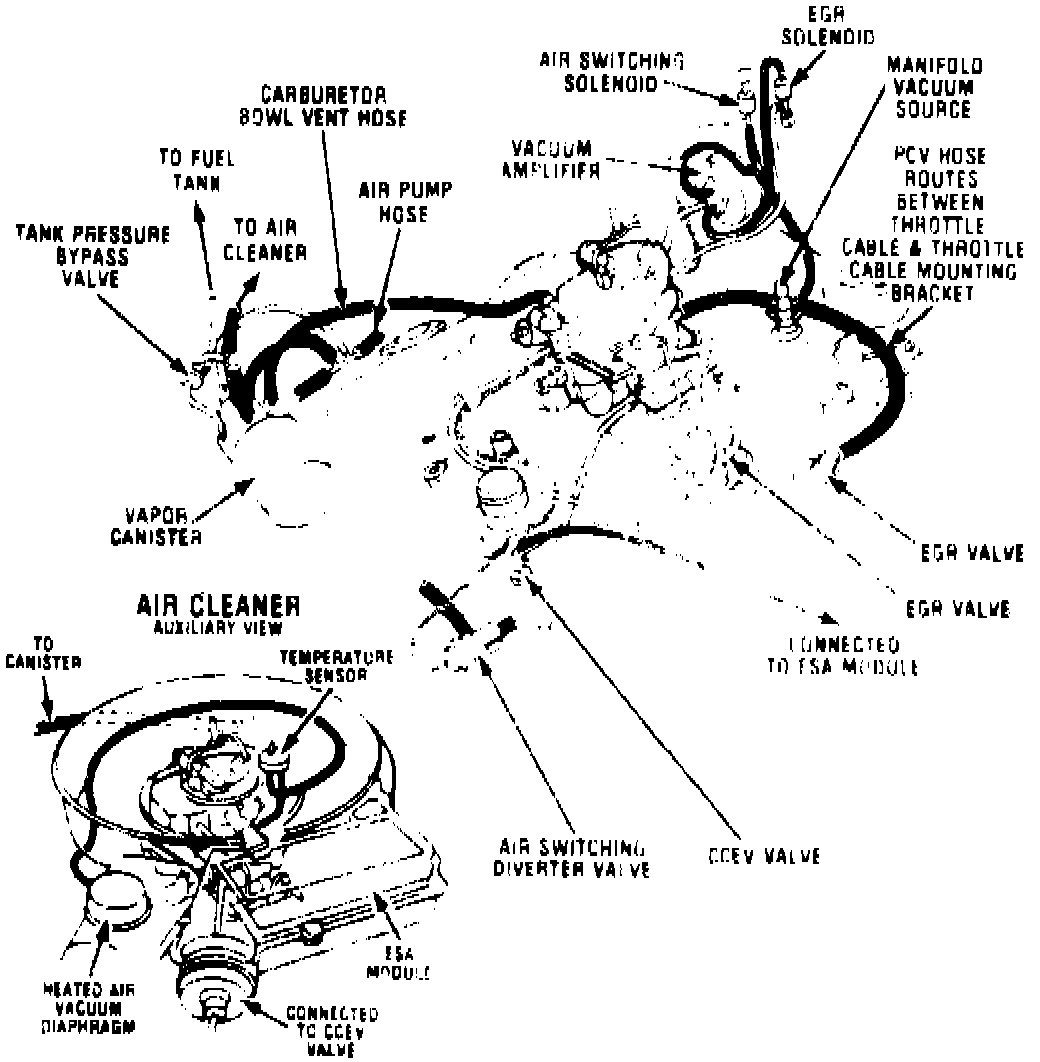

Fig. 127 - Vacuum Hose Routing:
