Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Except California
>>
4 BBL. Carburetor
4 BBL. Carburetor

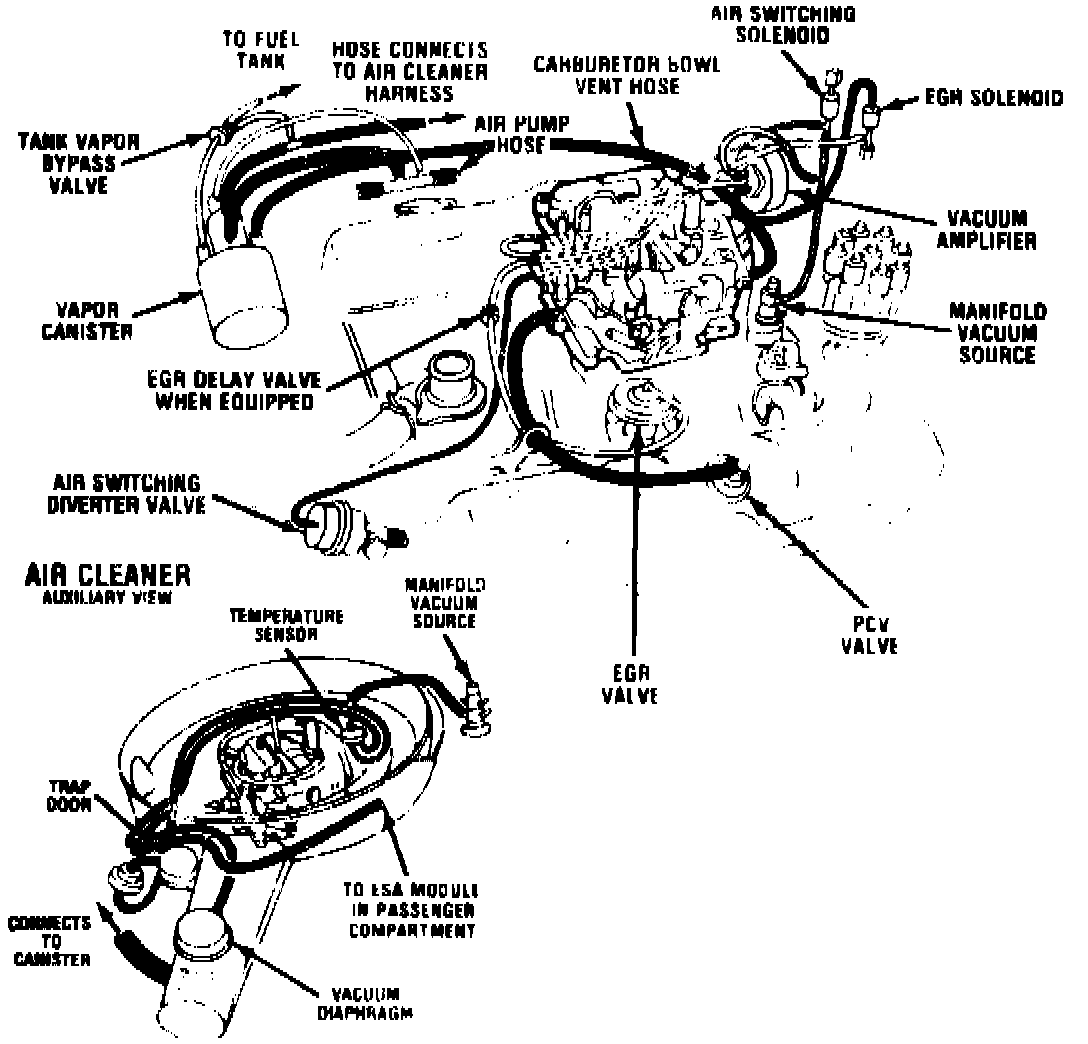

Fig. 128 - Vacuum Hose Routing:
