Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1982
>>
Gran Fury V8-318 5.2L VIN K 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
US
>>
Part 2
>>
With 4 Barrel Carburetor
With 4 Barrel Carburetor

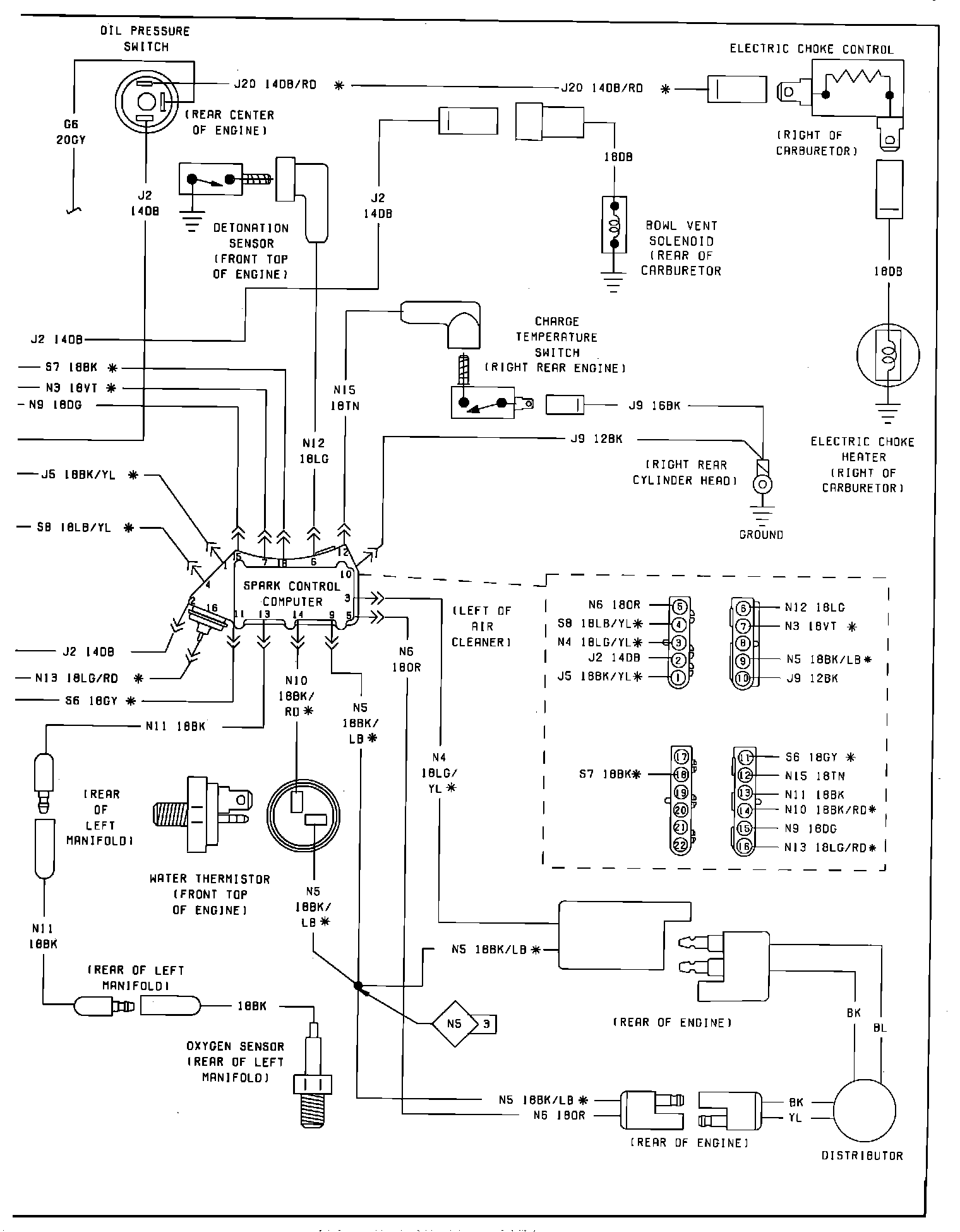

Electronic Spark Advance Wiring Circuit (Part 2 of 2).W/8 Cylinder W/4-Barrel Carburetor:
