Air Conditioning & Heater Wiring
Air Conditioning & Heater Wiring

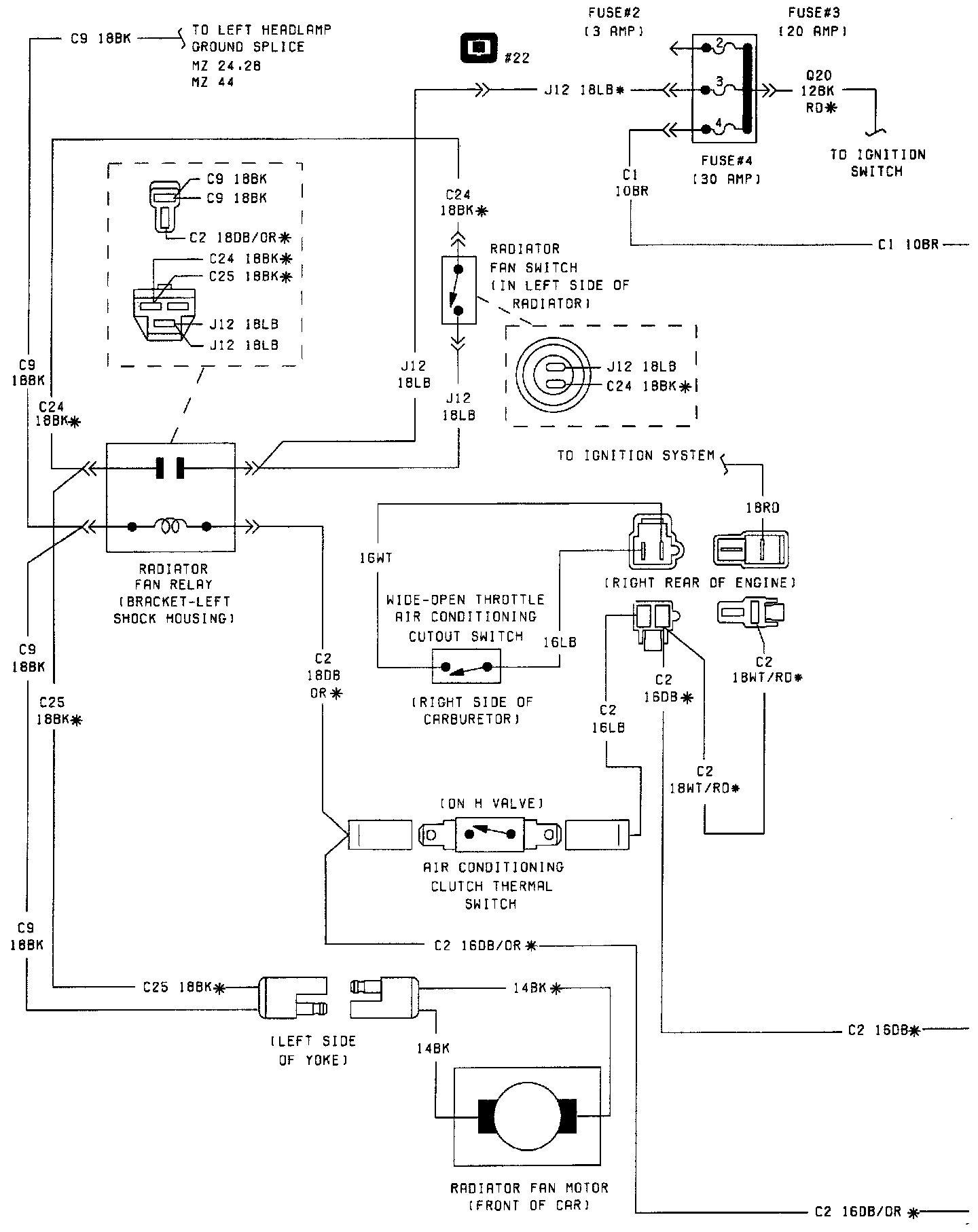

Air Conditioning/Heater System (Part 1 Of 3):

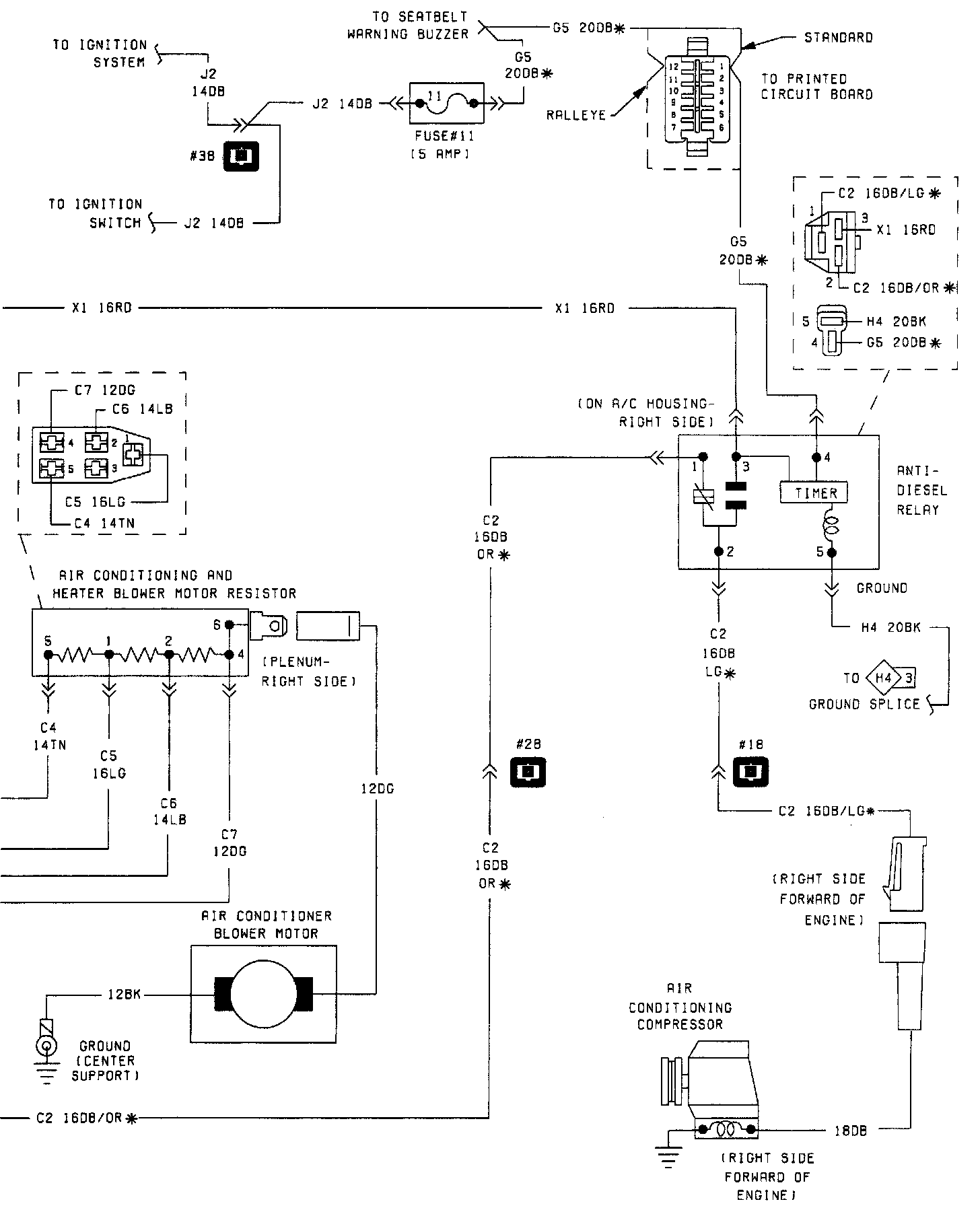

Air Conditioning/Heater System (Part 2 Of 3):

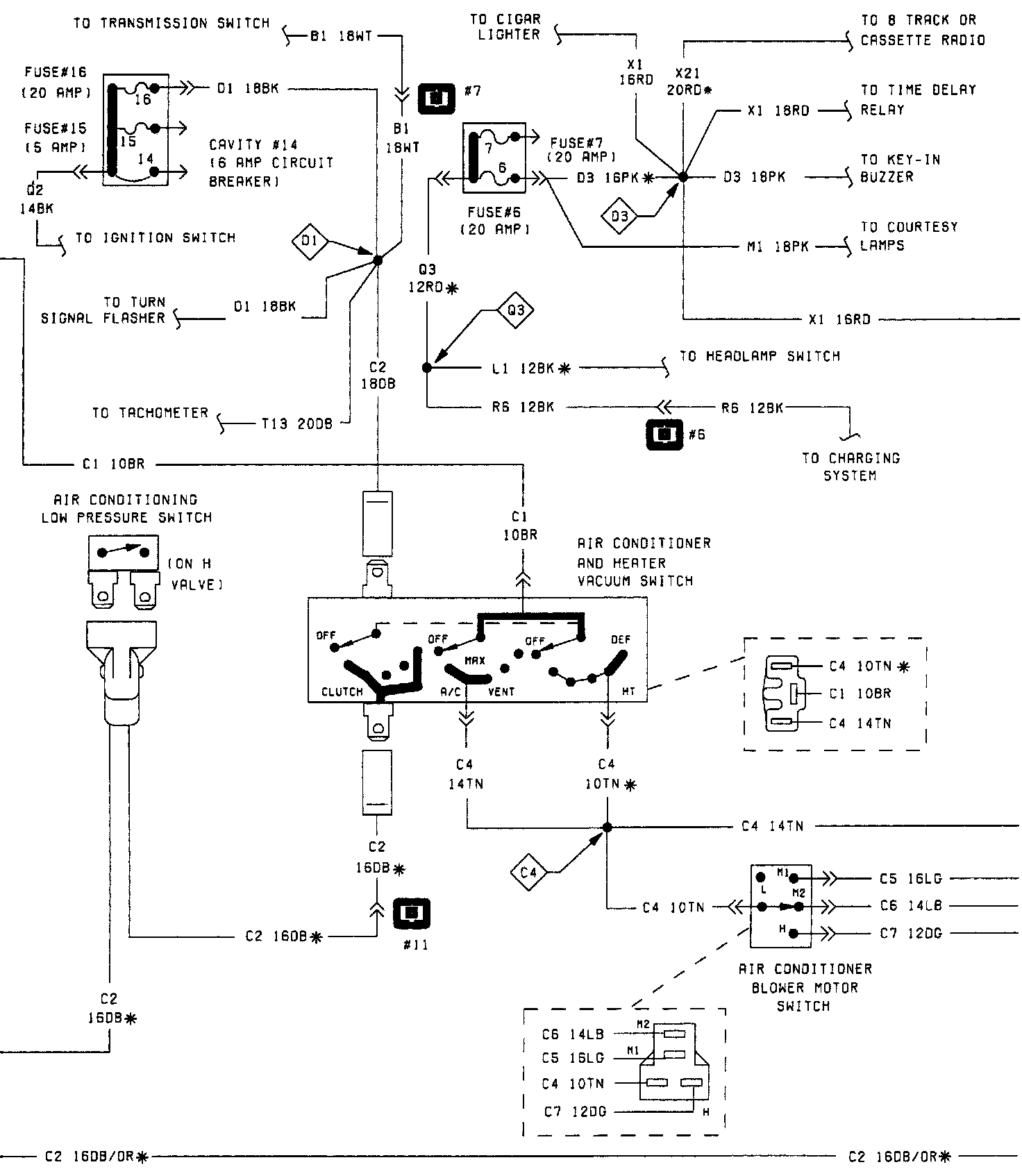

Air Conditioning/Heater System (Part 3 Of 3):
