Audible Warning Device Control Module
Audible Warning Device Control Module

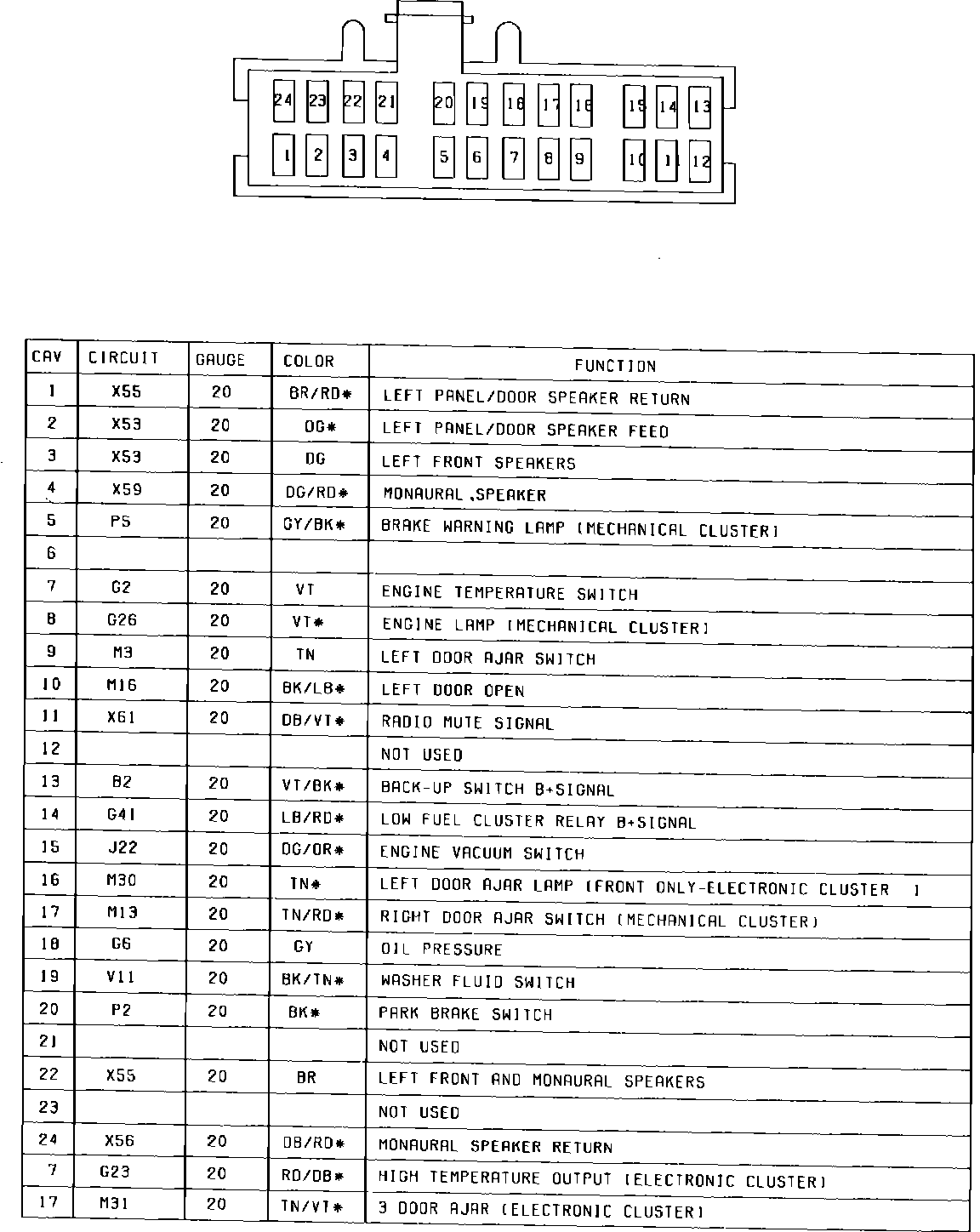

Fig. 7 Electronic Voice Alert System Connector. 1985:
