Home >> Plymouth >> 1985 >> Caravelle L4-156 2.6L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Front End Lighting >> With Feedback Carburetor

With Feedback Carburetor

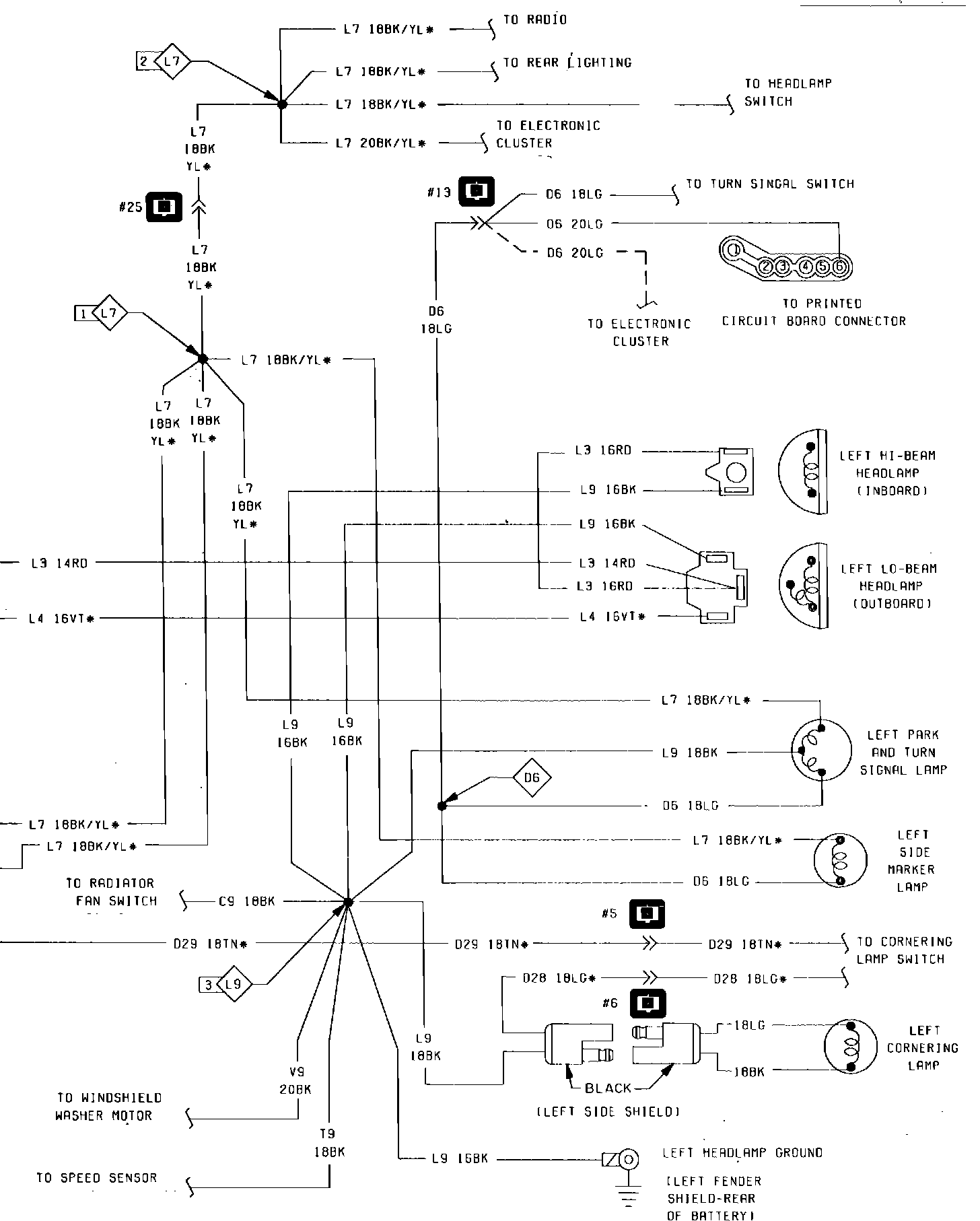

Fig. 44 Front End Wiring Circuit (Part 1 of 2). 1985 W/2.6 Litre Engine W/Feedback:

Fig. 44 Front End Wiring Circuit (Part 2 of 2). 1985 W/2.6 Litre Engine W/Feedback:
