Pinout Values and Diagnostic Parameters

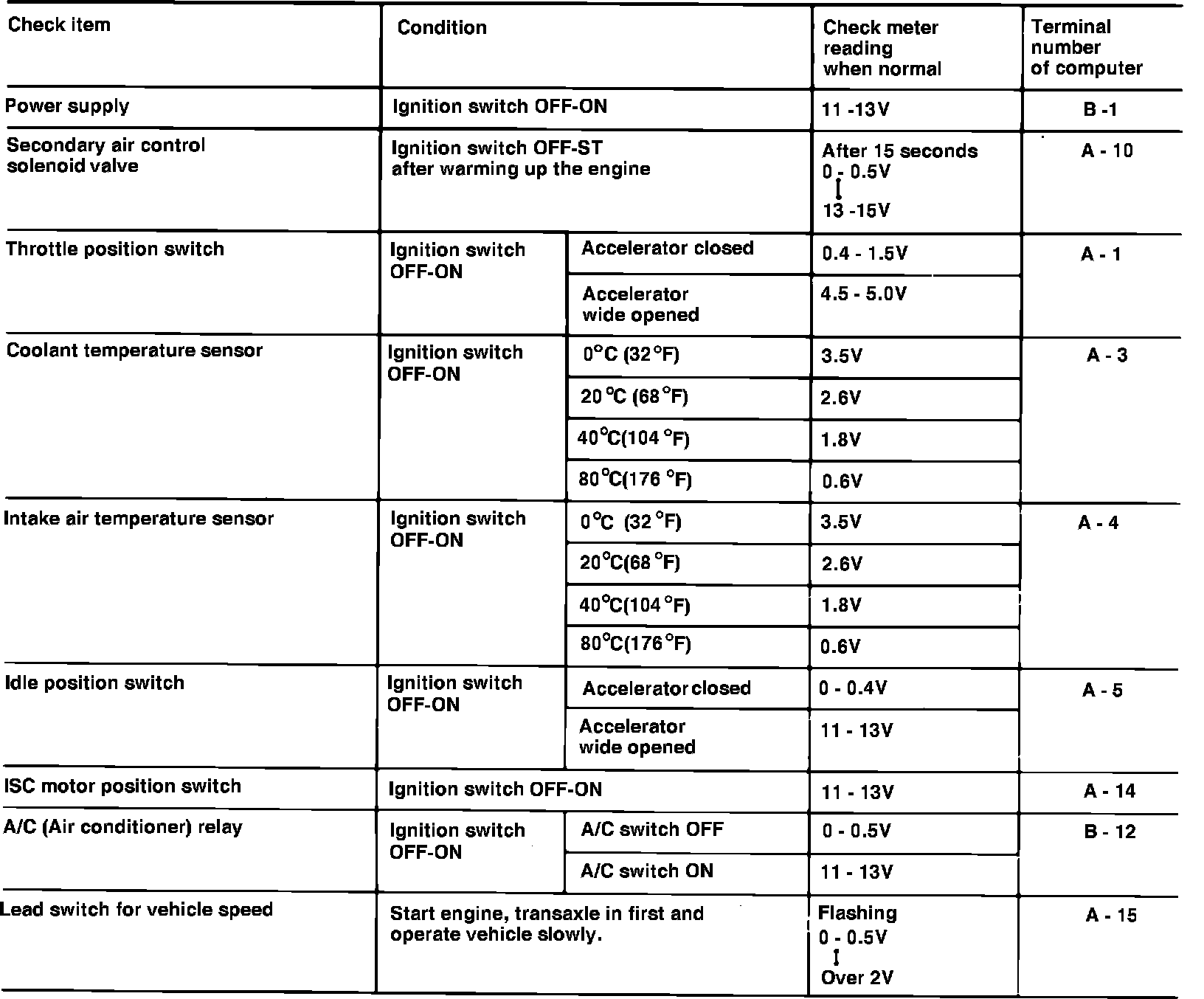

Fig. 14a Output signal diagnosis chart (Part 1 of 2). 1985-86 Colt & 1985 Conquest:



Fig. 14b Output signal diagnosis chart (Part 2 of 2). 1985-86 Colt & 1985 Conquest:
