Fast Idle Adjustment

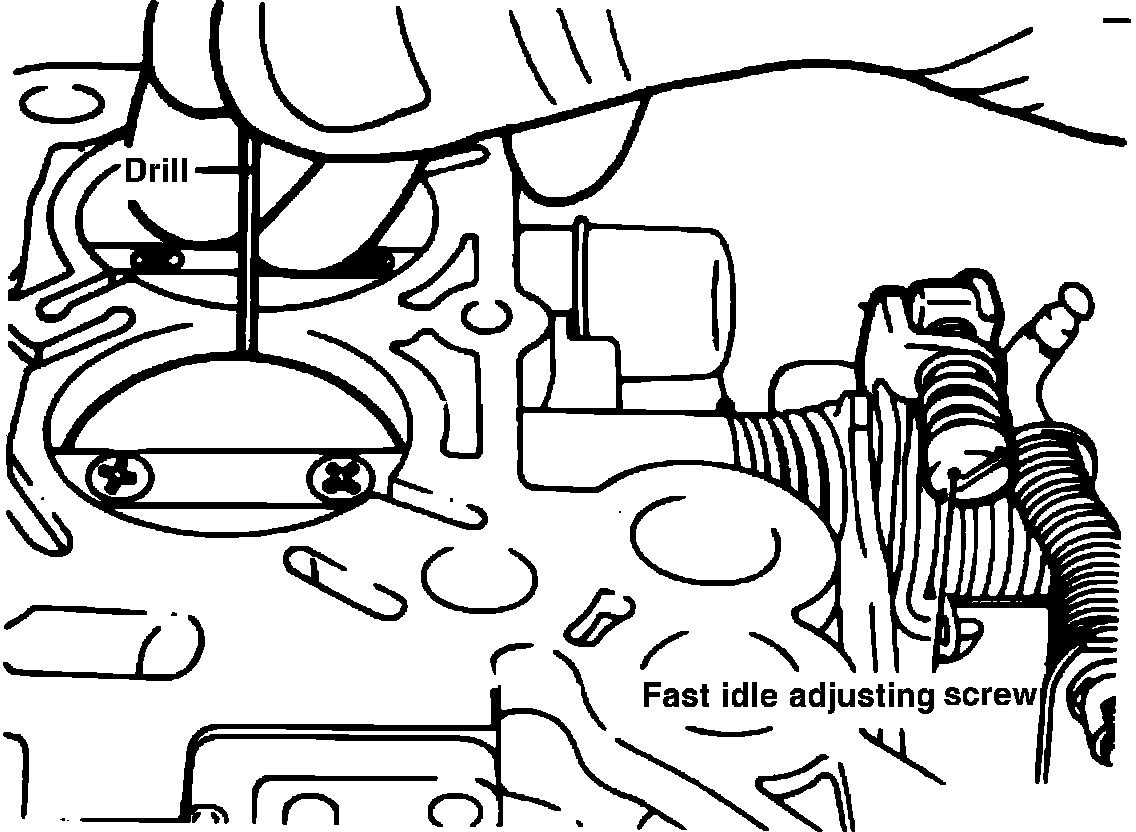

Fig. 18 Fast idle opening adjustment:

1985-86
1. Ensure carburetor is at room temperature.
2. Adjust fast idle opening by turning adjusting screw as necessary, Fig. 18. Adjust opening to .25 inch on 2000cc engine with manual transaxle, .031 inch on 2600cc engine with automatic transaxle or .028 on other models.
