Colt Vista 4WD L4-1997cc 2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
System Diagram
>>
EGR Schematic
EGR Schematic

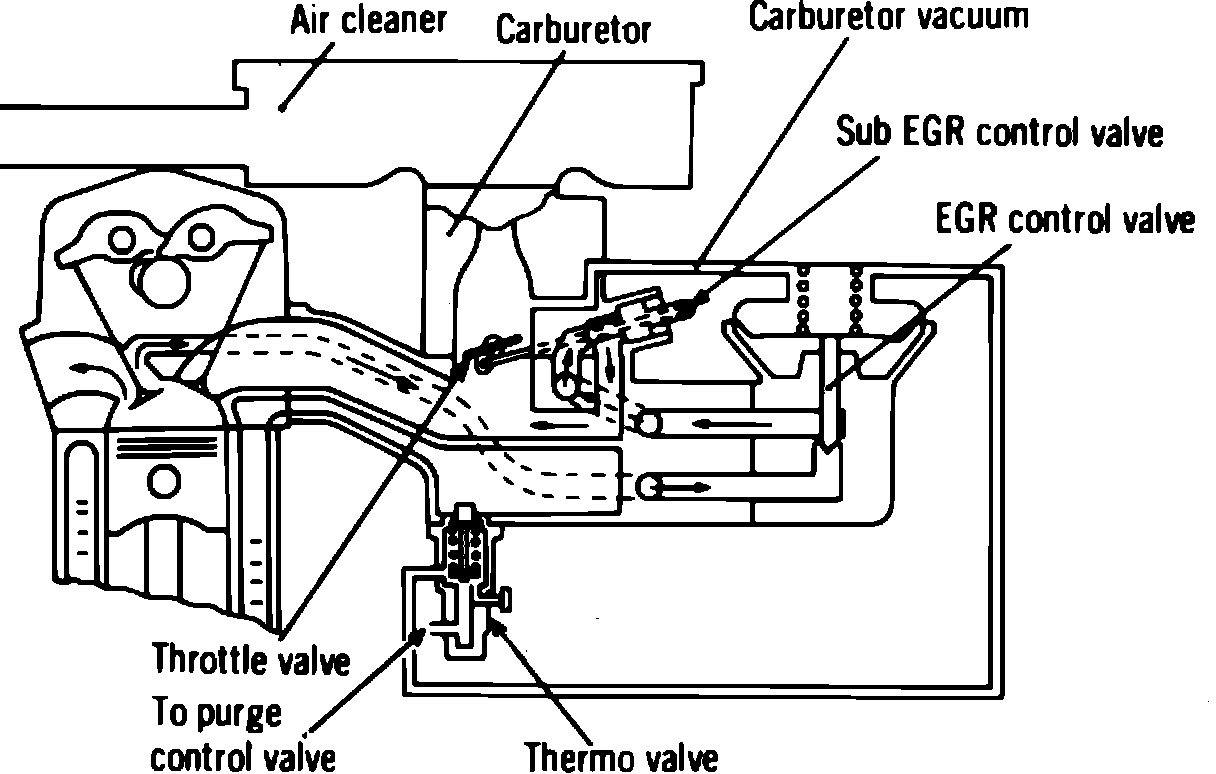

Fig. 10 EGR system. 1984-86 Colt & Colt Hatchback & 1985-88 Colt Vista exc. models w/EFI & turbocharger:
