Home >> Plymouth >> 1985 >> Reliant L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Rear Lighting >> Except Station Wagon

Except Station Wagon

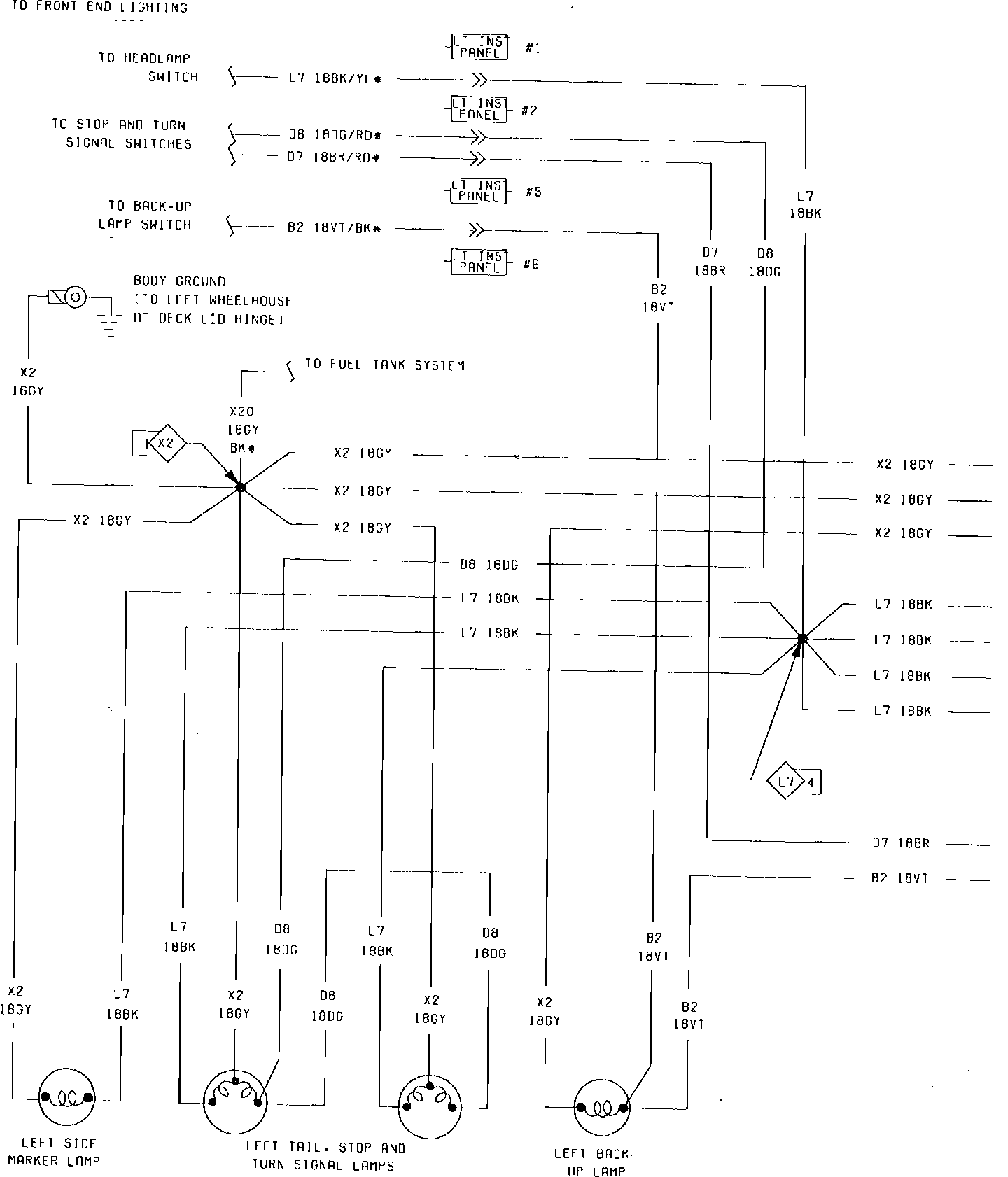

Fig. 46 Rear Lighting Wiring Circuit (Part 1 of 2 ). 1985 Except Wagon:

Fig. 46 Rear Lighting Wiring Circuit (Part 2 of 2 ). 1985 Except Wagon:
