System Diagram

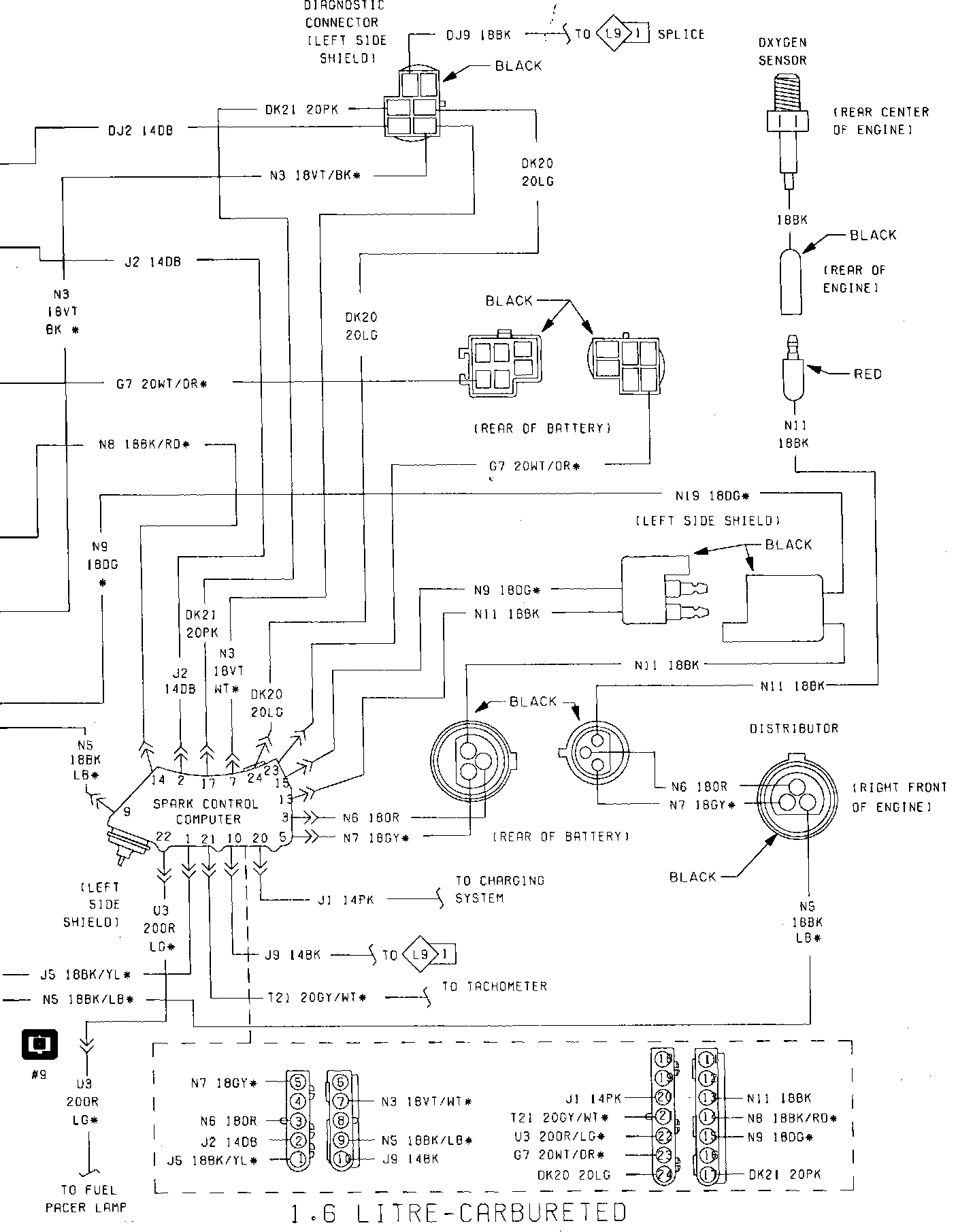

Fig. 18 Electronic Spart Advance Wiring Circuit. 1985 1.6 Litre Engine:

Fig. 18 Electronic Spark Advance Wiring Circuit. 1985 1.6 Litre Engine:
