Plymouth
>>
1986
>>
Caravelle L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
Instrument Panel Circuit Board

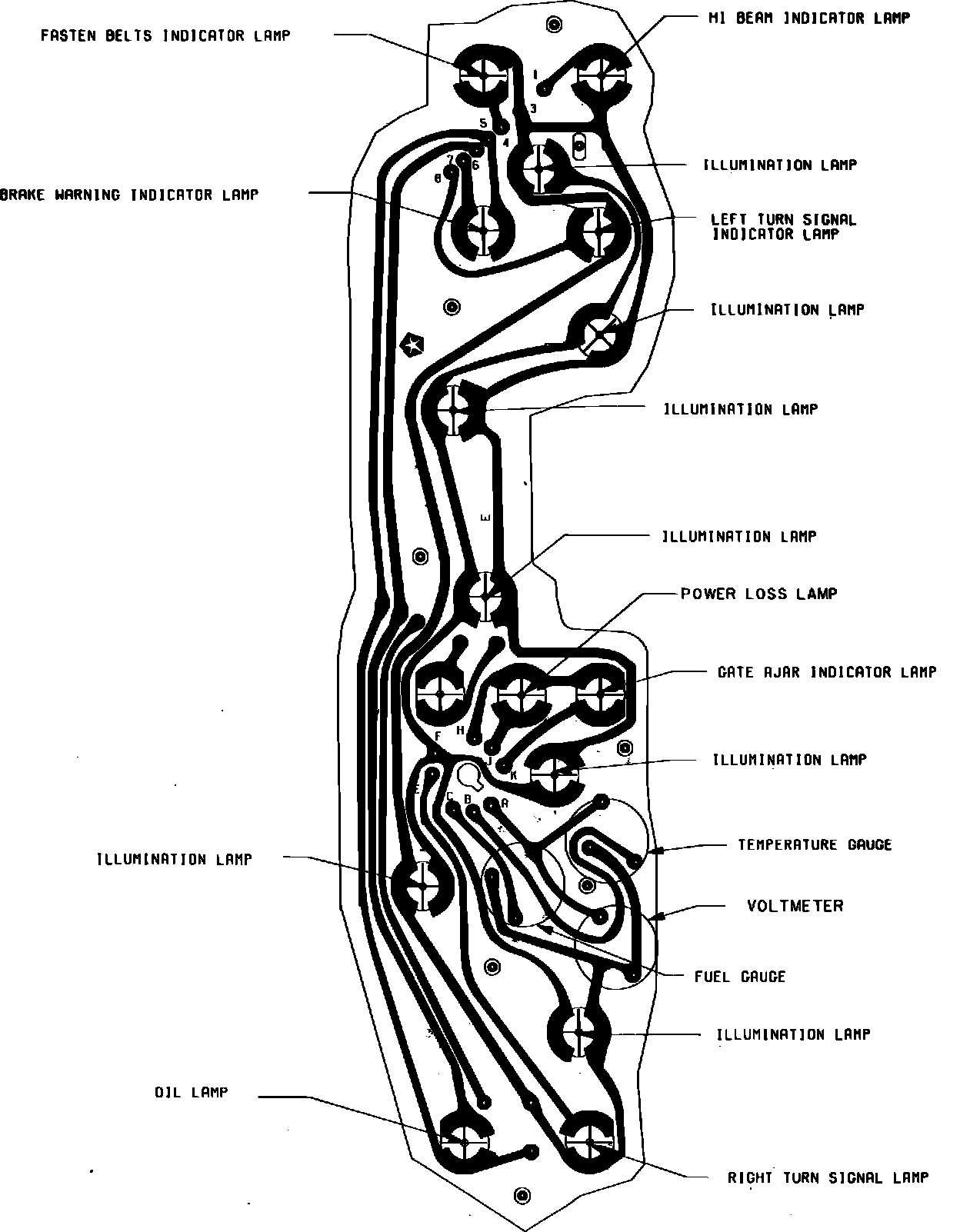

Fig. 2 Printed Circuit Board:
