Illuminated Entry System
Illuminated Entry System

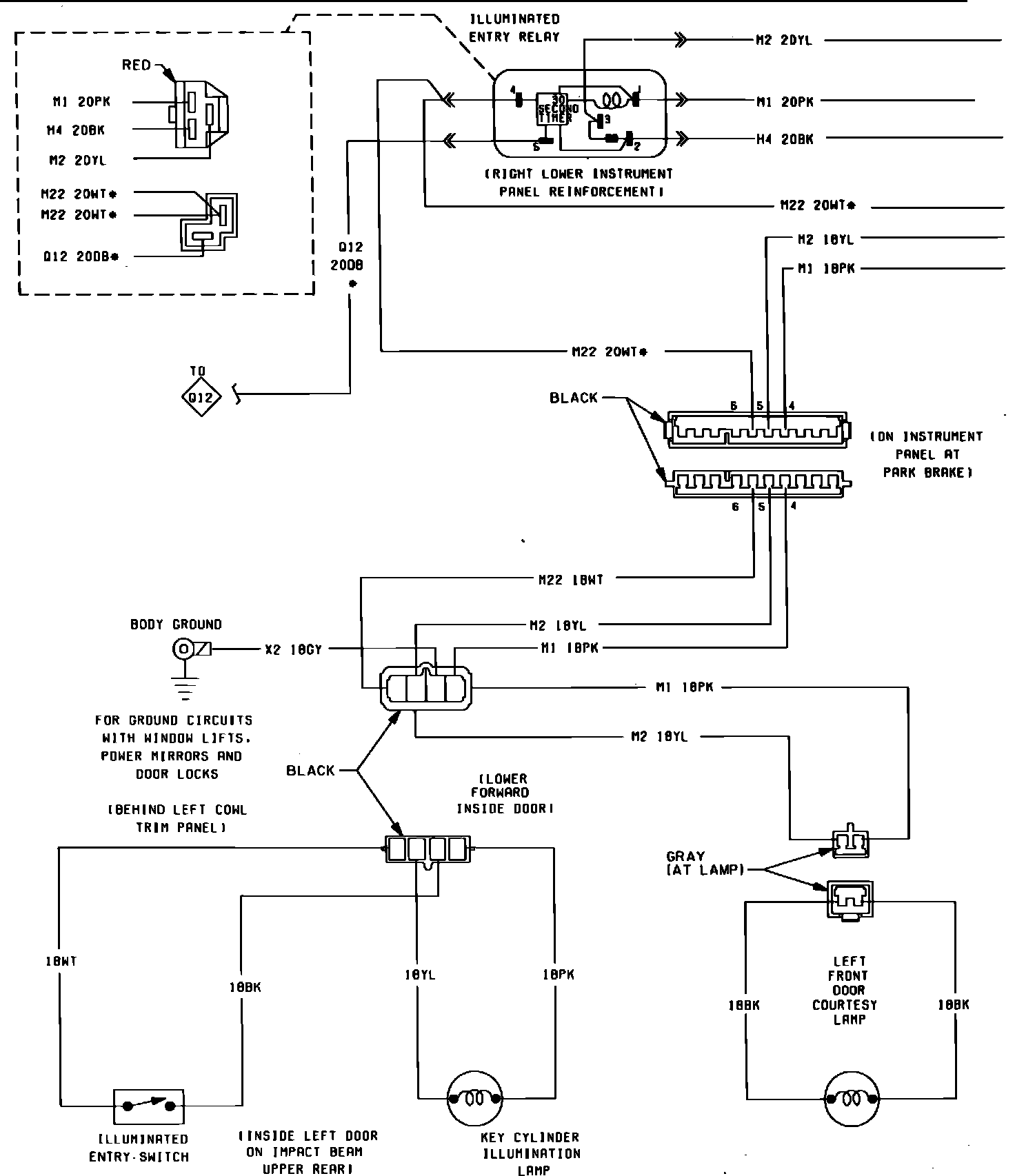

Fig. 42 Illuminated Entry System Wiring Circuit (Part 1 of 2):
