System Diagram
>>
Fuel Tank System Wiring Circuit
Fuel Tank System Wiring Circuit

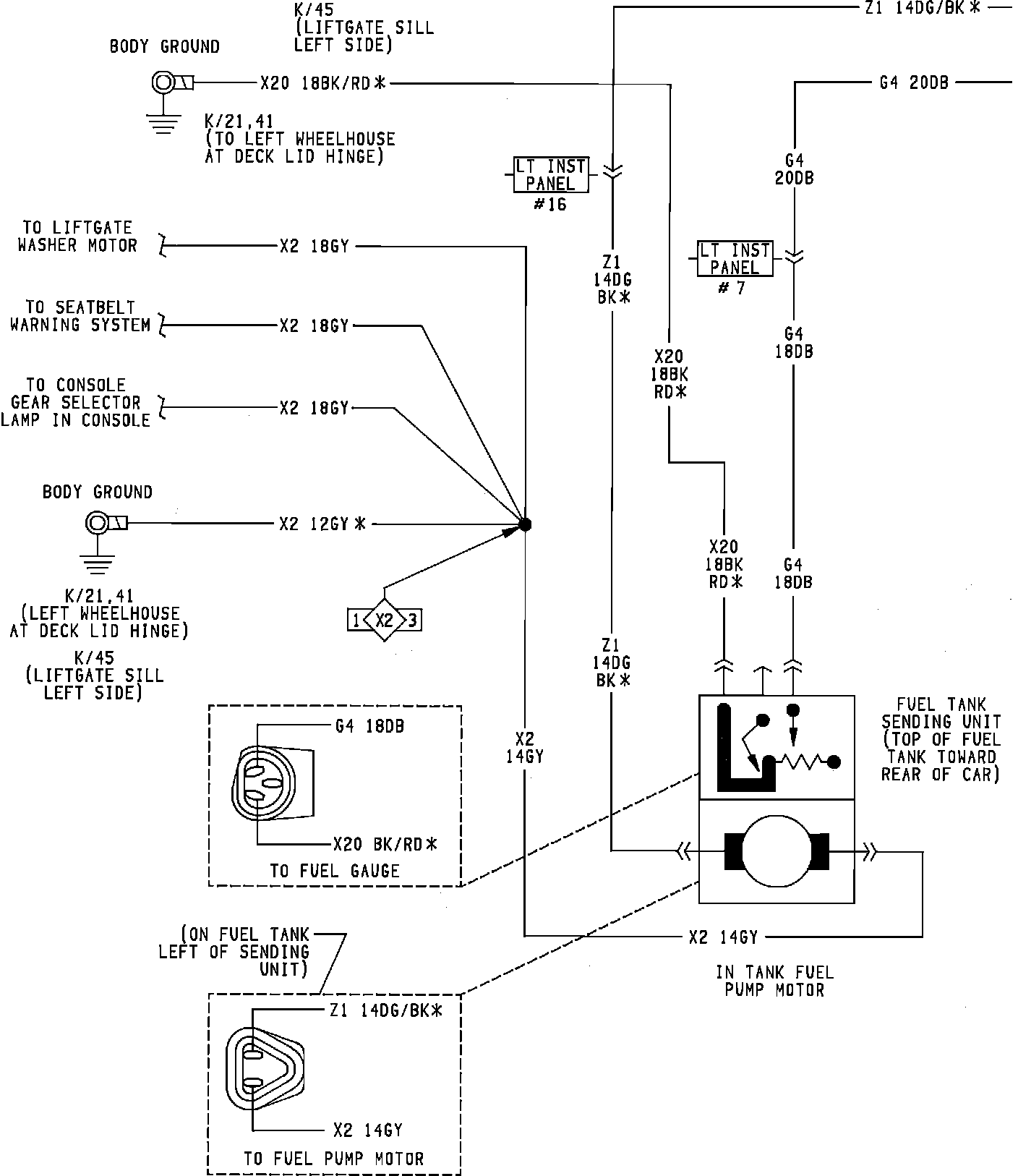

Fuel Tank System Wiring Circuit:
Fuel Tank System Wiring Circuit:
