Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1990
>>
Colt Vista 4WD L4-1997cc 2.0L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>

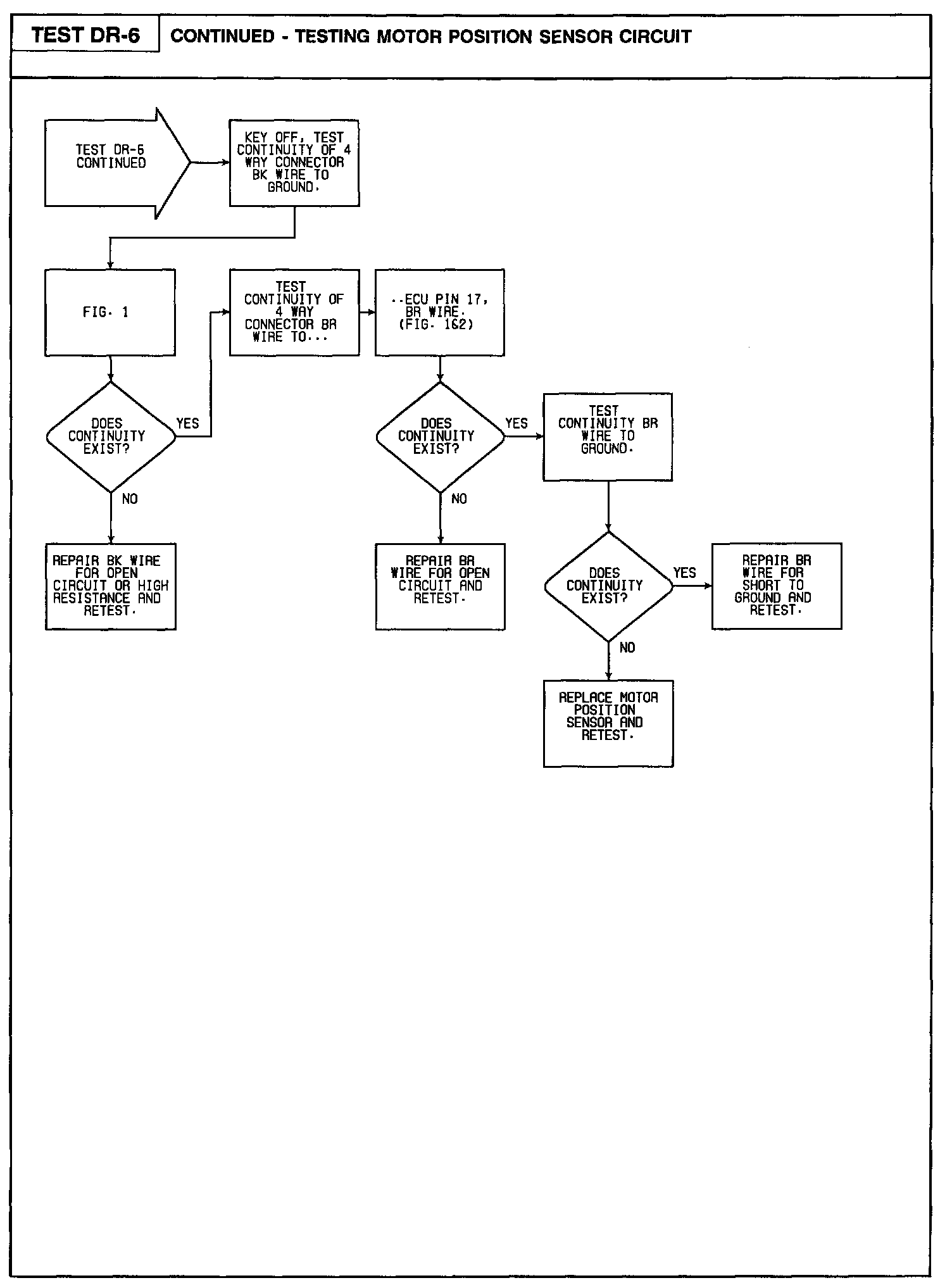

DR-6 Testing Motor Position Sensor Circuit
DR-6 Testing Motor Position Sensor Circuit
