Plymouth
>>
1990
>>
Colt Wagon 4WD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Backup Lamp
Backup Lamp

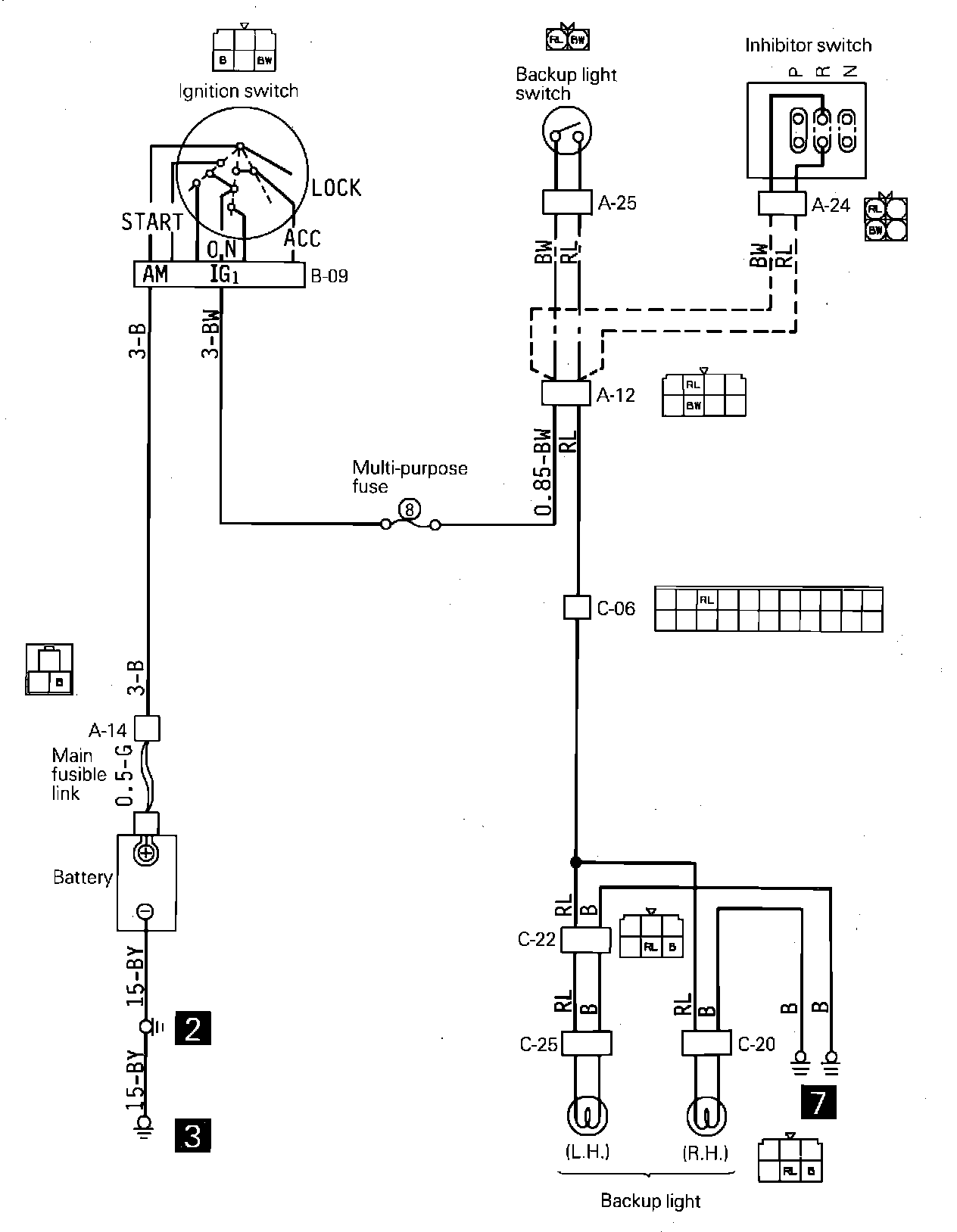

Backup Lamp:
