Home
>>
Plymouth
>>
1990
>>
Colt Wagon 4WD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

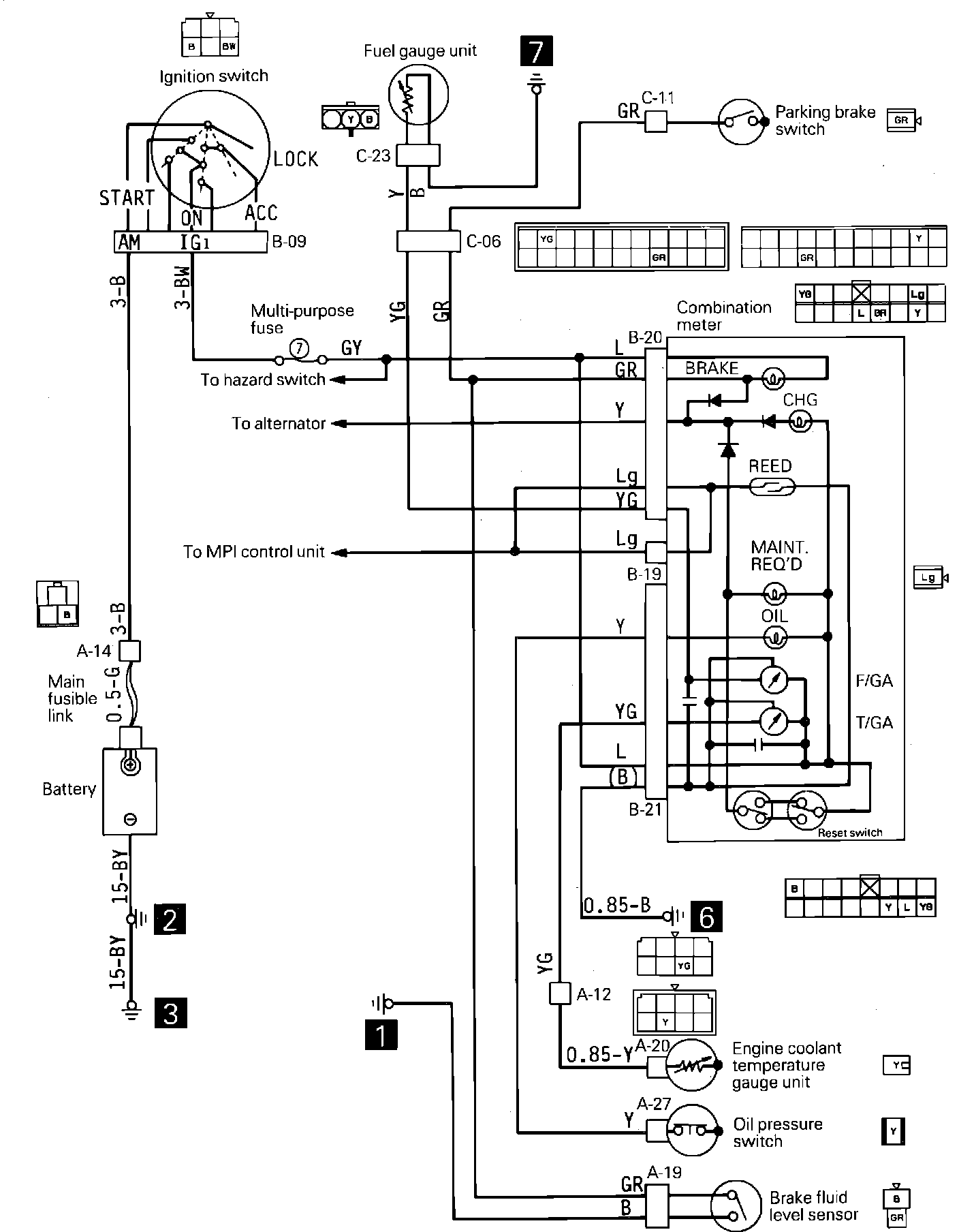

Instrument Panel (Gauges & Meters):
