Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1990
>>
Colt Wagon 4WD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

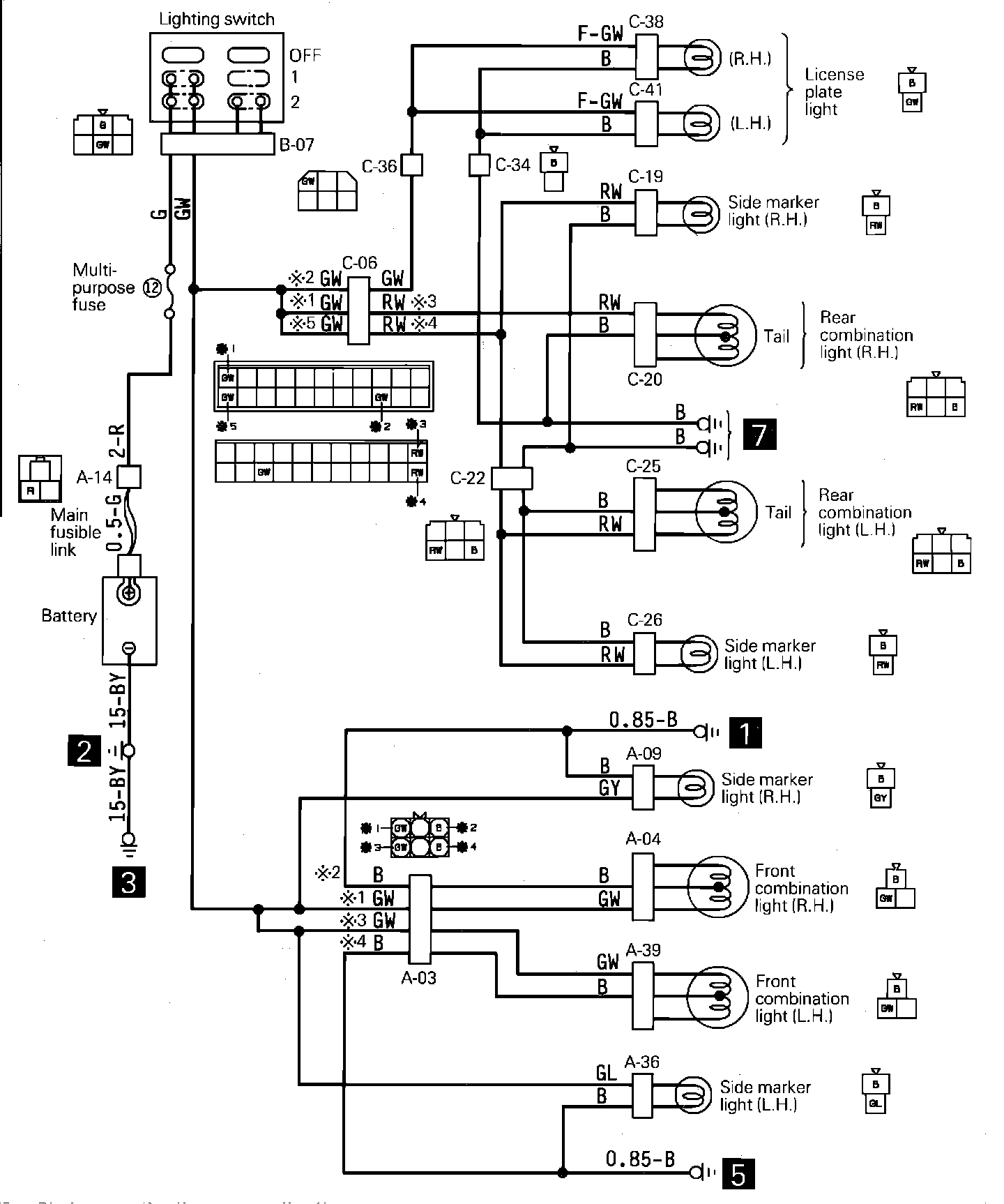

License Plate, Position, Side Marker & Tail Lamp:
