Diesel Data: Automotive Repair
Home >> Plymouth >> 1992 >> Acclaim L4-153 2.5L SOHC VIN W >> Repair and Diagnosis >> Locations >> Splice Locations >> Engine Compartment Splices

Engine Compartment Splices

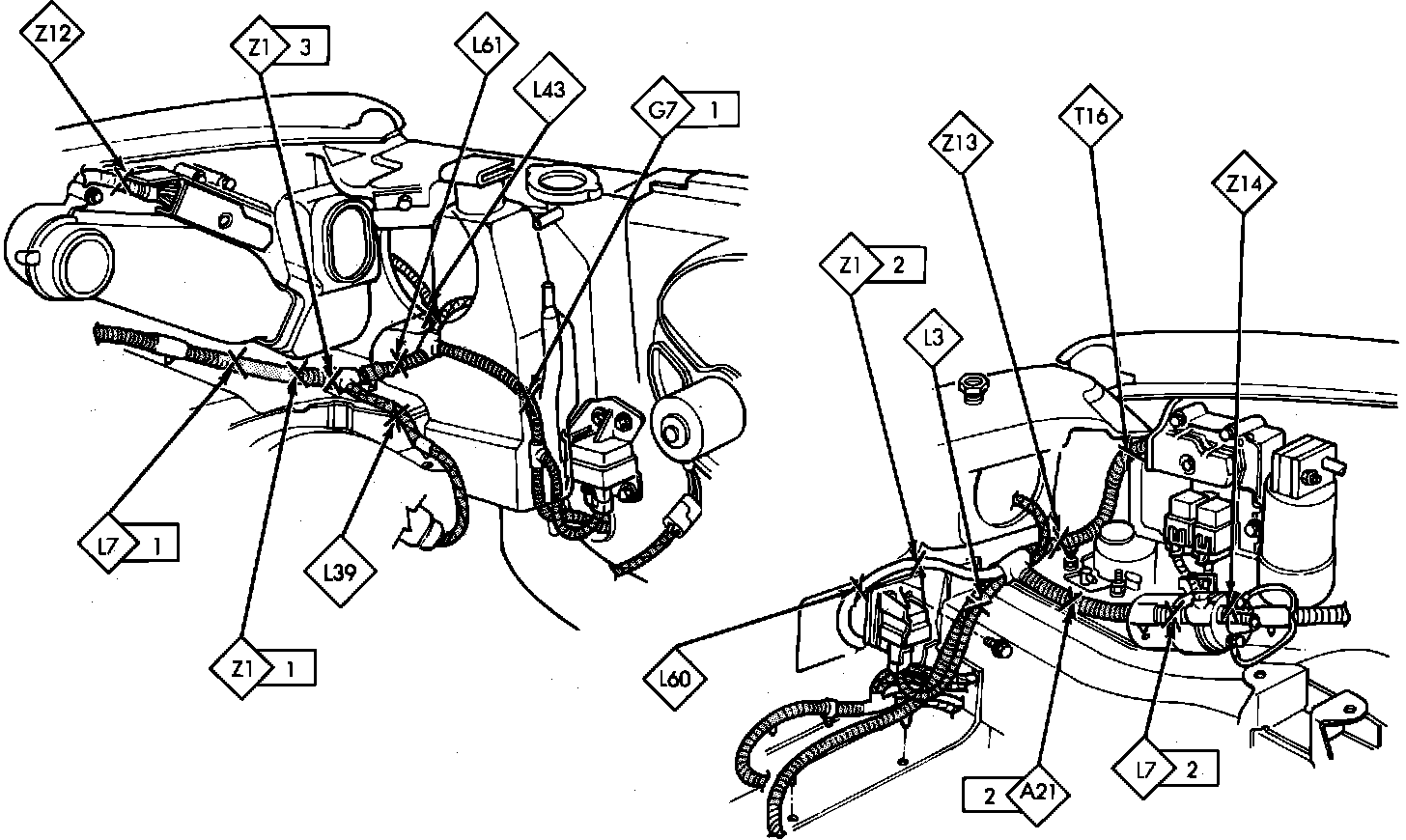

Engine Compartment Splices EFI And Turbo:

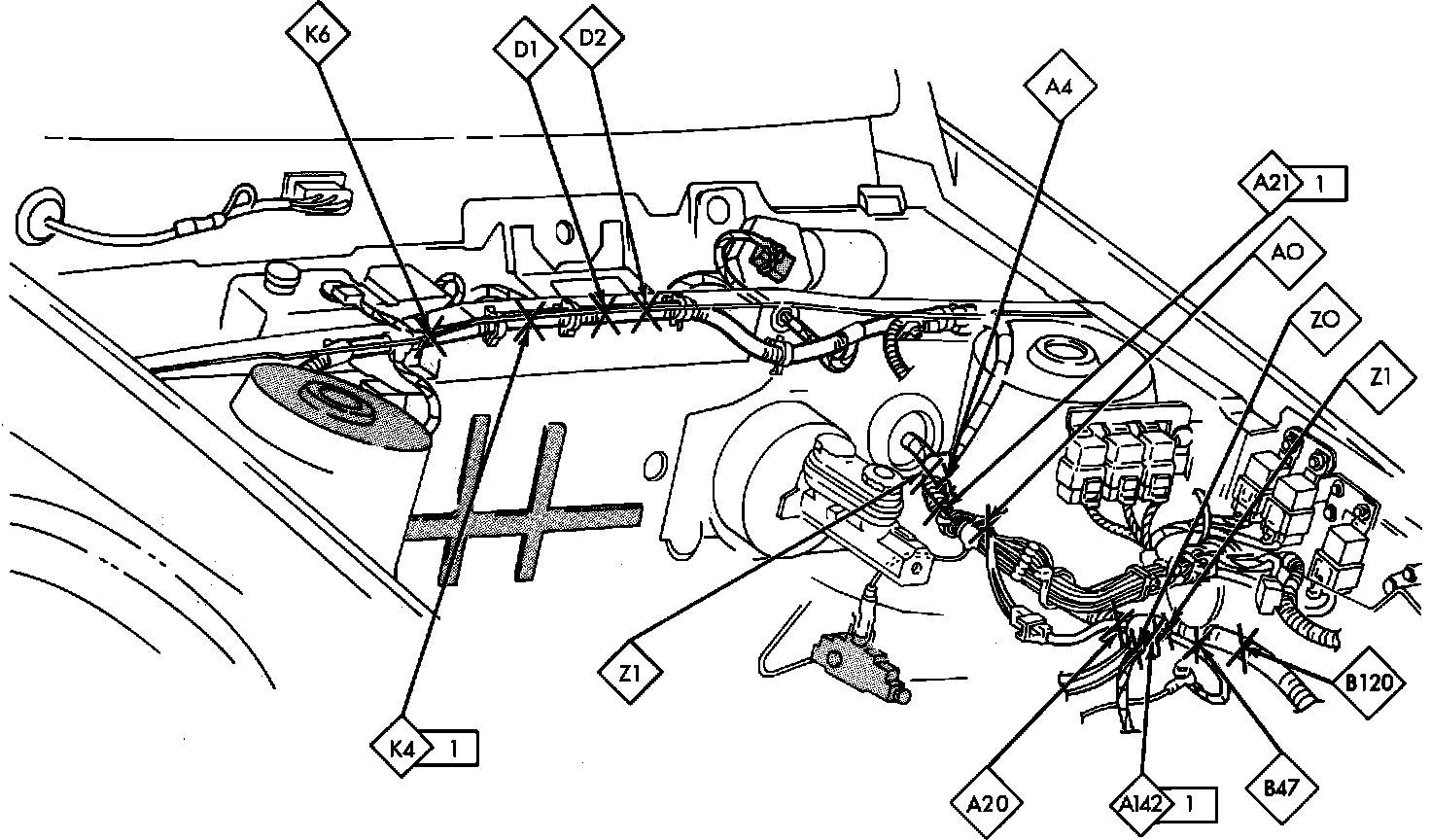

Engine Compartment Splices EFI And Turbo:
