Home >> Plymouth >> 1992 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Part 4 of 4

Part 4 of 4

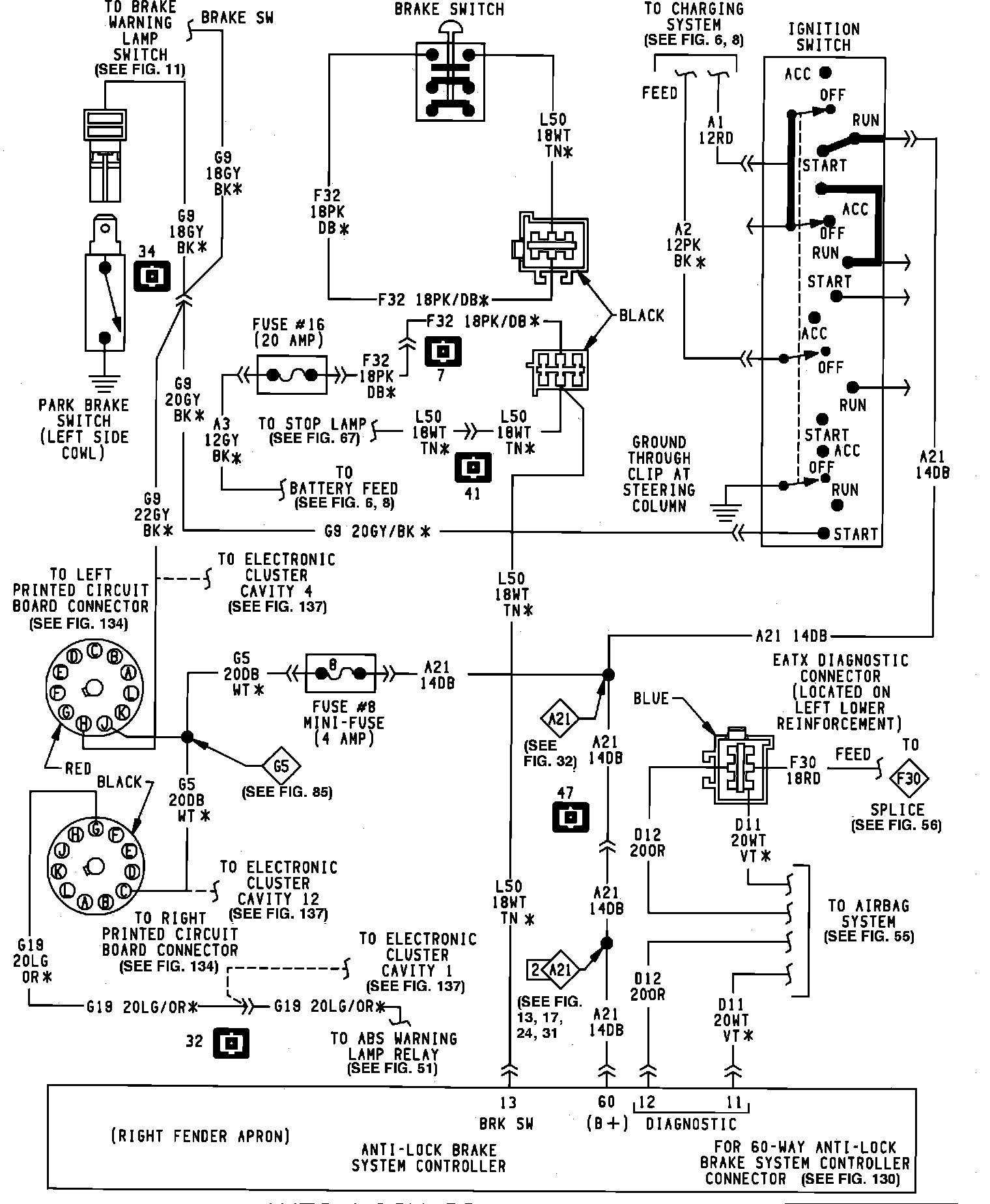

Anti-lock Brake System:
