Home >> Plymouth >> 1992 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 1 Thru 20 >> 19

1 Thru 20: 19

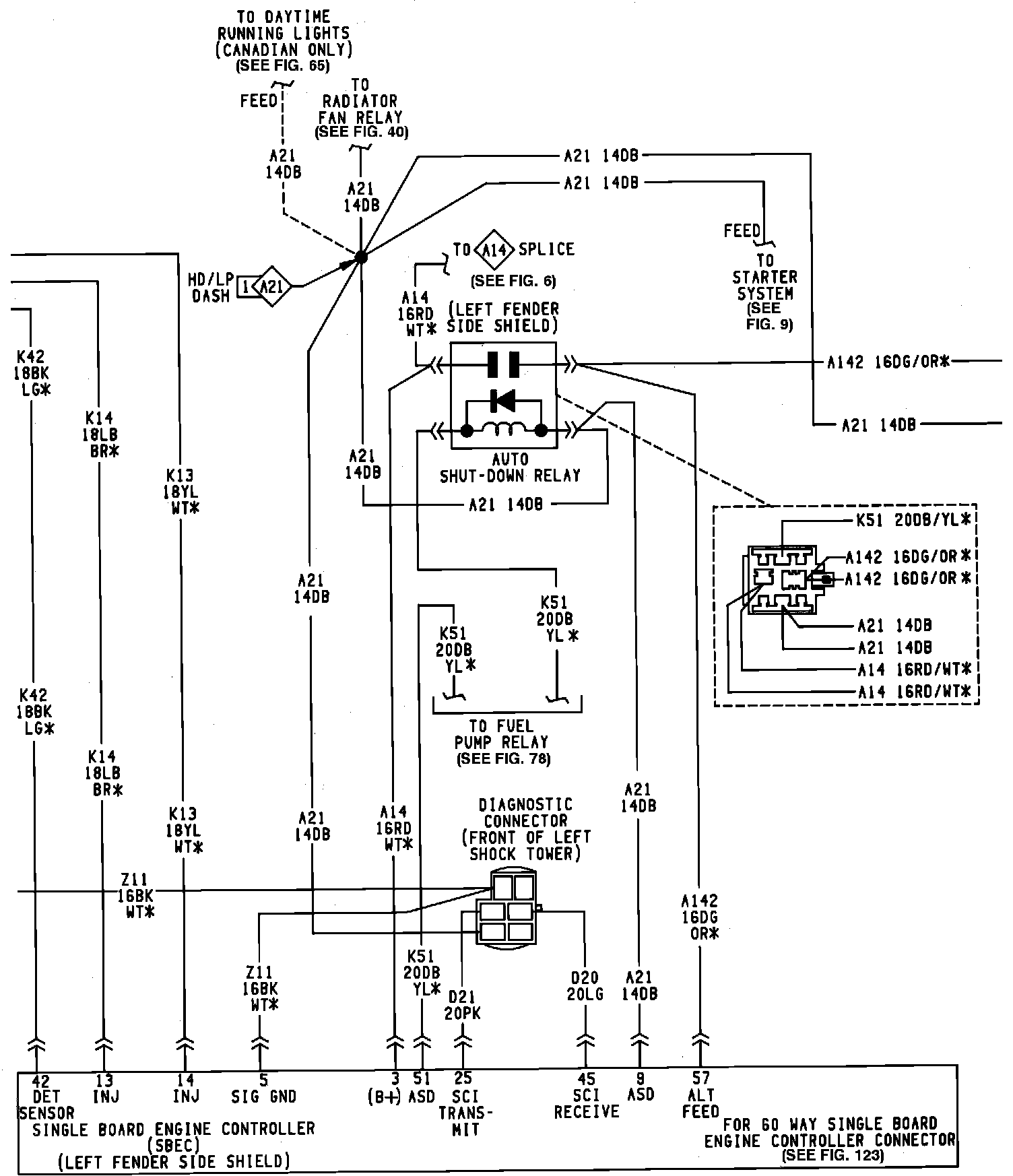

Turbocharged Electronic Fuel Injection Ignition System:
