Home >> Plymouth >> 1992 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 101 Thru 120 >> 104

101 Thru 120: 104

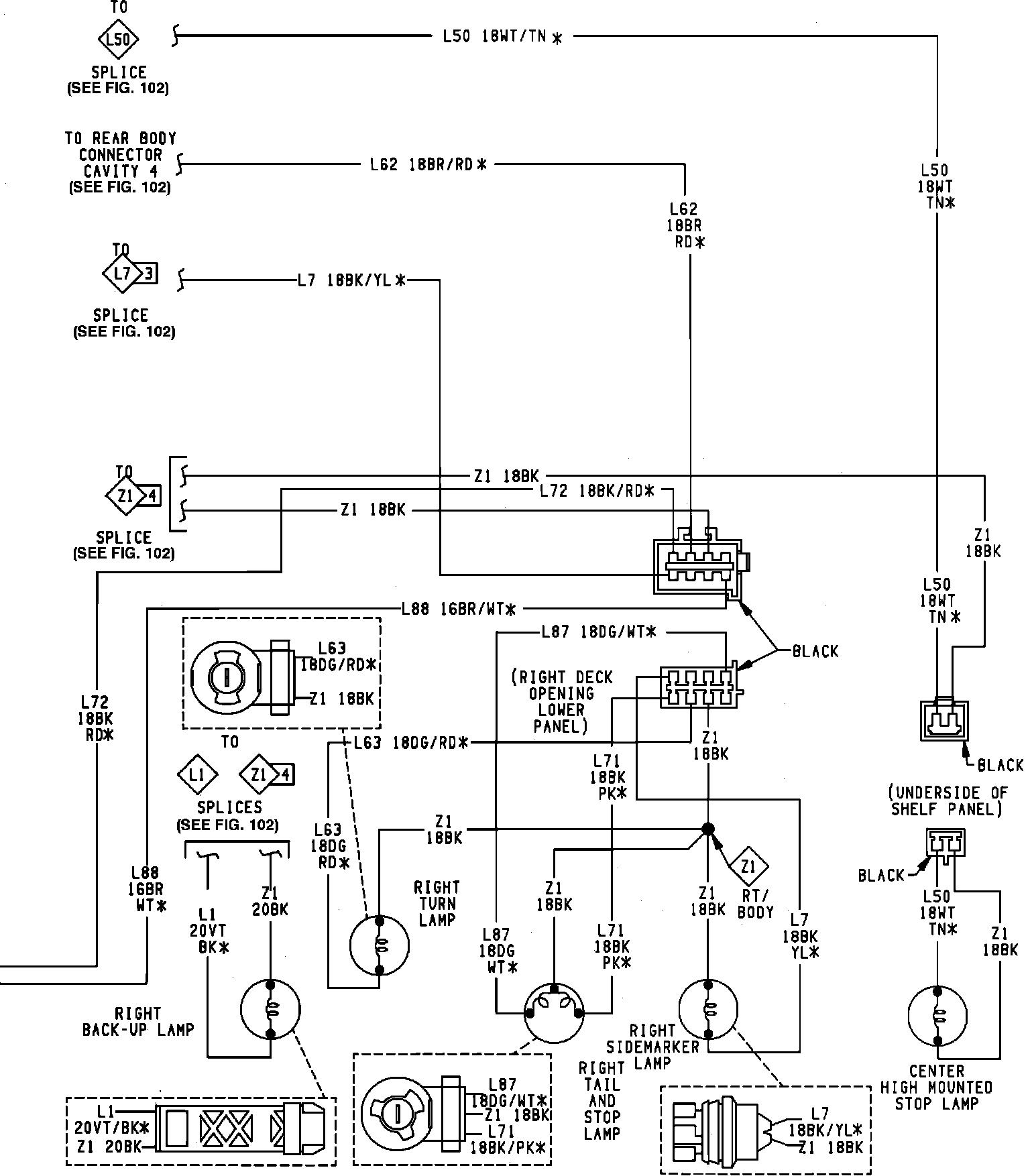

Rear End Lighting Without Lamp Outage -- Part 2:
