Diesel Data: Automotive Repair
Home >> Plymouth >> 1992 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 101 Thru 120 >> 113

101 Thru 120: 113

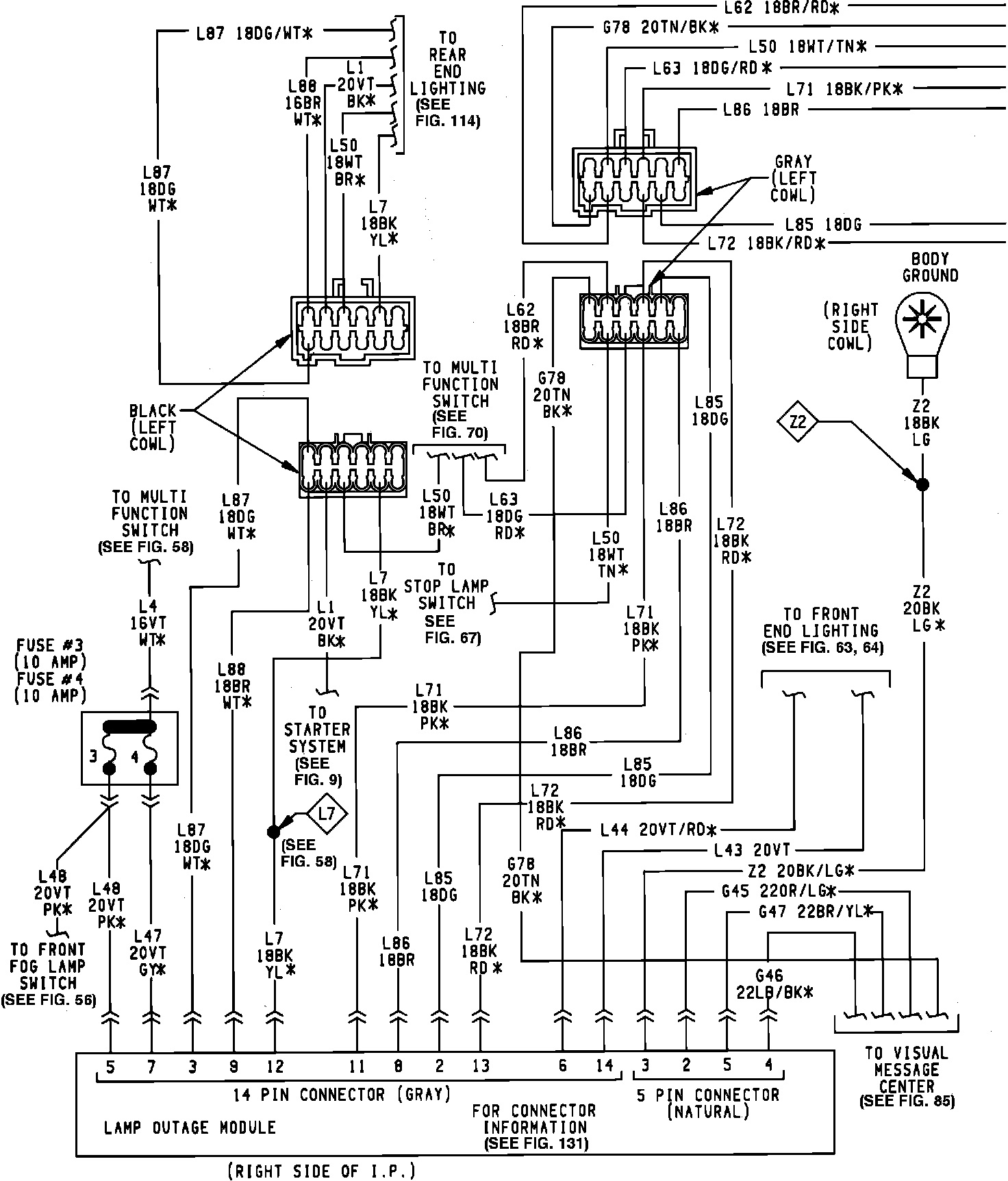

Rear End Lighting With Lamp Outage -- Part 1:
