Diesel Data: Automotive Repair
Home >> Plymouth >> 1992 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 41 Thru 60 >> 55

41 Thru 60: 55

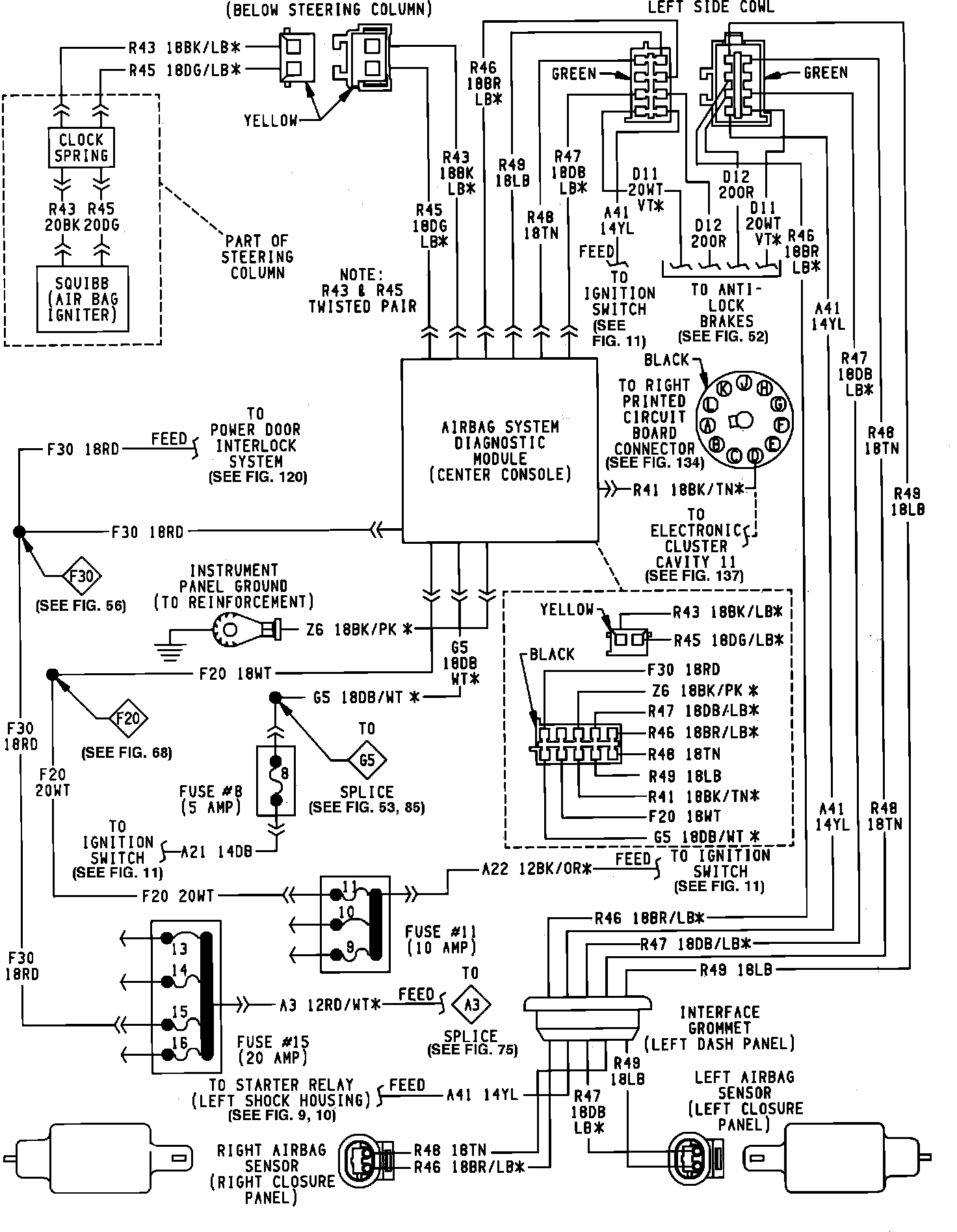

Airbag System:
