81 Thru 100: 85

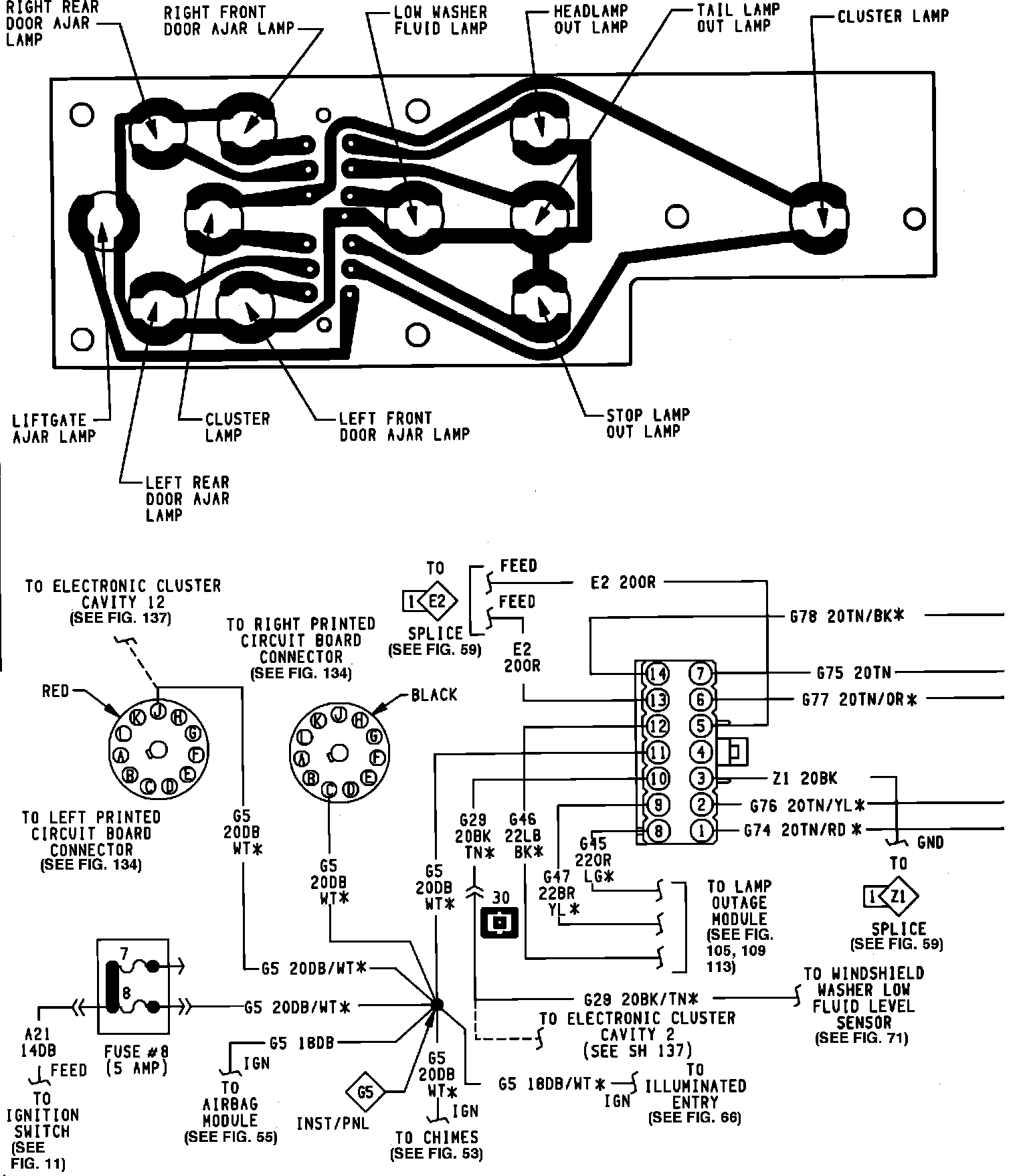

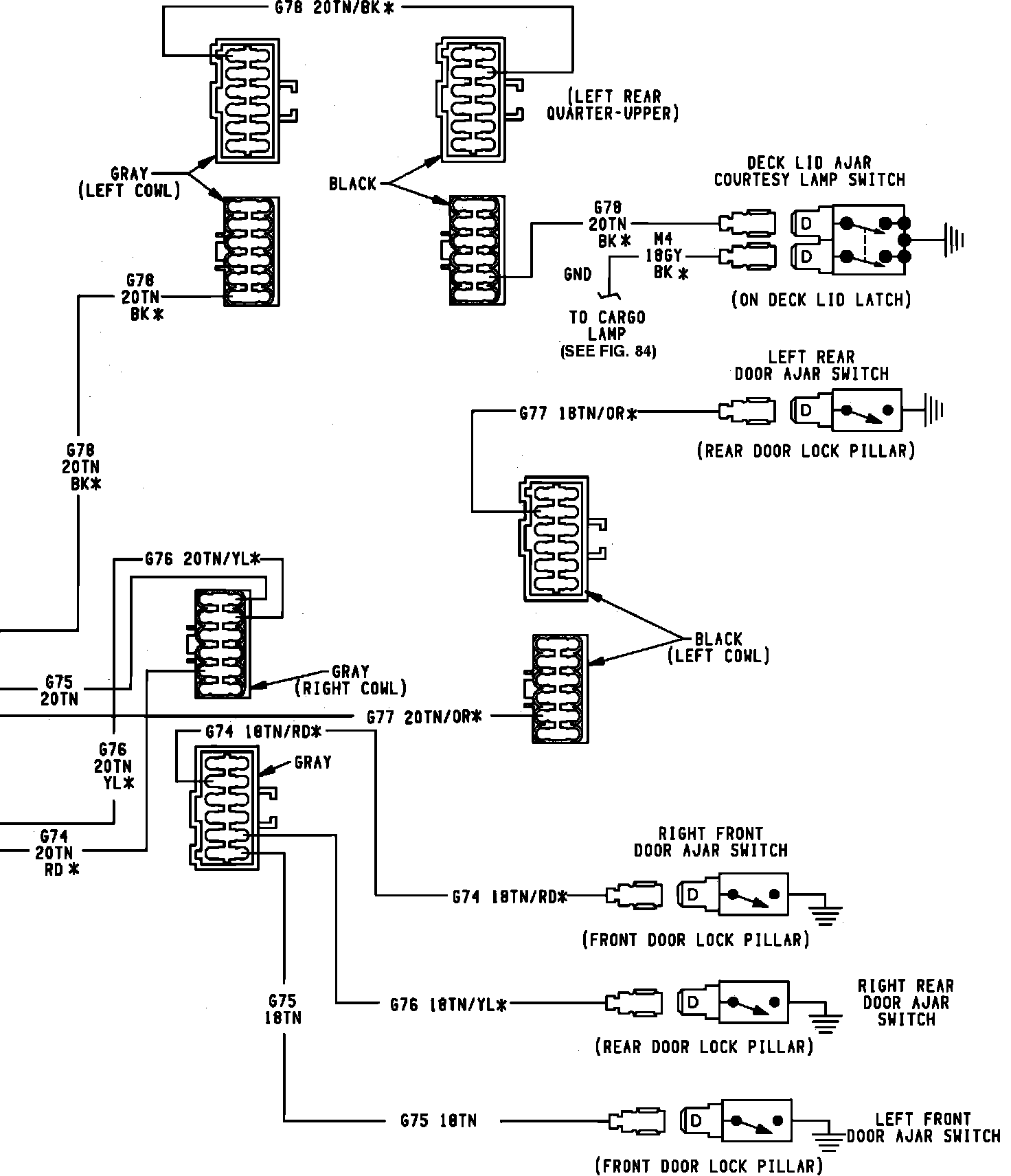

Visual Message Center & Door Ajar Switches:
Visual Message Center & Door Ajar Switches:
