Home >> Plymouth >> 1992 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 81 Thru 100 >> 97

81 Thru 100: 97

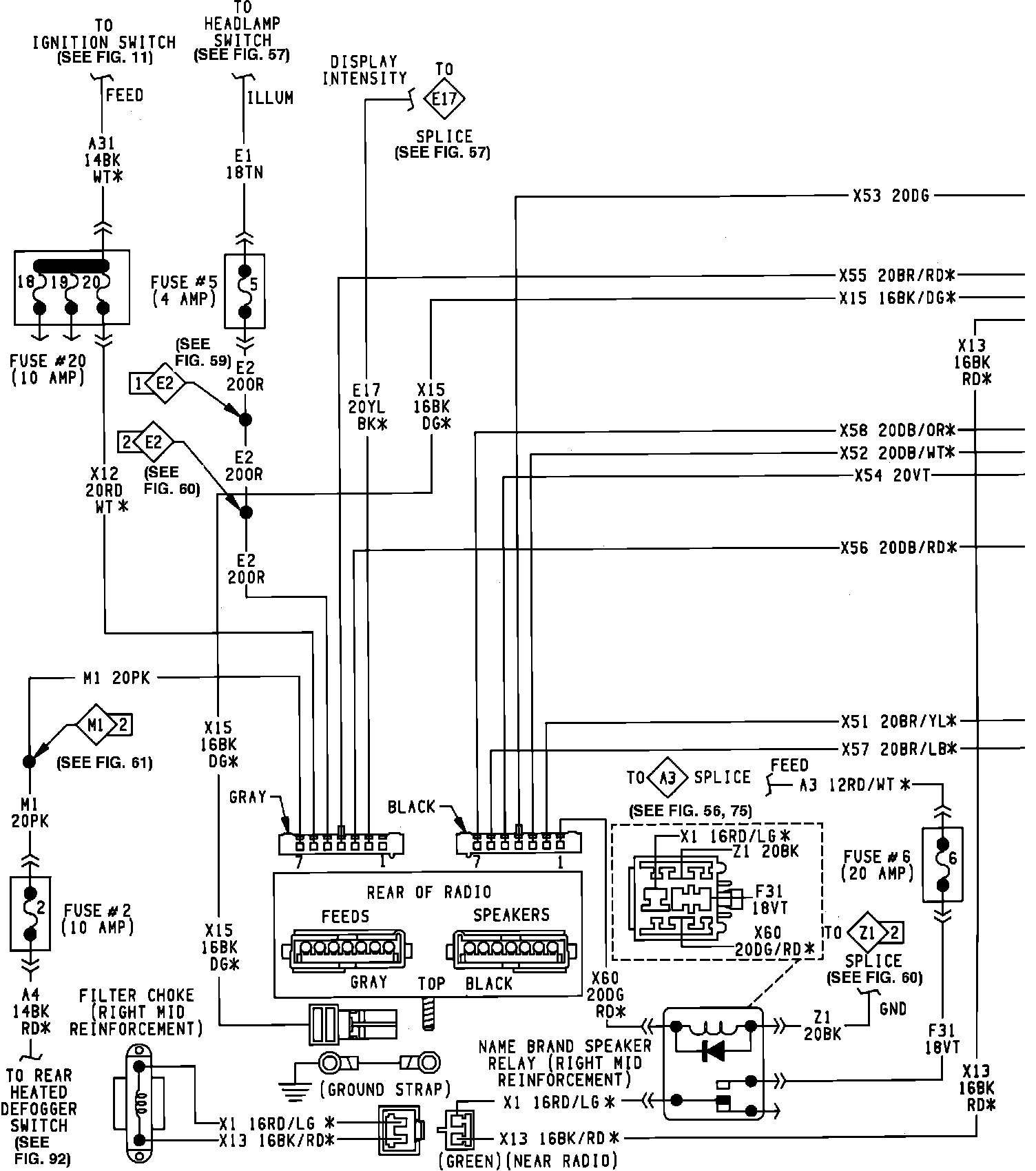

Electronically Tuned Stereo Radio With Name Brand Speakers:

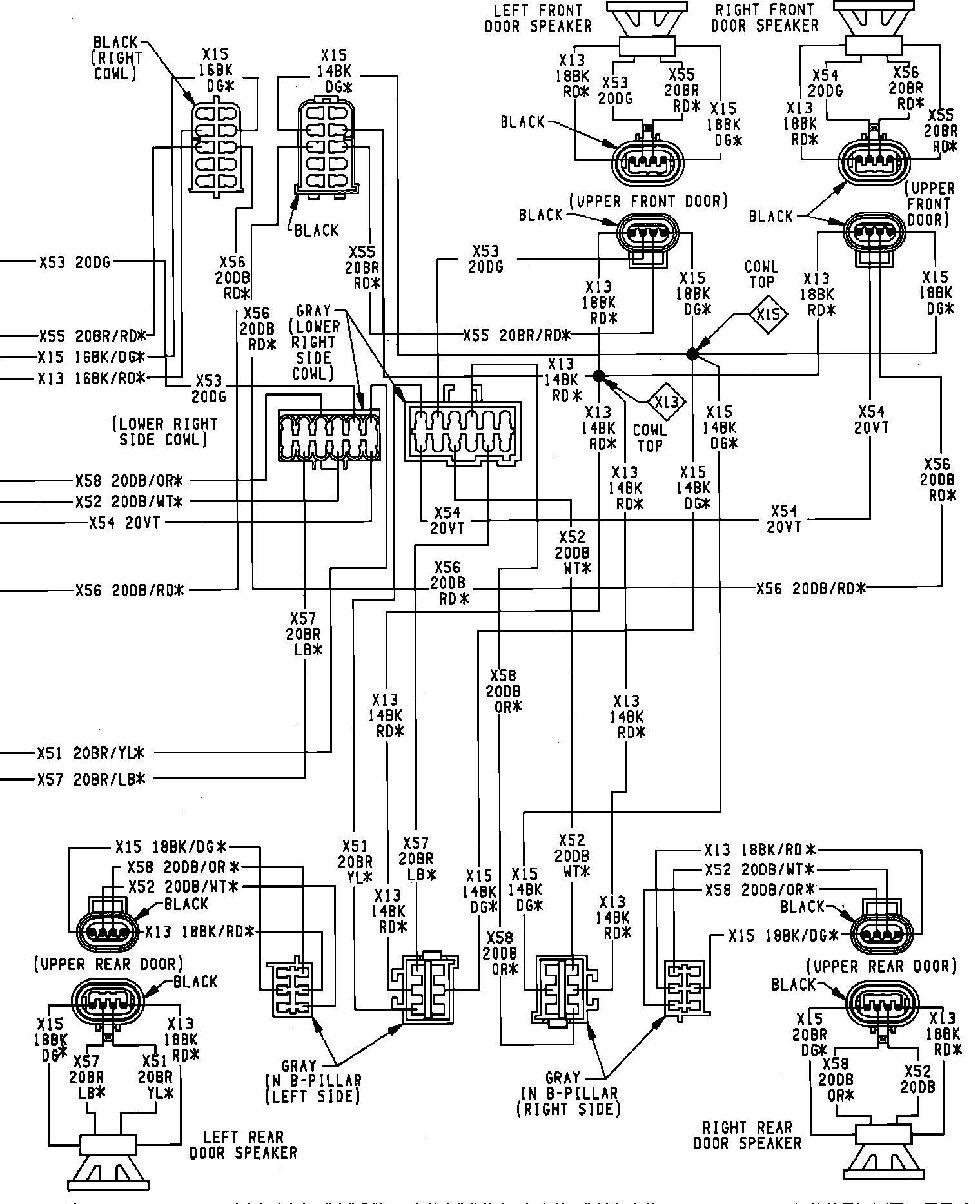

Speakers Front Door And Rear With Name Brand Speakers:
