Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1992
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
81 Thru 100
>>
99
81 Thru 100: 99

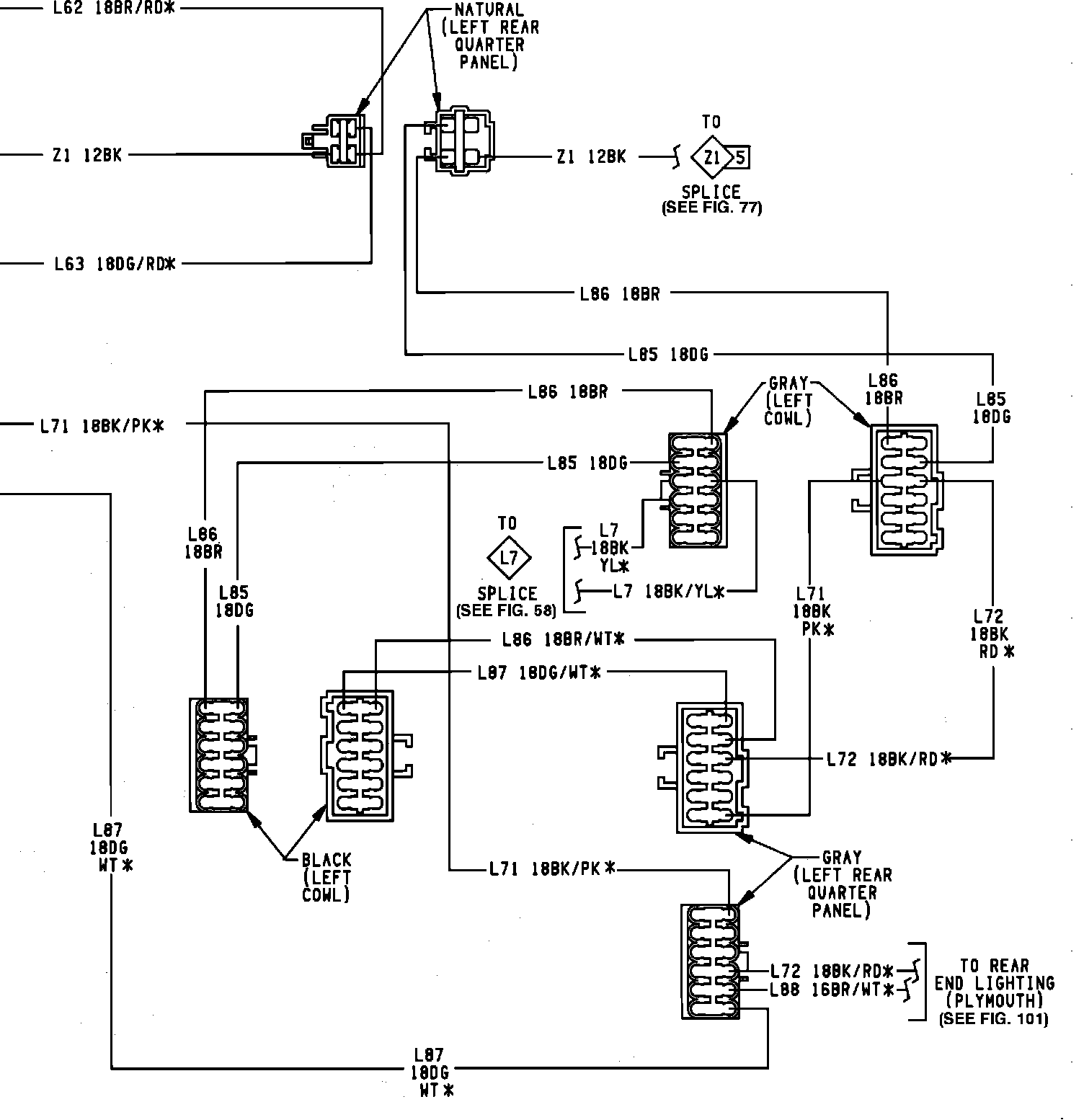

Rear End Lighting Without Lamp Outage -- Part 1:

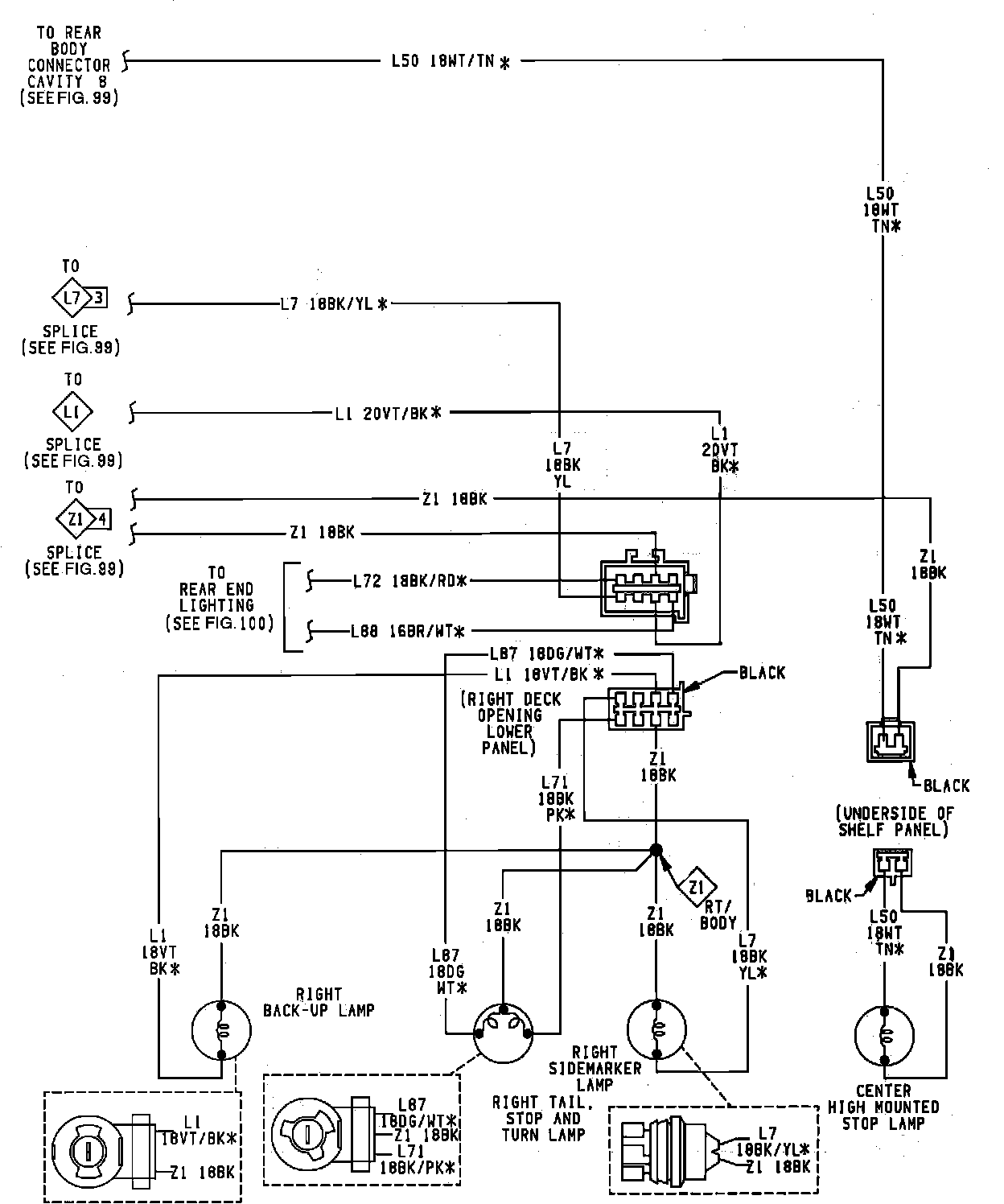

Rear End Lighting Without Lamp Outage -- Part 2:

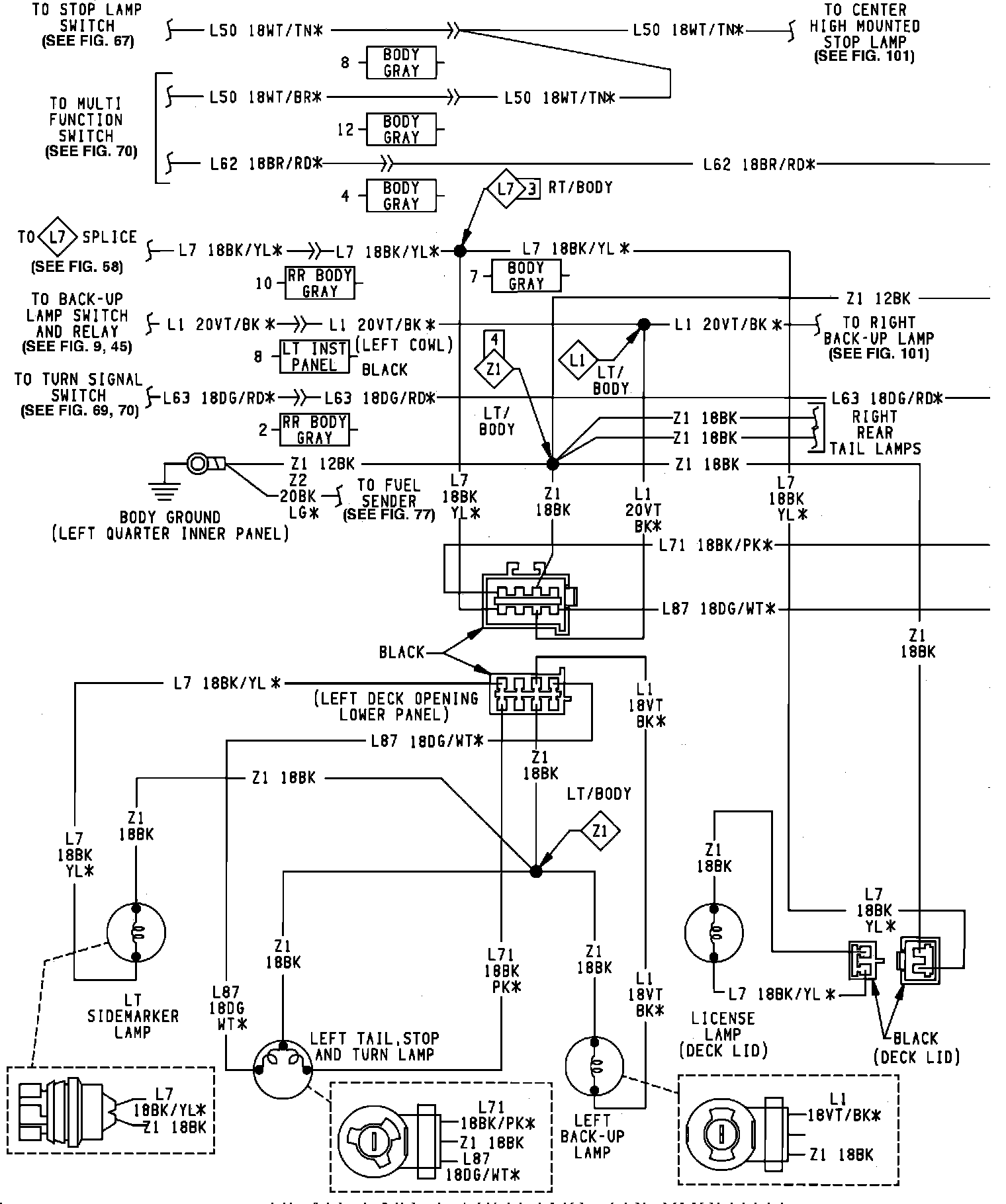

Rear End Lighting Without Lamp Outage -- Part 3:
