Plymouth
>>
1992
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
Heated Glass Element

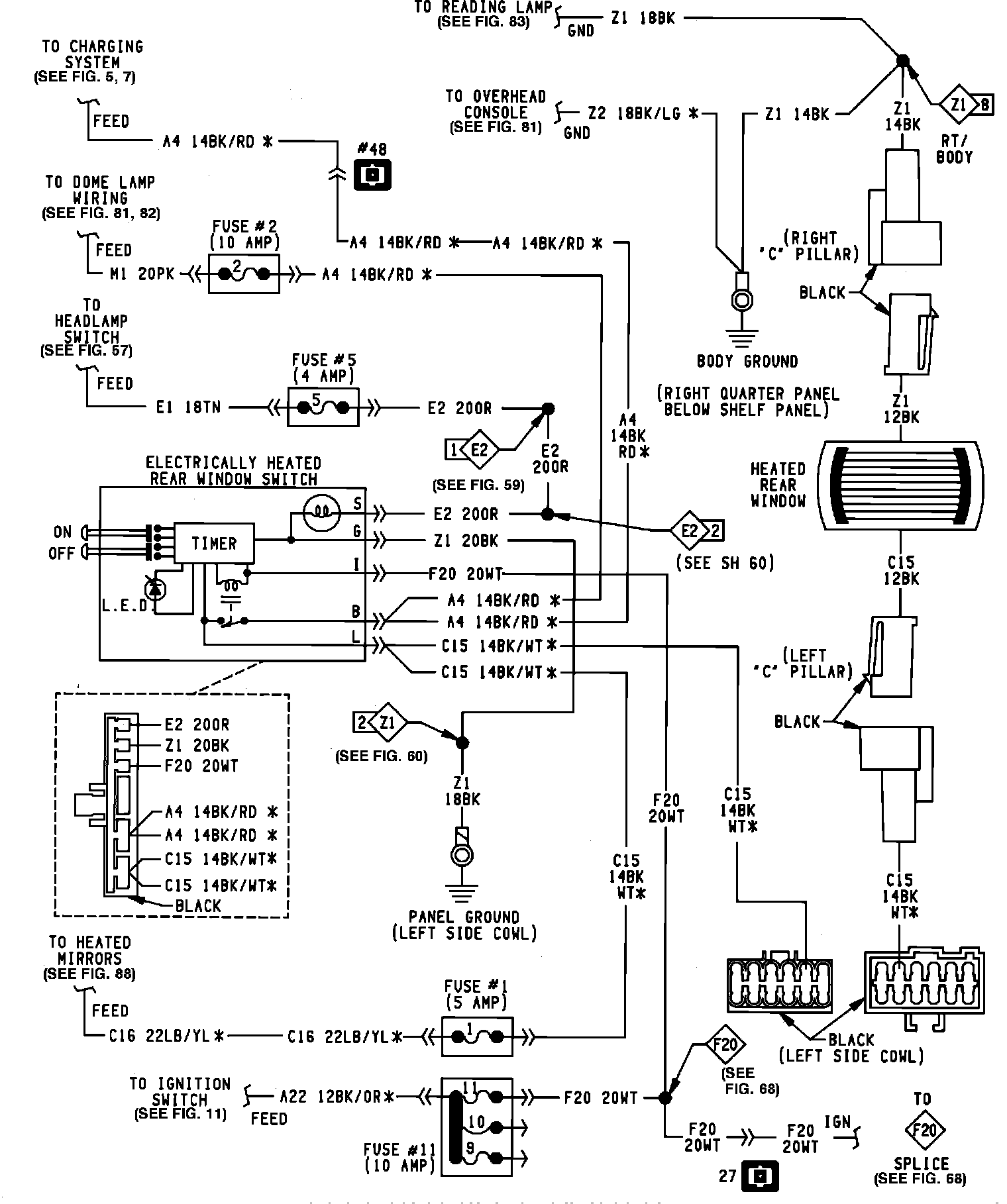

Electrically Heated Rear Window:
