Diesel Data: Automotive Repair

Home >> Plymouth >> 1992 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Electronically Tuned W/O Name Brand Speakers

Electronically Tuned W/O Name Brand Speakers

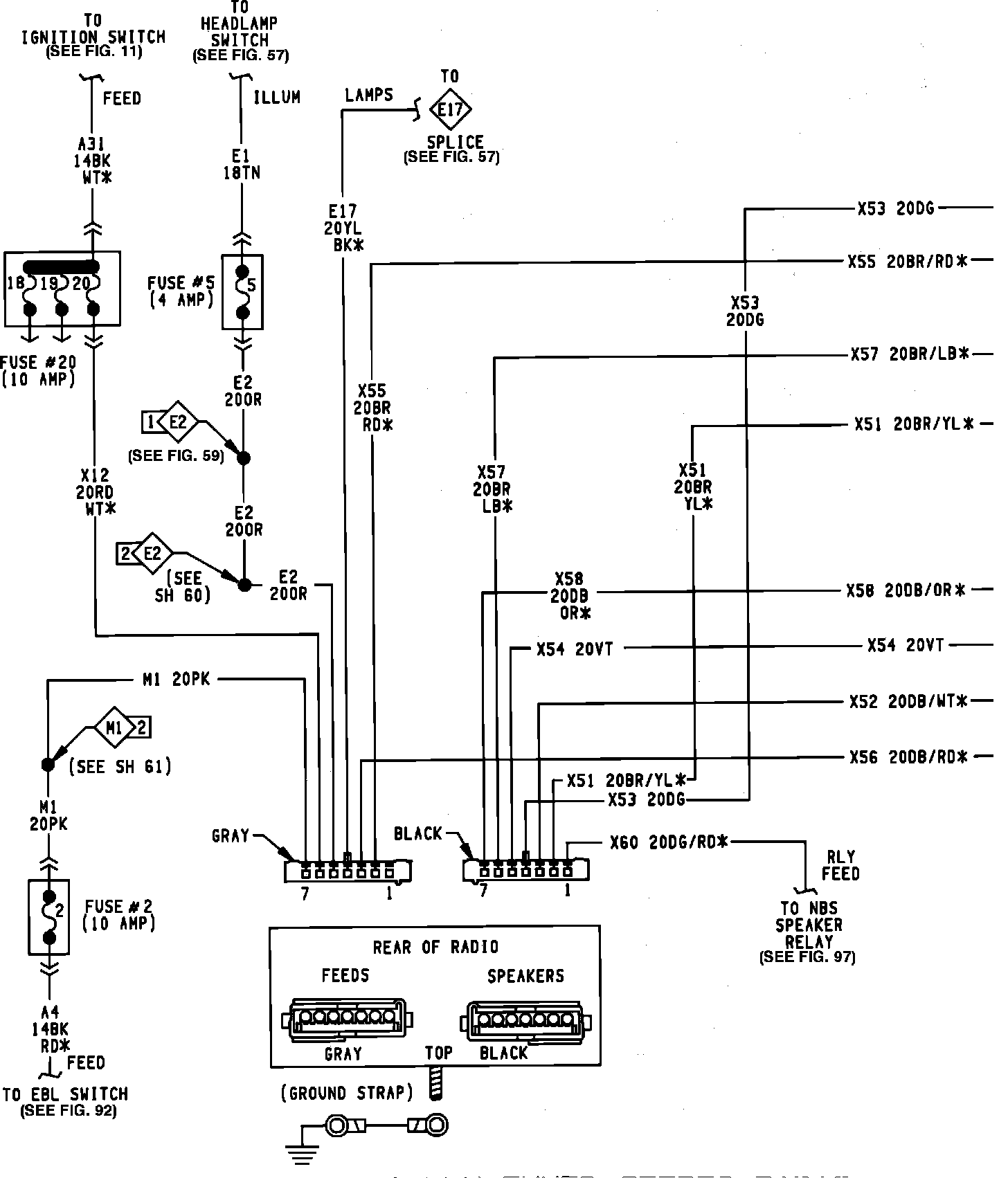

Electronically Tuned Stereo Radio Without Name Brand Speakers:

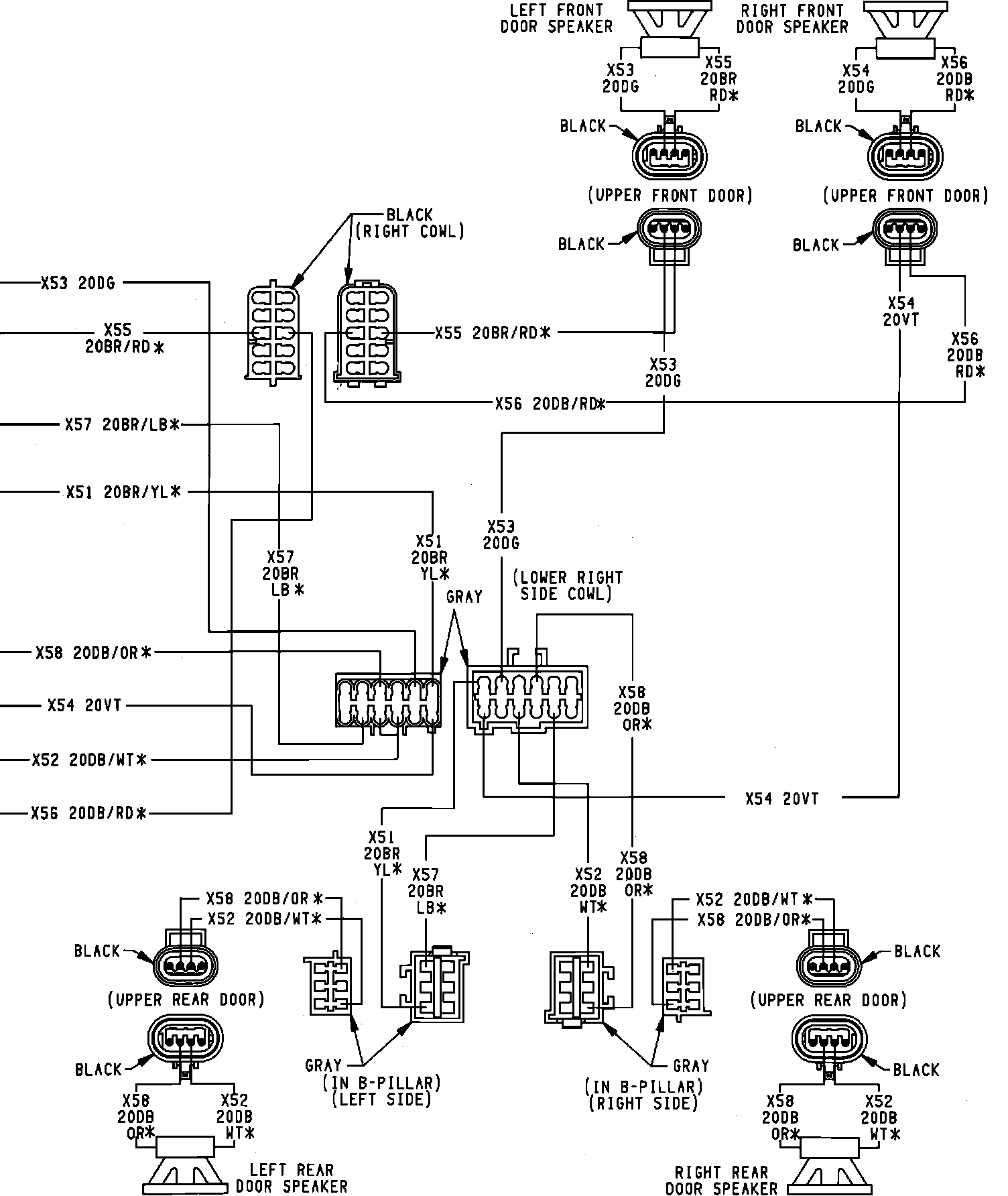

Speakers Front Door And Read Without Name Brand Speakers:
