Windows
Windows
Power Assist System:

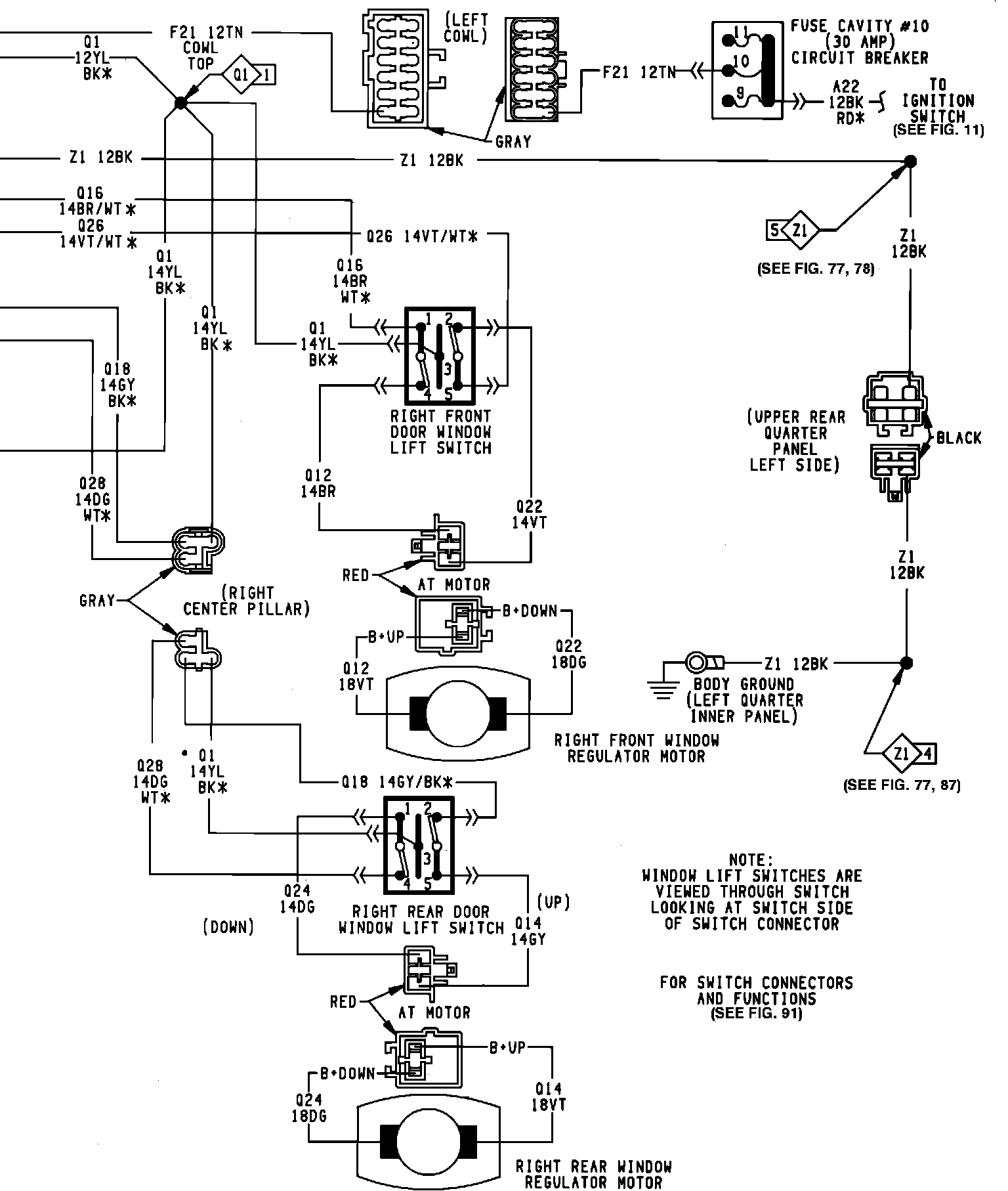

Power Window System:

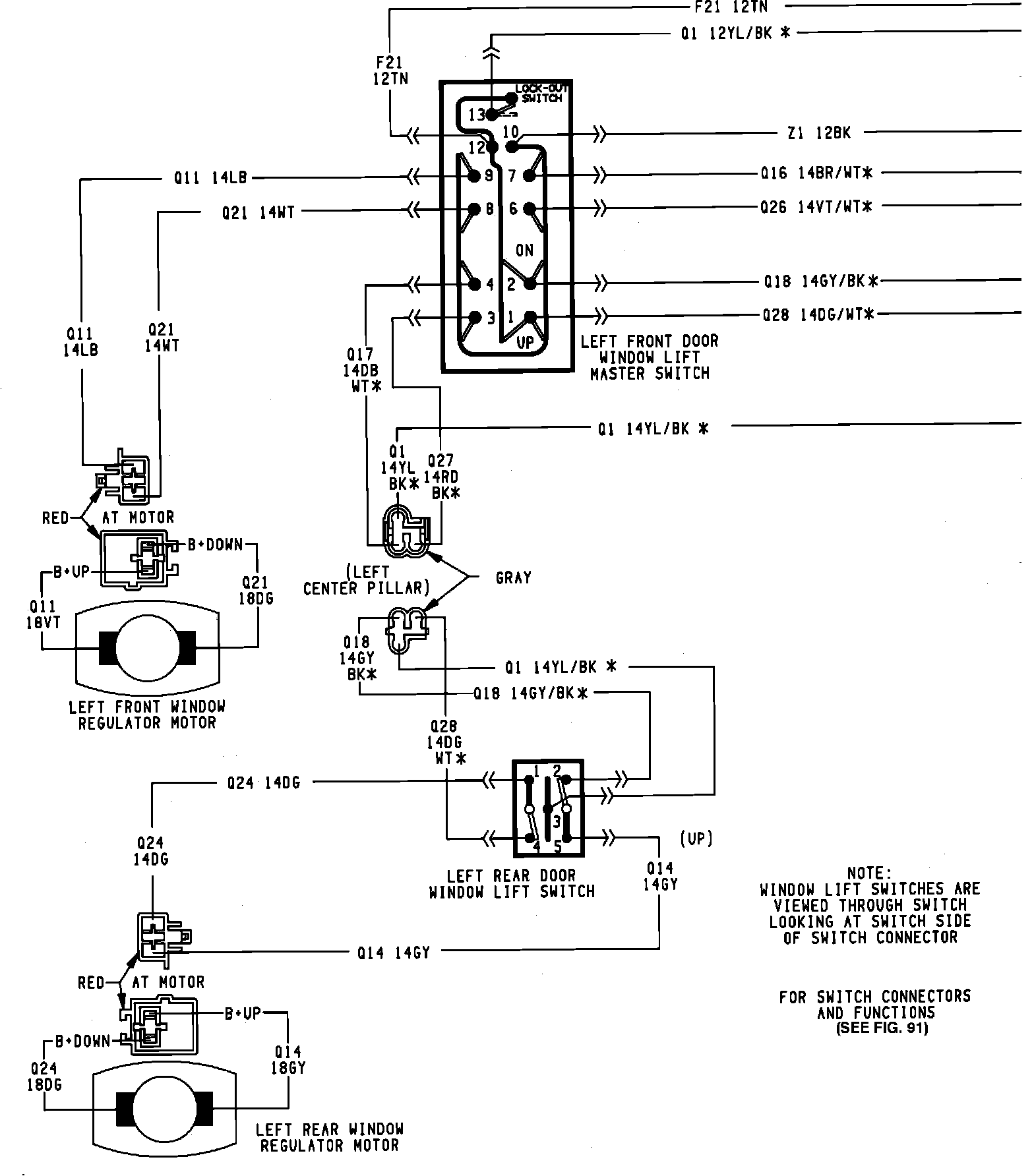

Power Window System:

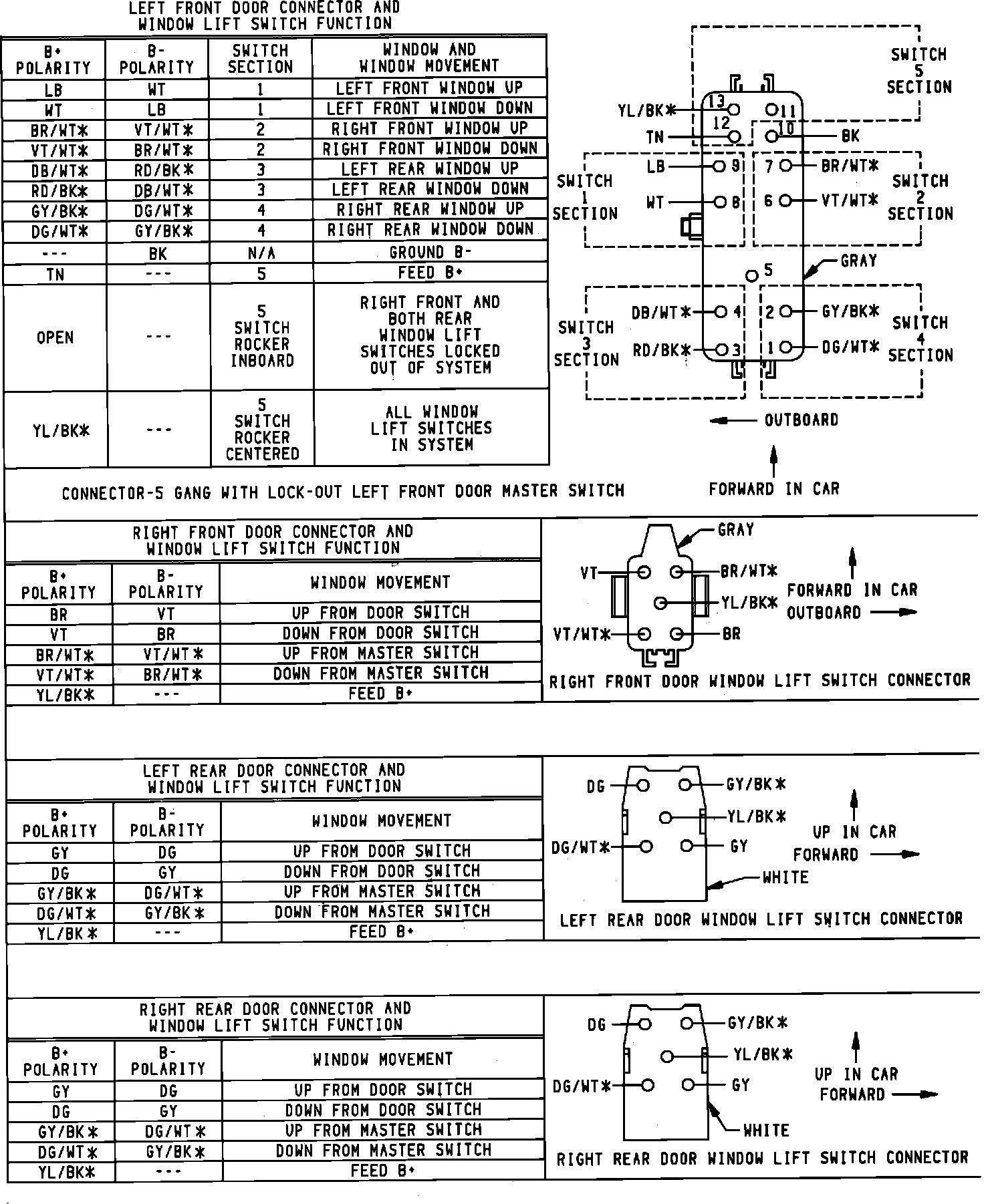

Power Window Connector And Switch Function:
