Home >> Plymouth >> 1992 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Locations

Lighting and Horns: Locations

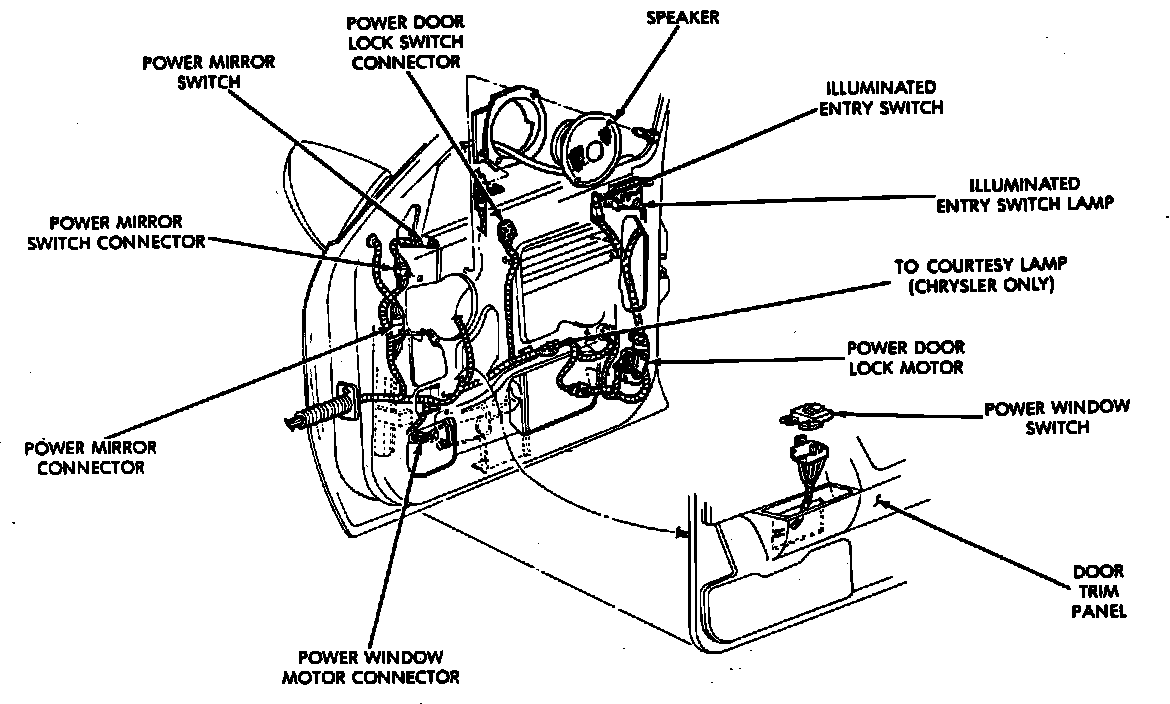

Front Door Components & Connectors:

Upper Rear Of Front Doors
