Chart No. 5, Vacuum Pump Drive Circuit Test
Chart No. 5, Vacuum Pump Drive Circuit Test

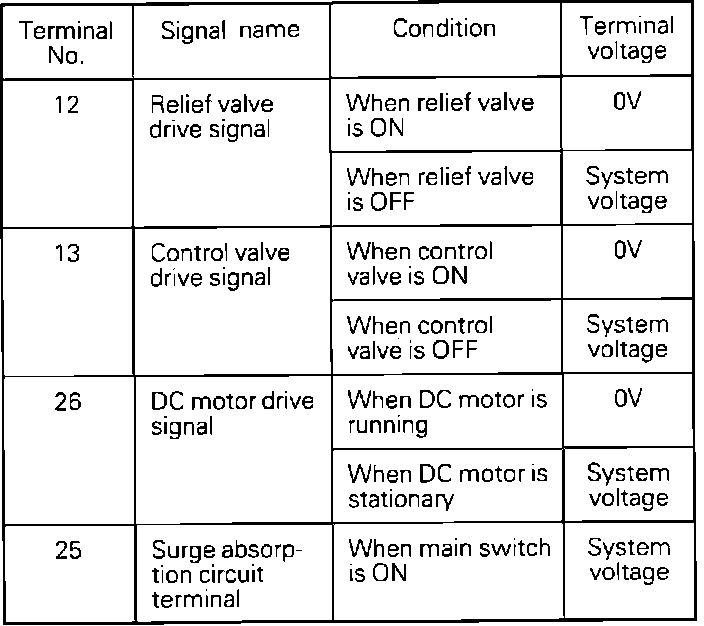

Fig. 61 Check Chart No. 5, Vacuum Pump Drive Wiring Circuit:
