Home >> Plymouth >> 1992 >> Sundance L4-135 2.2L SOHC VIN D TBI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-28A Repairing "Torque Converter Lockup SOL CKT" Fault >> Part 2 of 2

Part 2 of 2

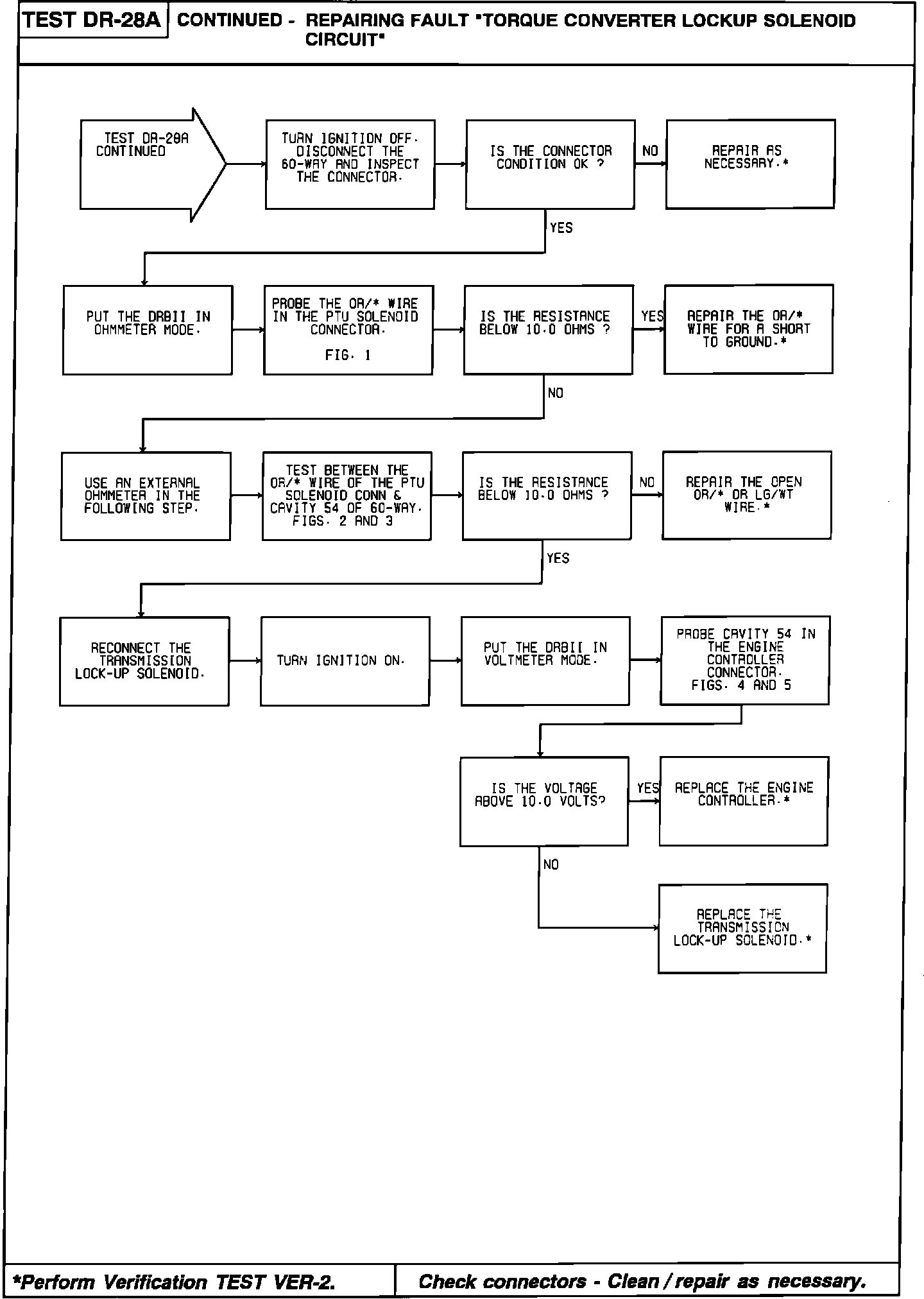

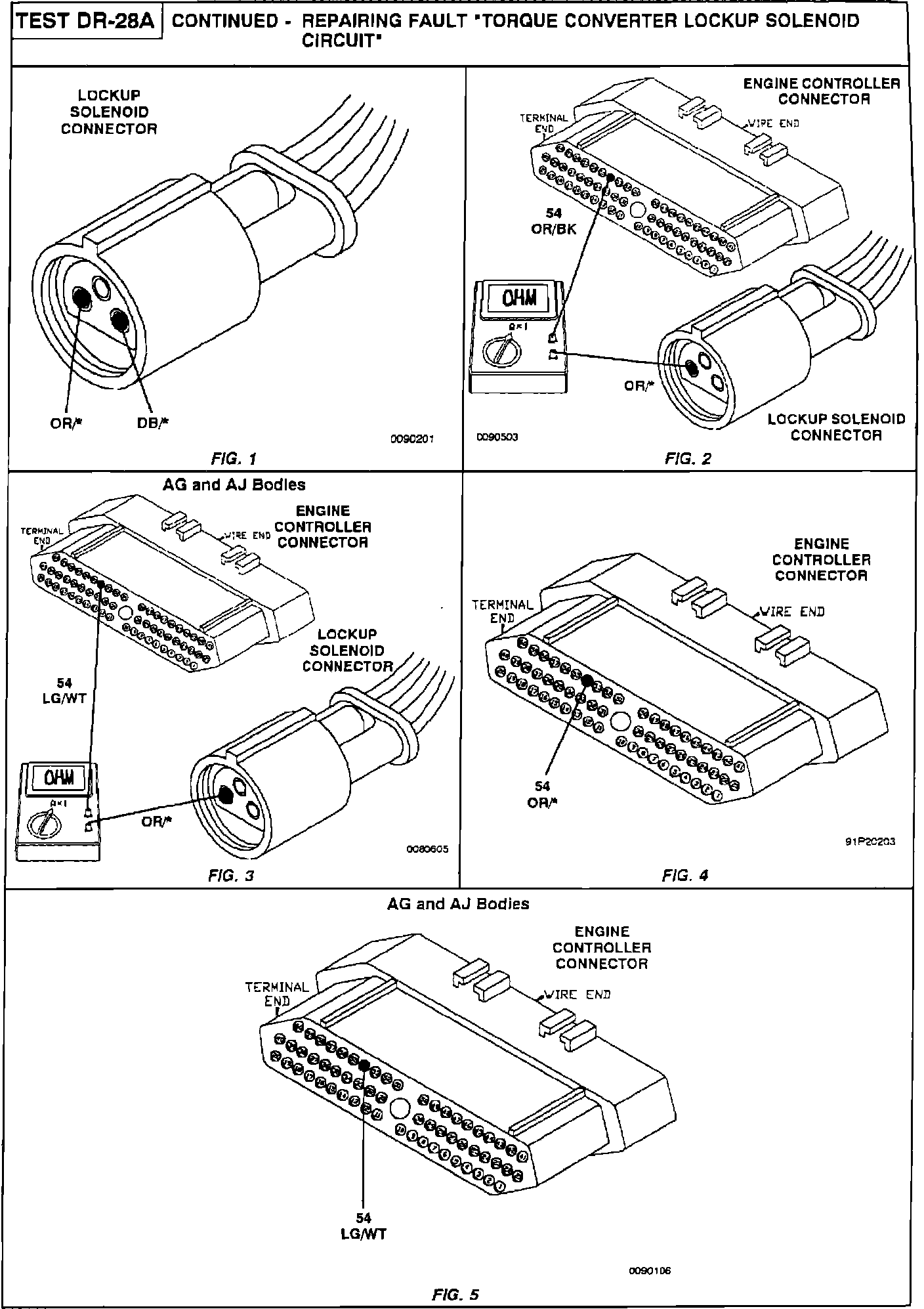

Test DR-28A Repairing "Torque Converter Lockup Solenoid Circuit":



Test DR-28A Repairing "Torque Converter Lockup Solenoid Circuit":
