Sundance L4-135 2.2L SOHC VIN D TBI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>

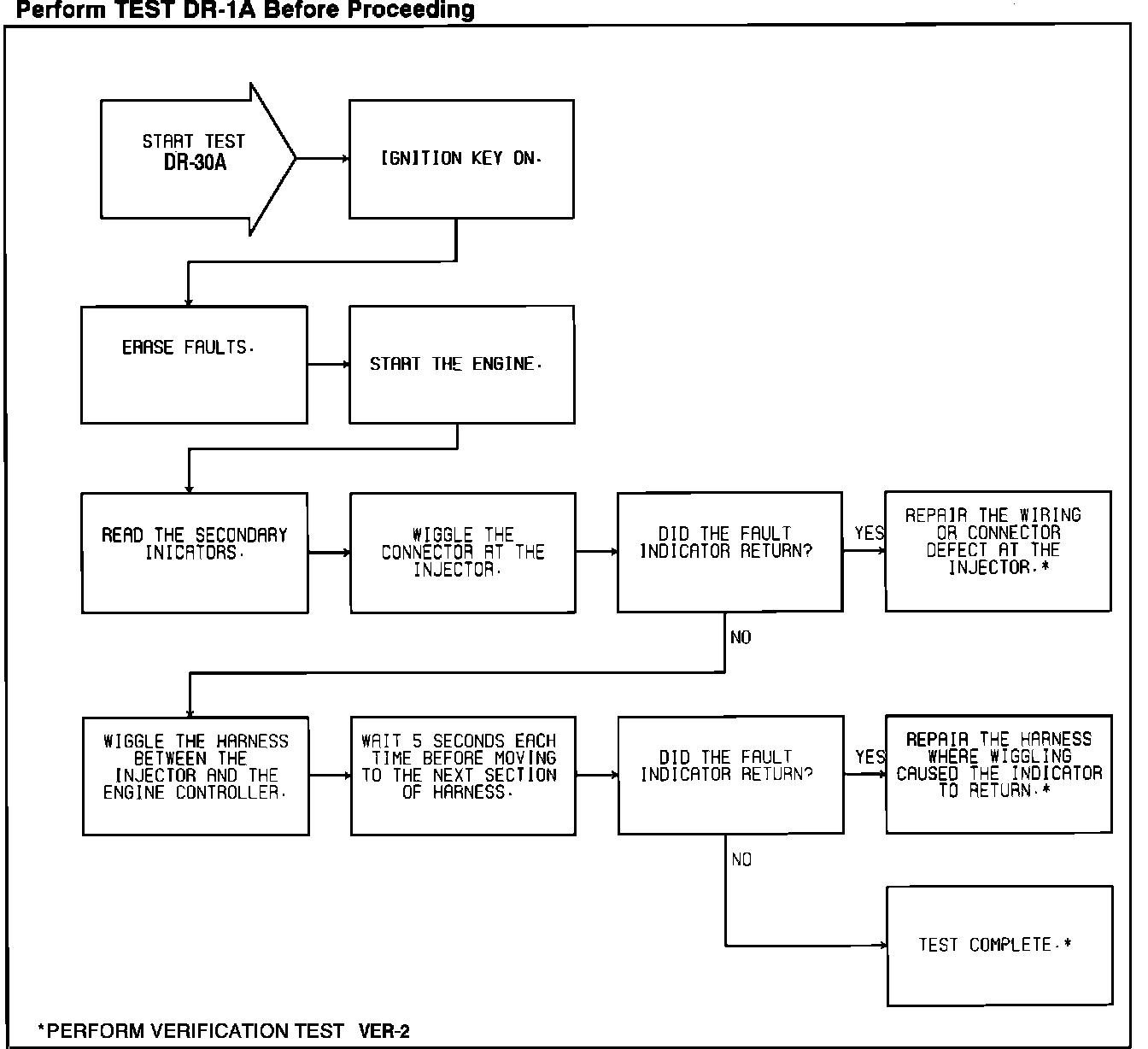

DR-30A Repairing" Injector Control Circuit" Fault
DR-30A Repairing" Injector Control Circuit" Fault
Injector Circuit Test:
