Diesel Data: Automotive Repair

Home >> Plymouth >> 1992 >> Sundance L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Locations >> Four Door

Four Door

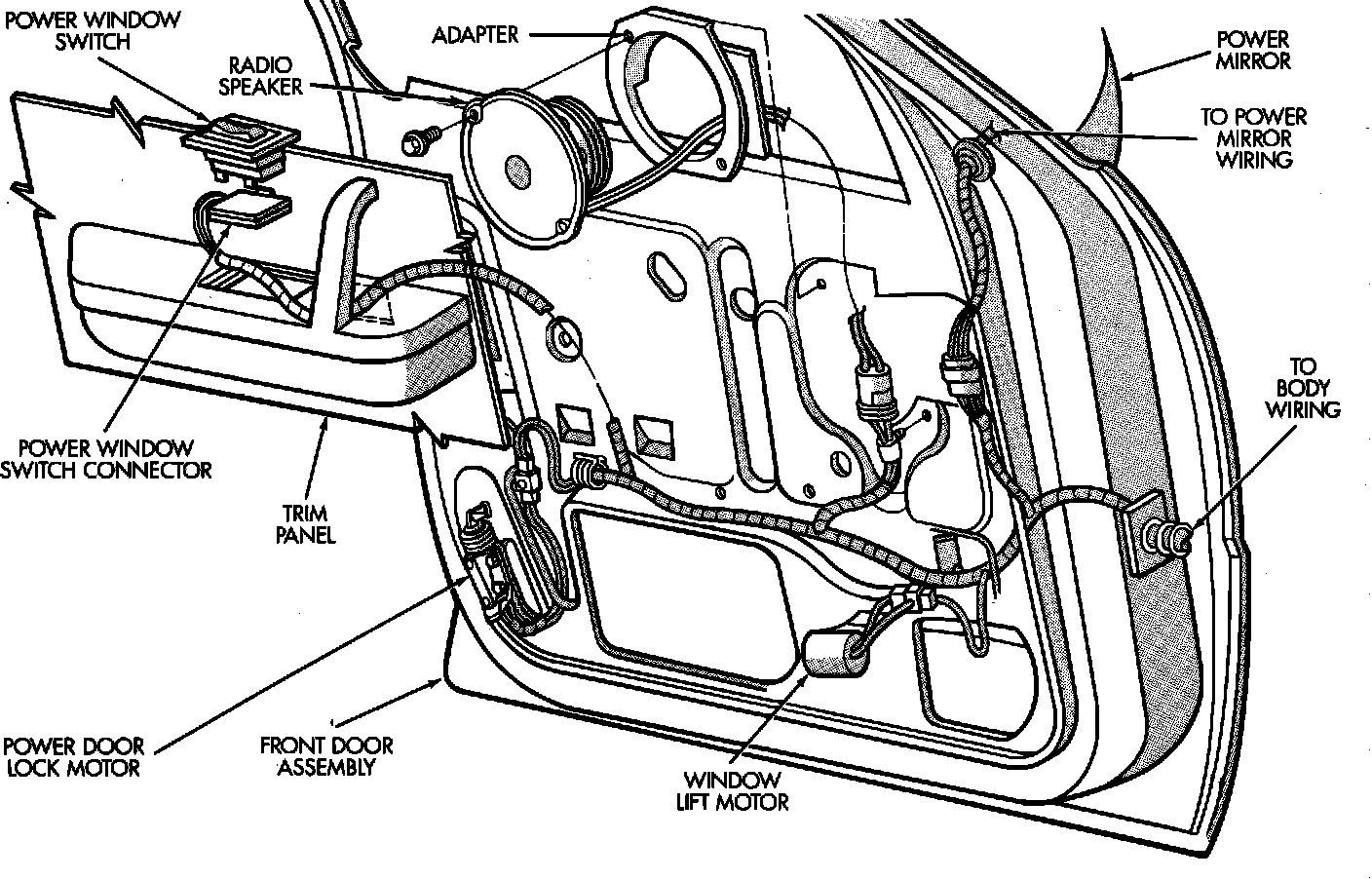

Door Wiring (Front) 4 Dr:
