Sundance L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Body Wiring to Instrument Cluster
>>
Left Side Connector
Left Side Connector

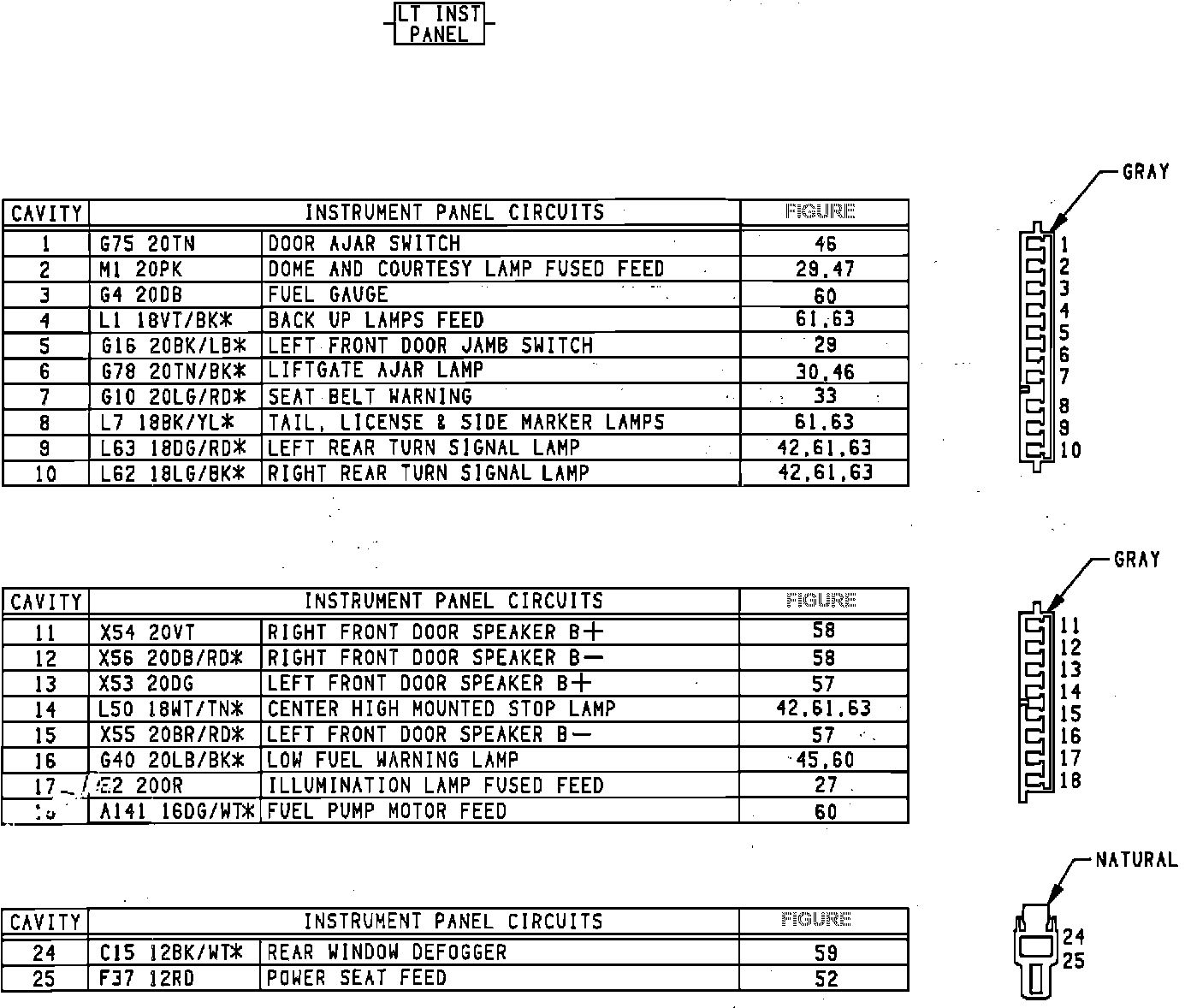

Body To Instrument Panel Wiring Left:

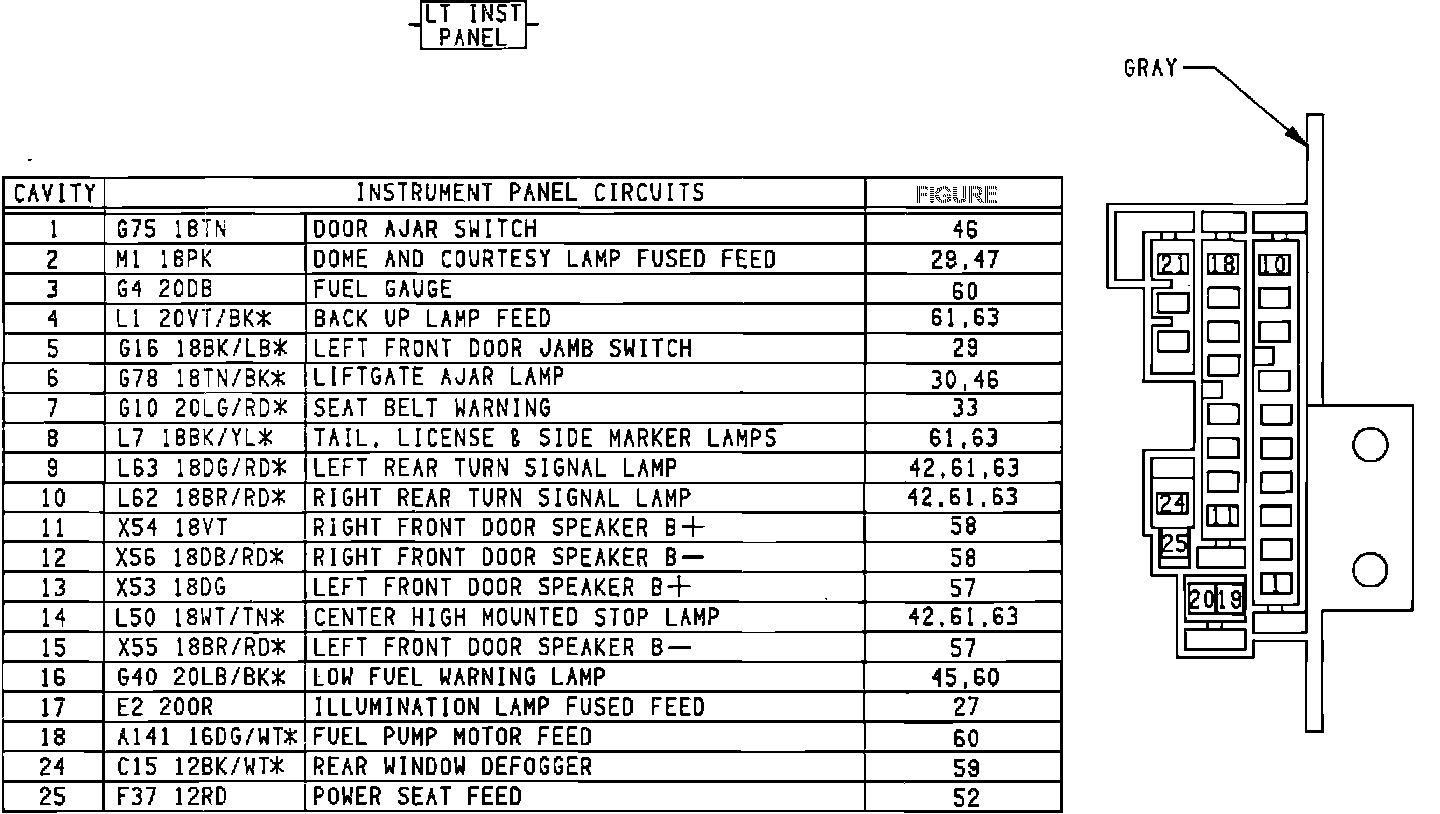

Instrument Panel To Body Wiring Left:
