21 Thru 40: 33

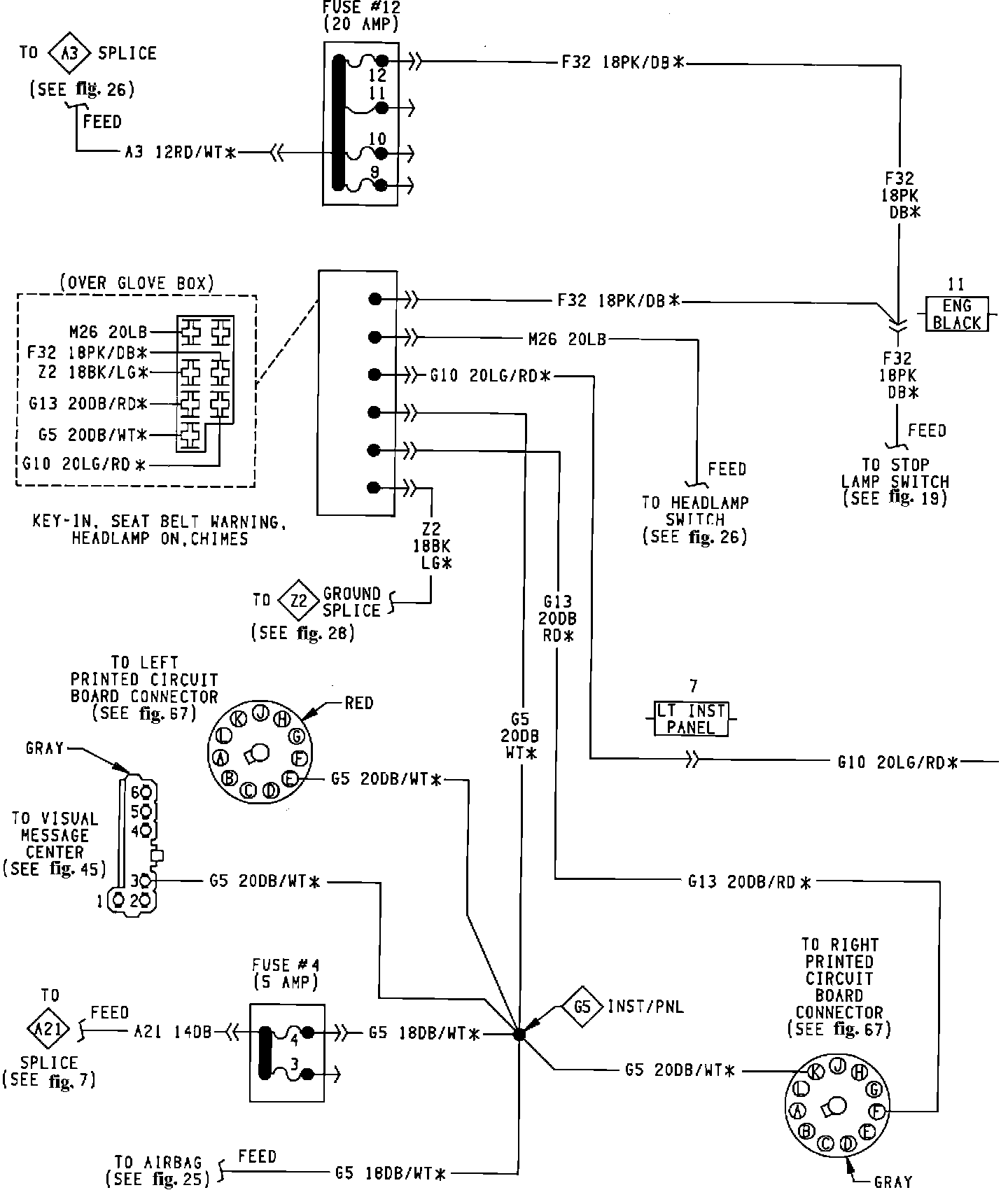

Seat Belt Warning System And Courtesy Lamps:

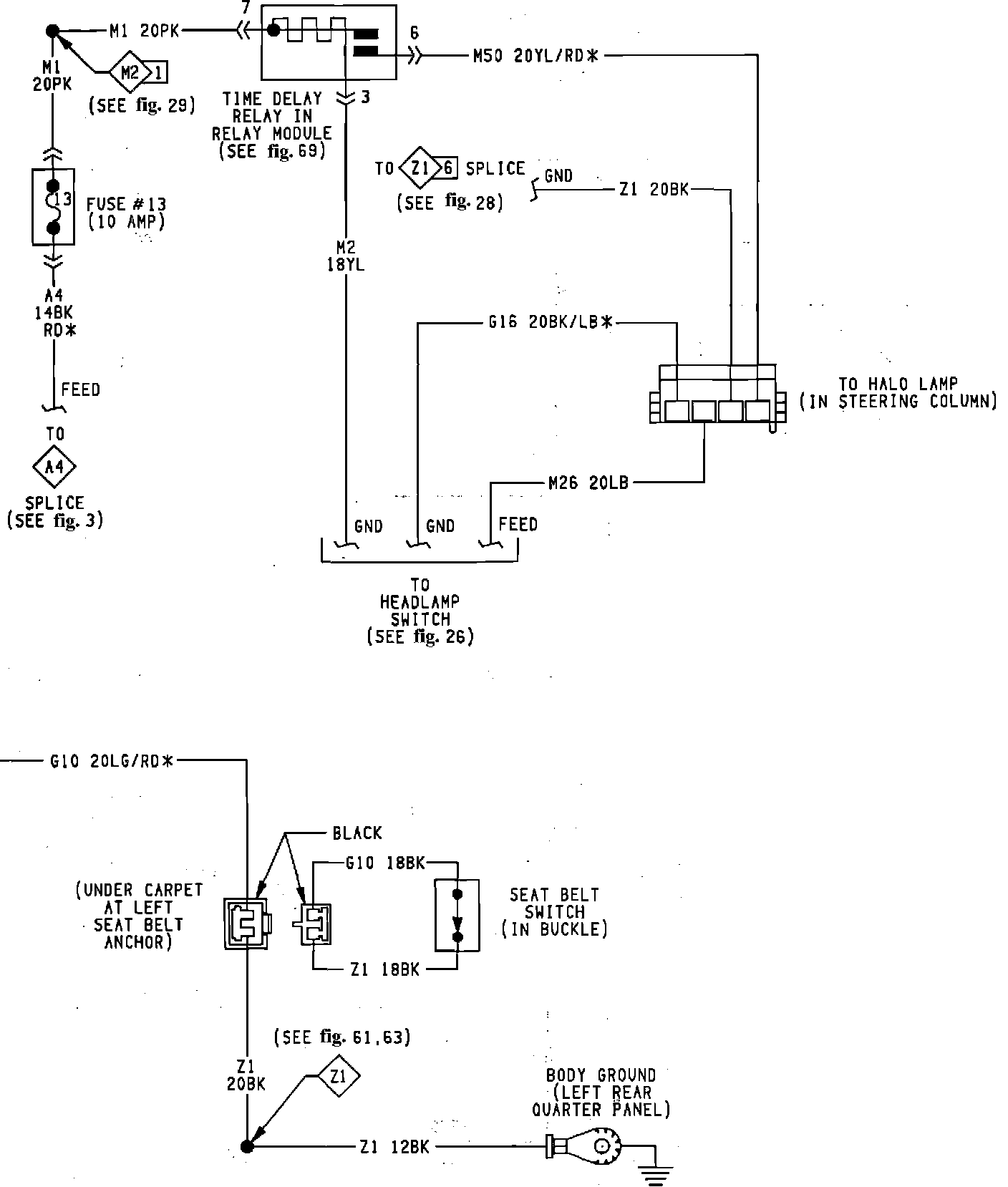

Seat Belt Warning System And Courtesy Lamps:
