Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1992
>>
Sundance L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
41 Thru 60
>>
47
41 Thru 60: 47

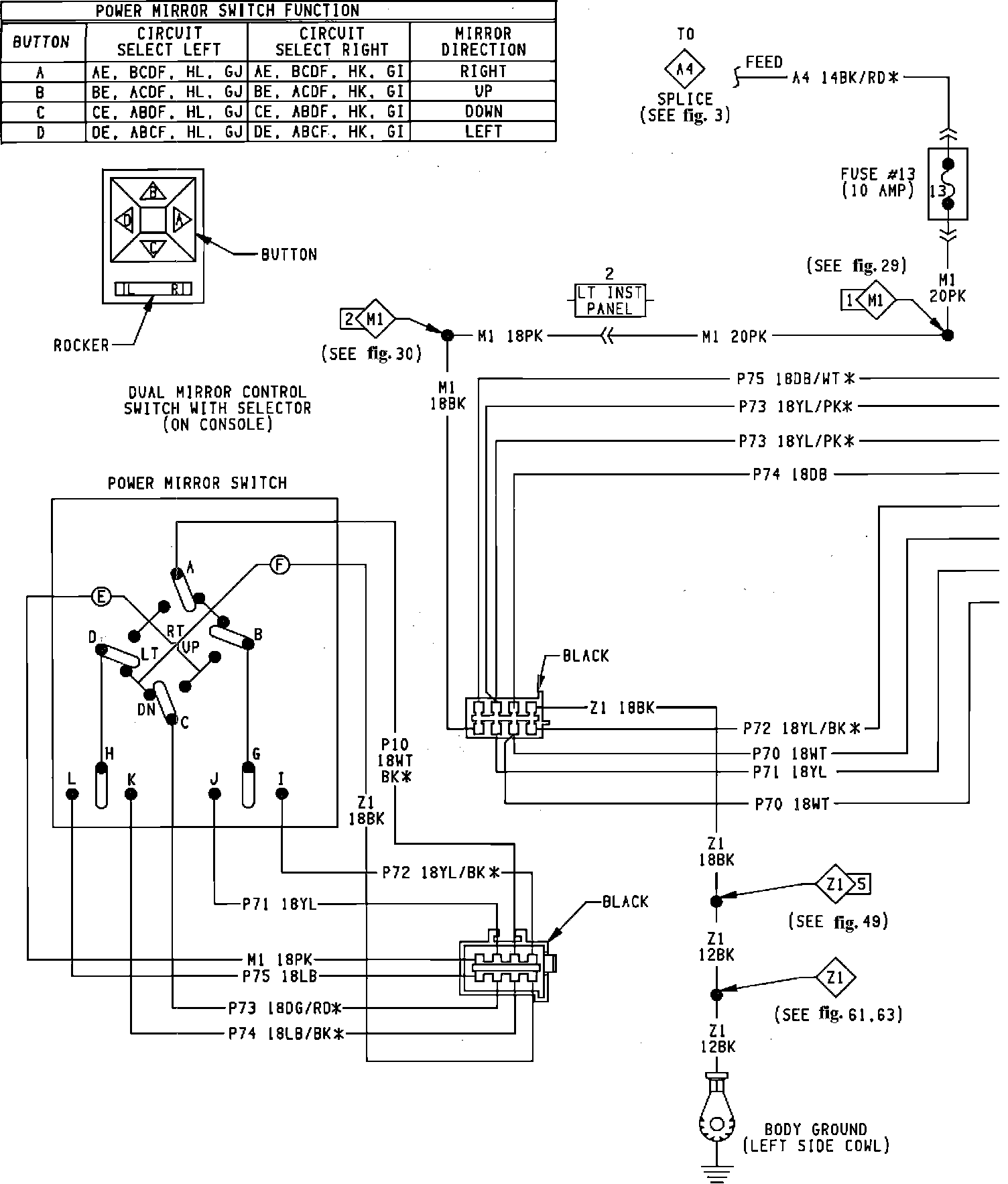

Power Mirrors:
Power Mirrors:
