Home >> Plymouth >> 1992 >> Sundance L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 41 Thru 60 >> 57

41 Thru 60: 57

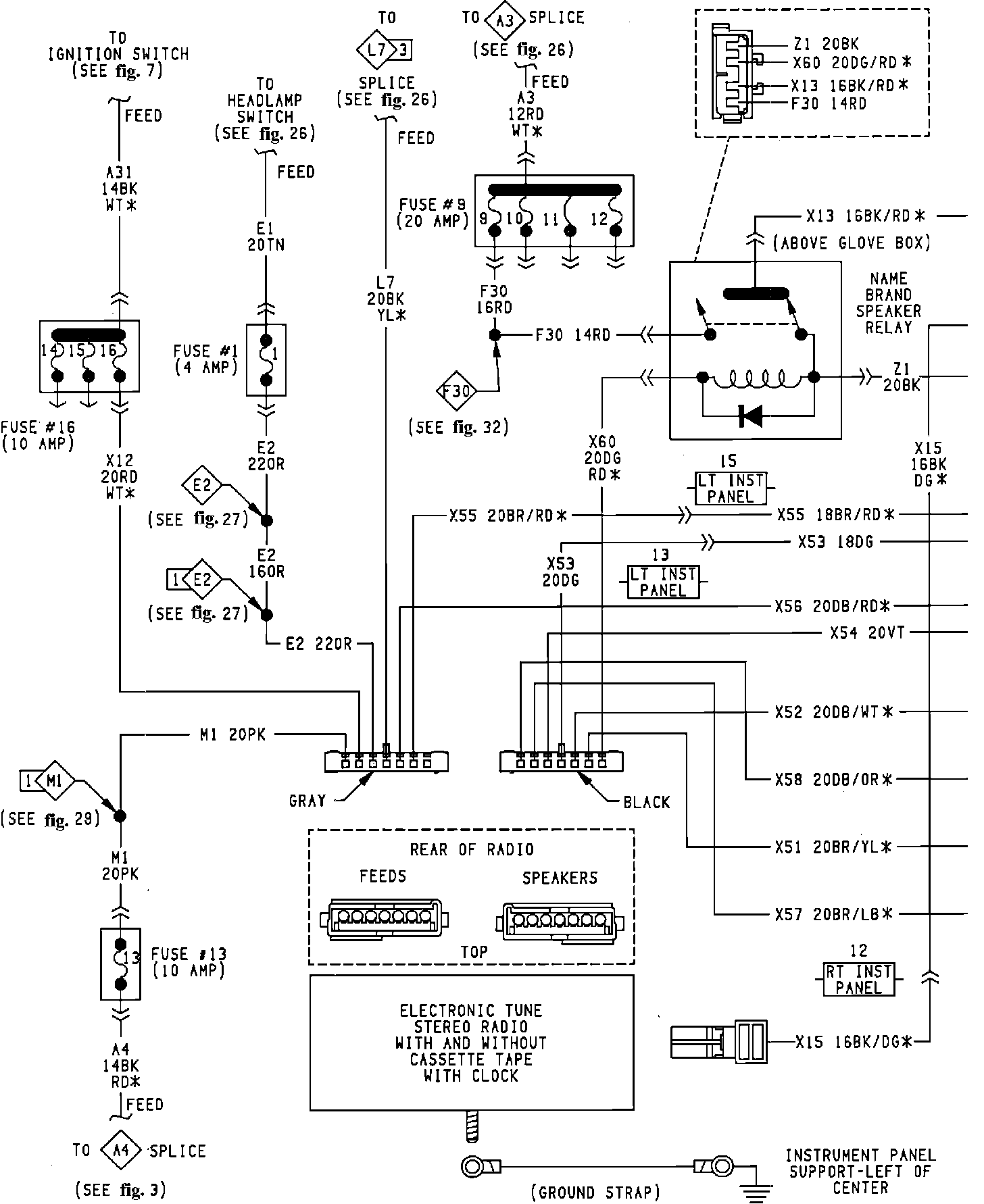

Stereo Radio:



Door And Rear Speakers:
