Home >> Plymouth >> 1992 >> Sundance L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 61 Thru 80 >> 77

61 Thru 80: 77

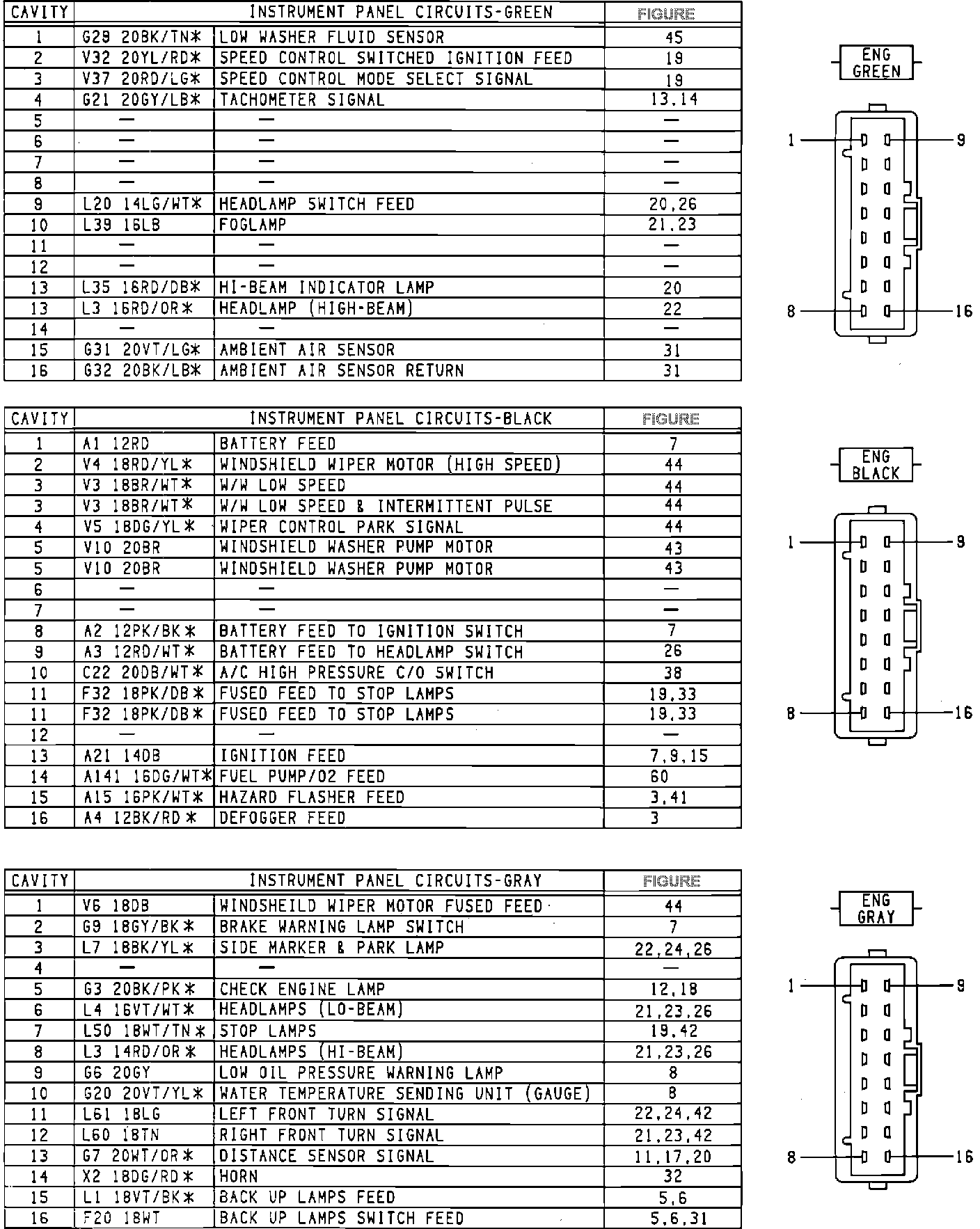

Instrument Panel To Engine Wiring:

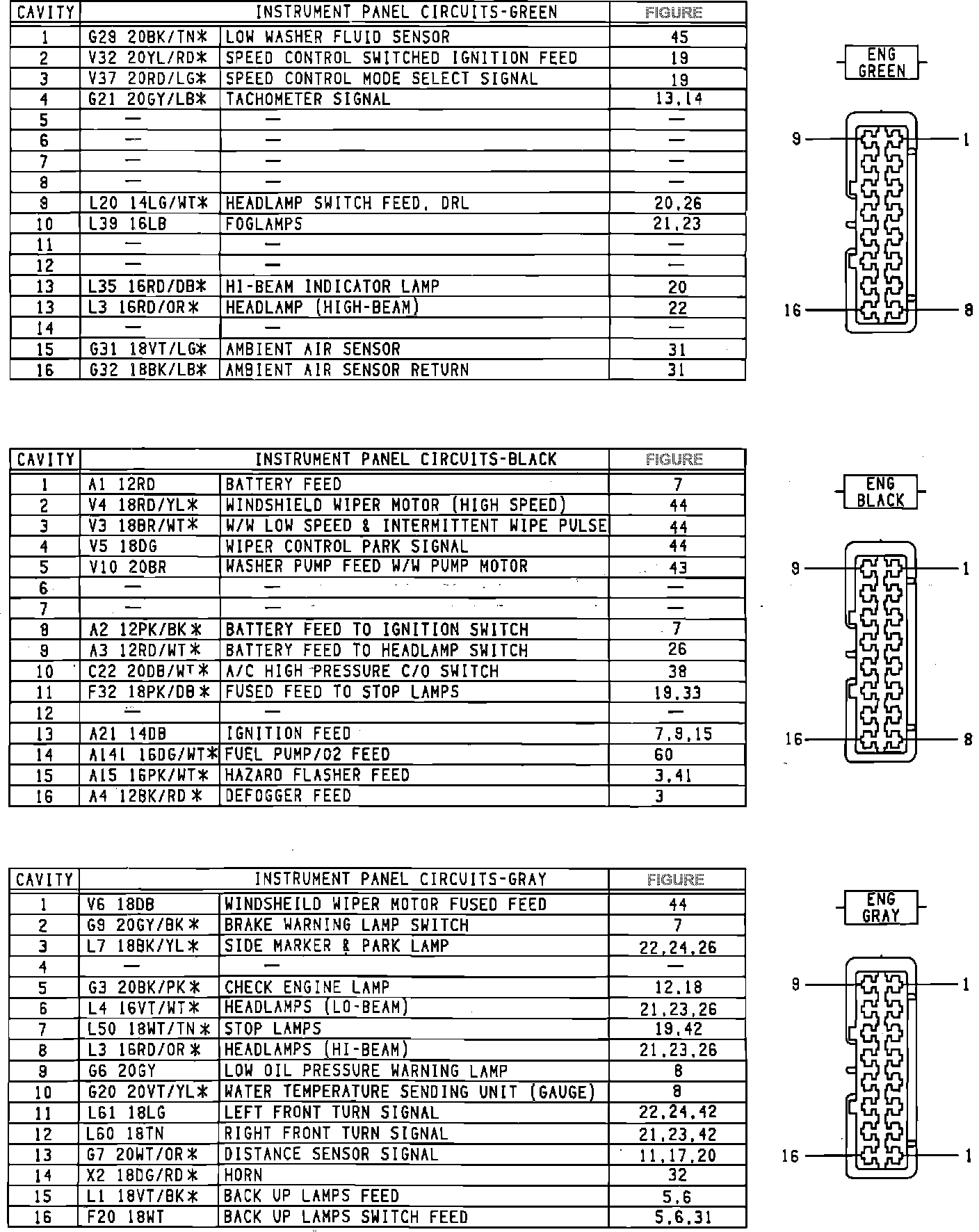

Engine To Instrument Panel Wiring:
