Sundance L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
License Plate Lamp
License Plate Lamp

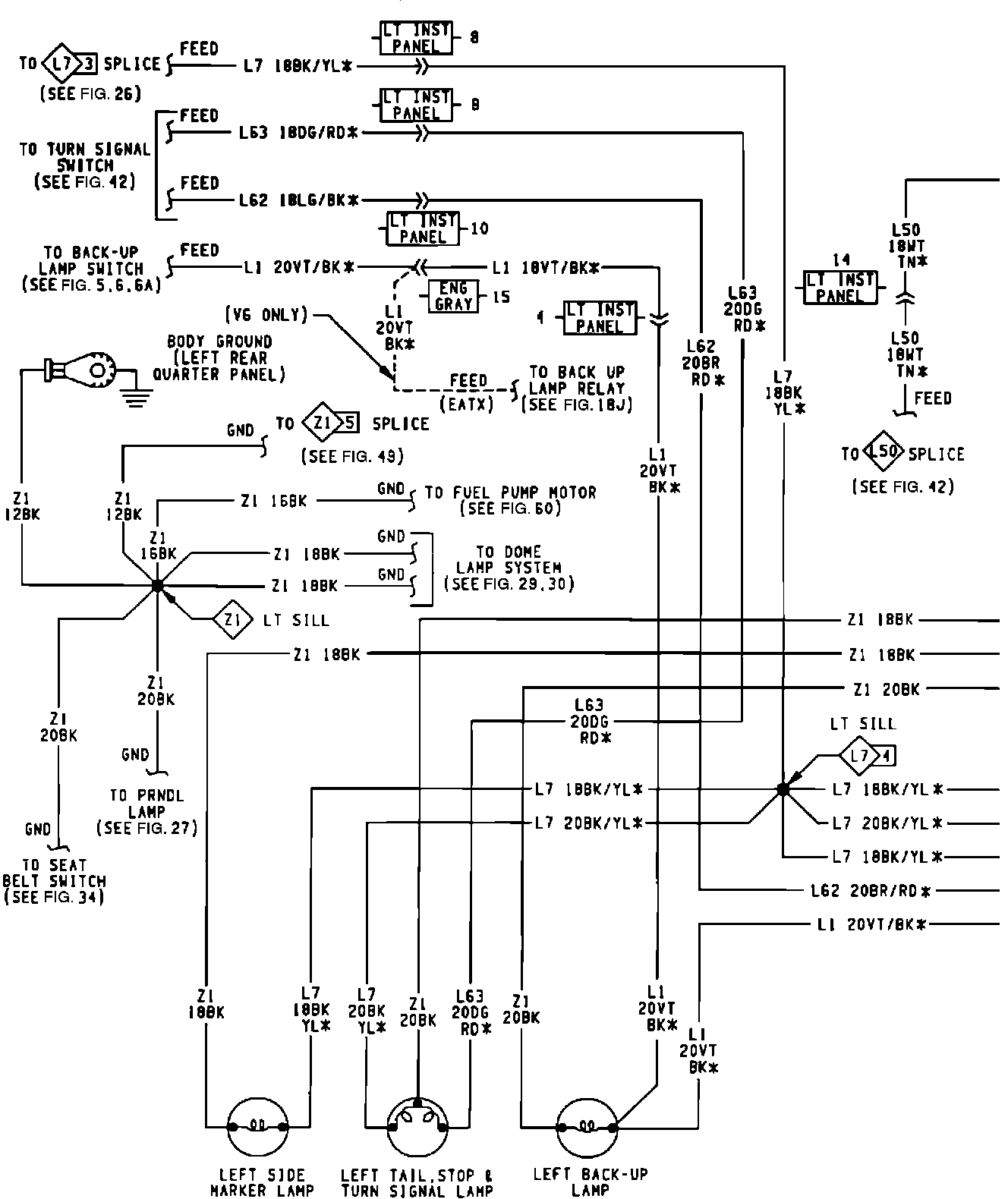

Rear Lighting Except Convertible:
