Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1992
>>
Sundance L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>

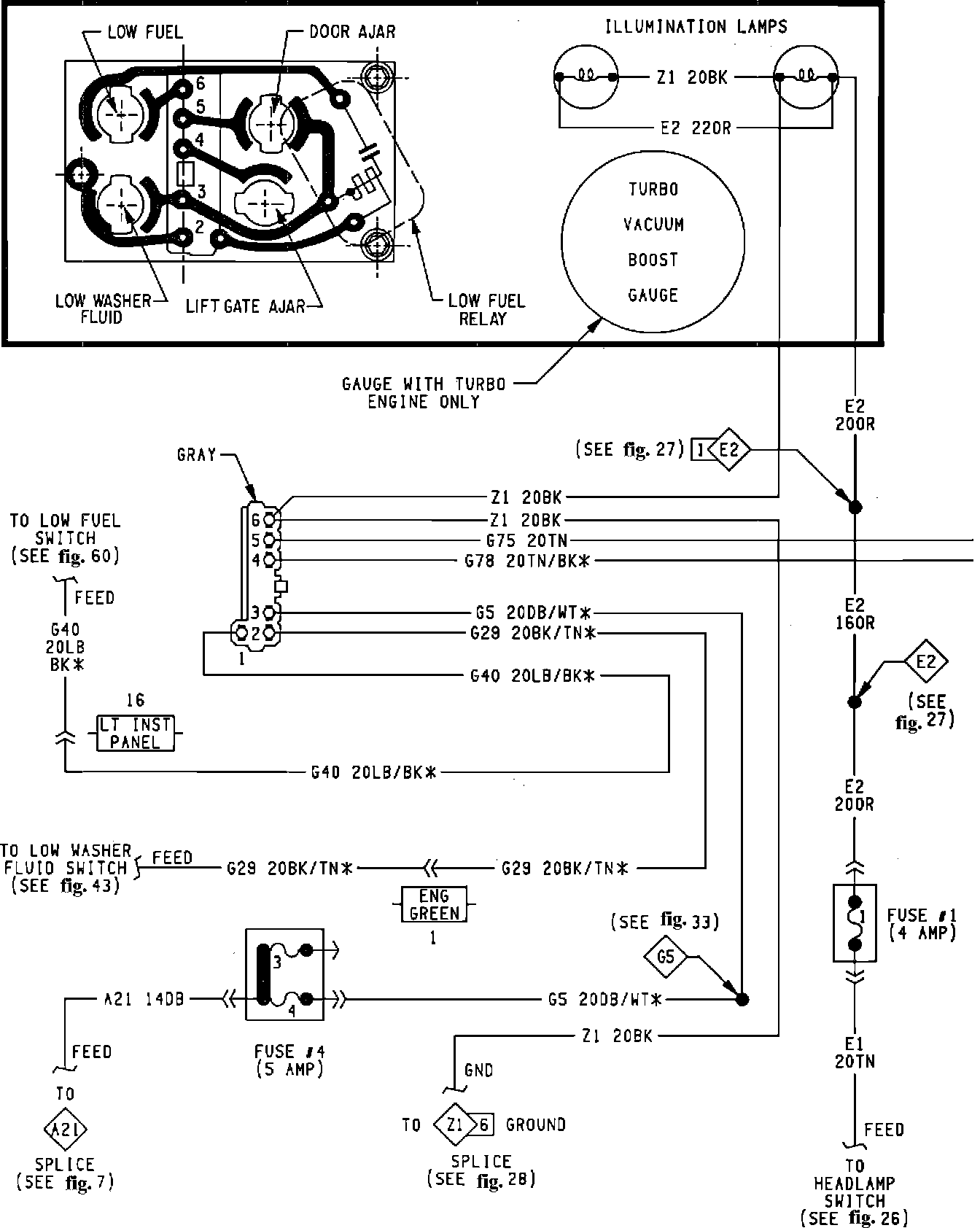

Door and Decklid Ajar Warning System
Door and Decklid Ajar Warning System
Message Center:
