Home
>>
Plymouth
>>
1992
>>
Sundance L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>
Connector Views
>>
Body Wiring to Instrument Cluster
>>

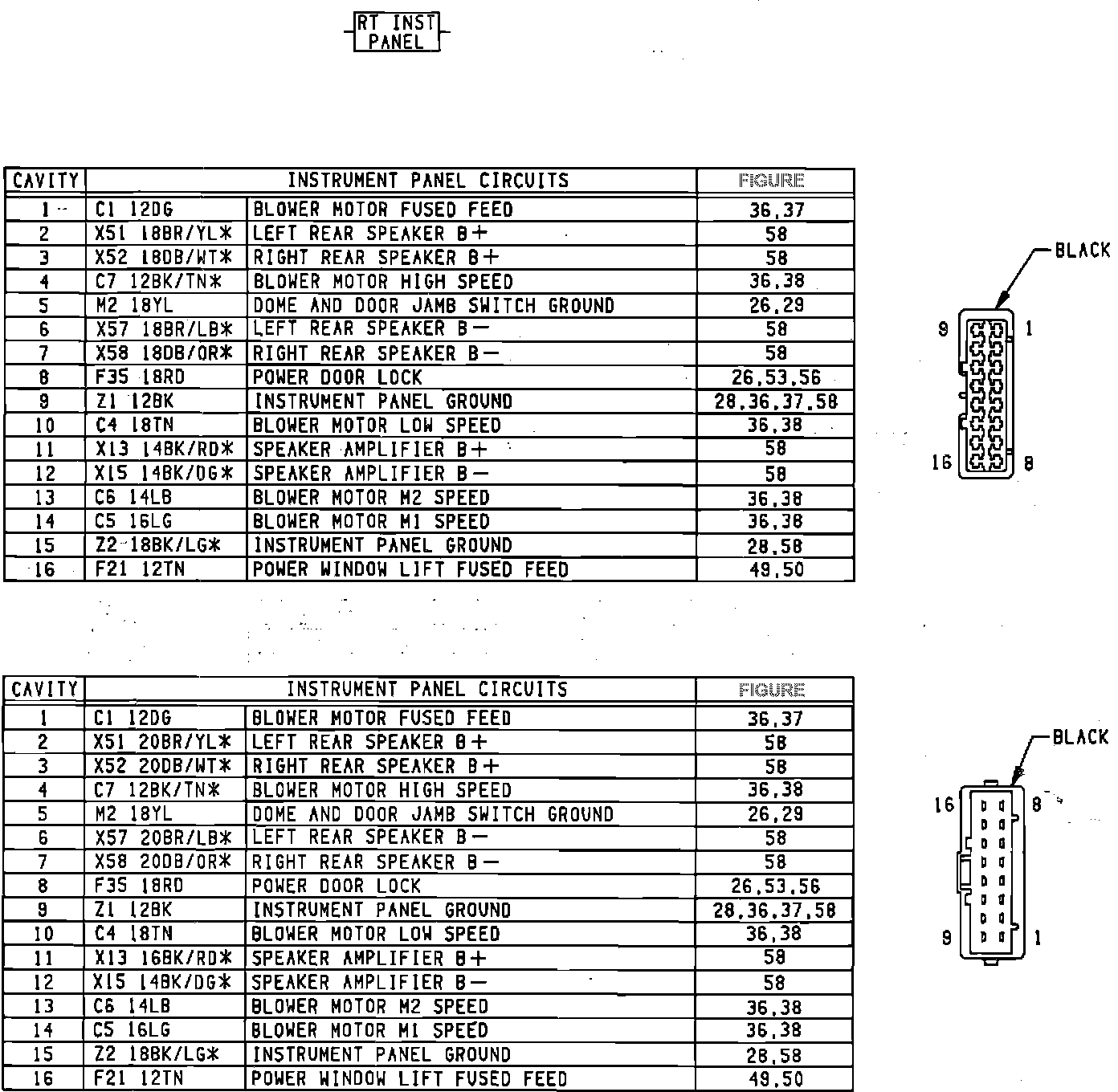

Right Side Connector
Right Side Connector
Right Instrument Panel Interface:
