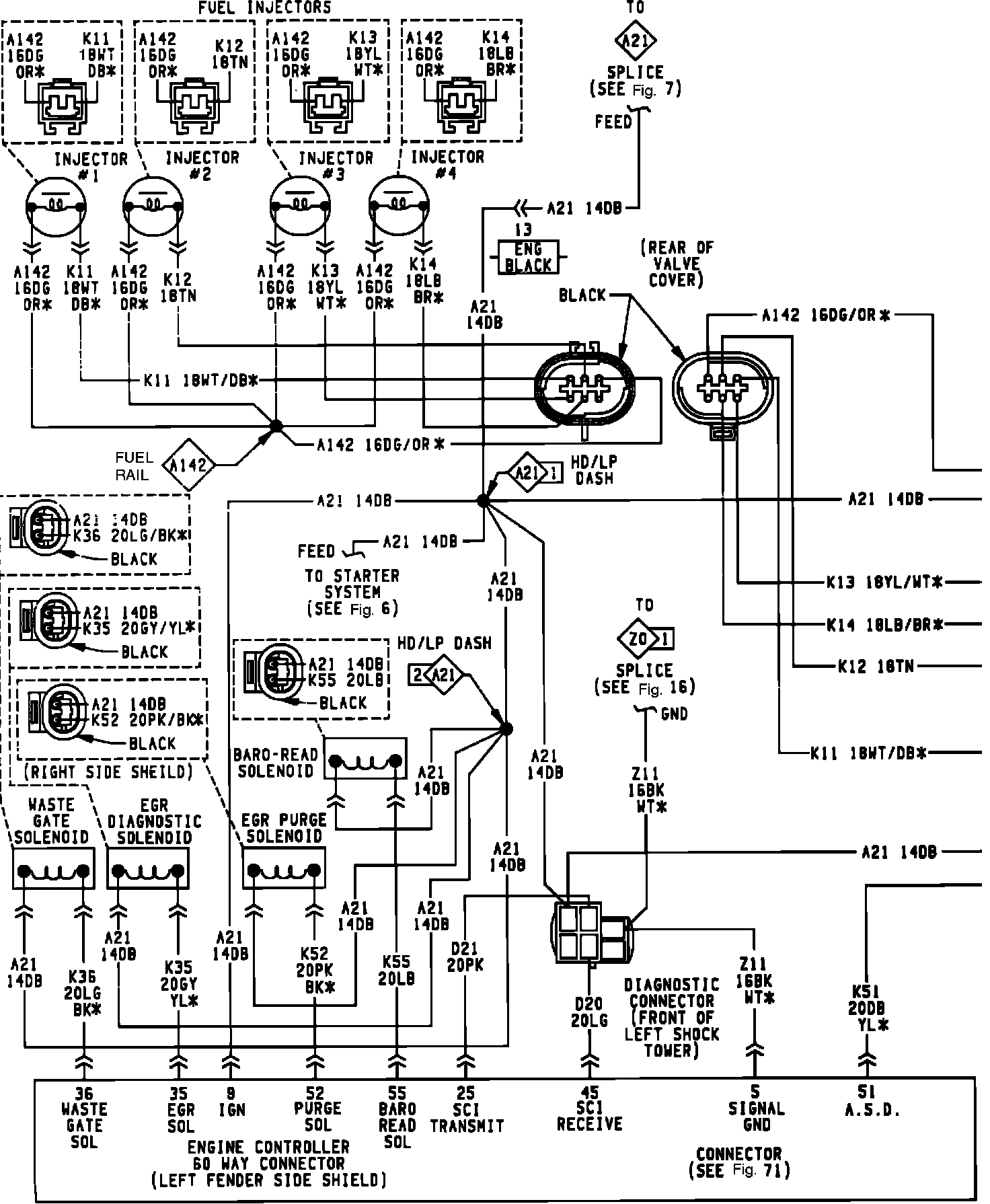

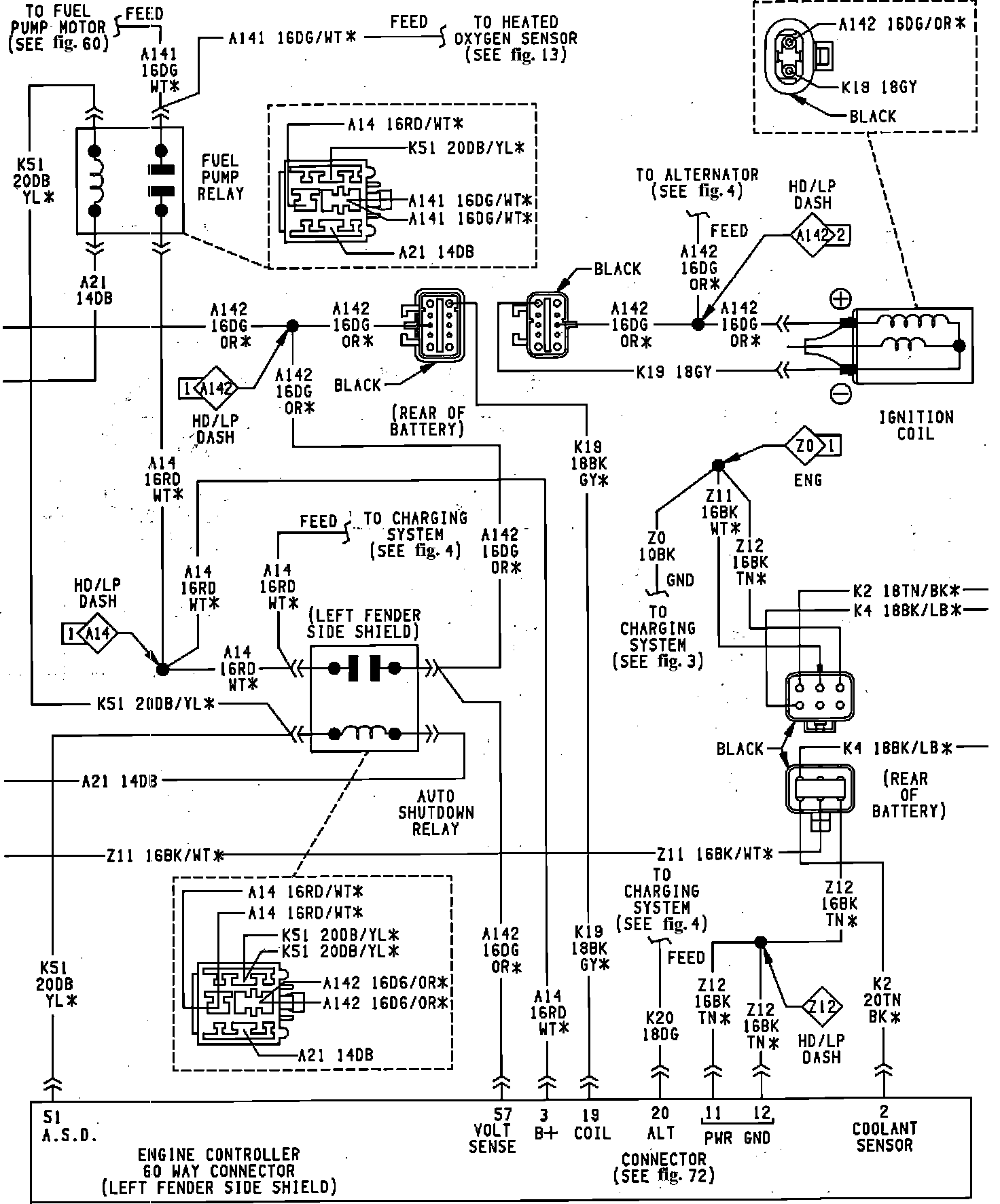

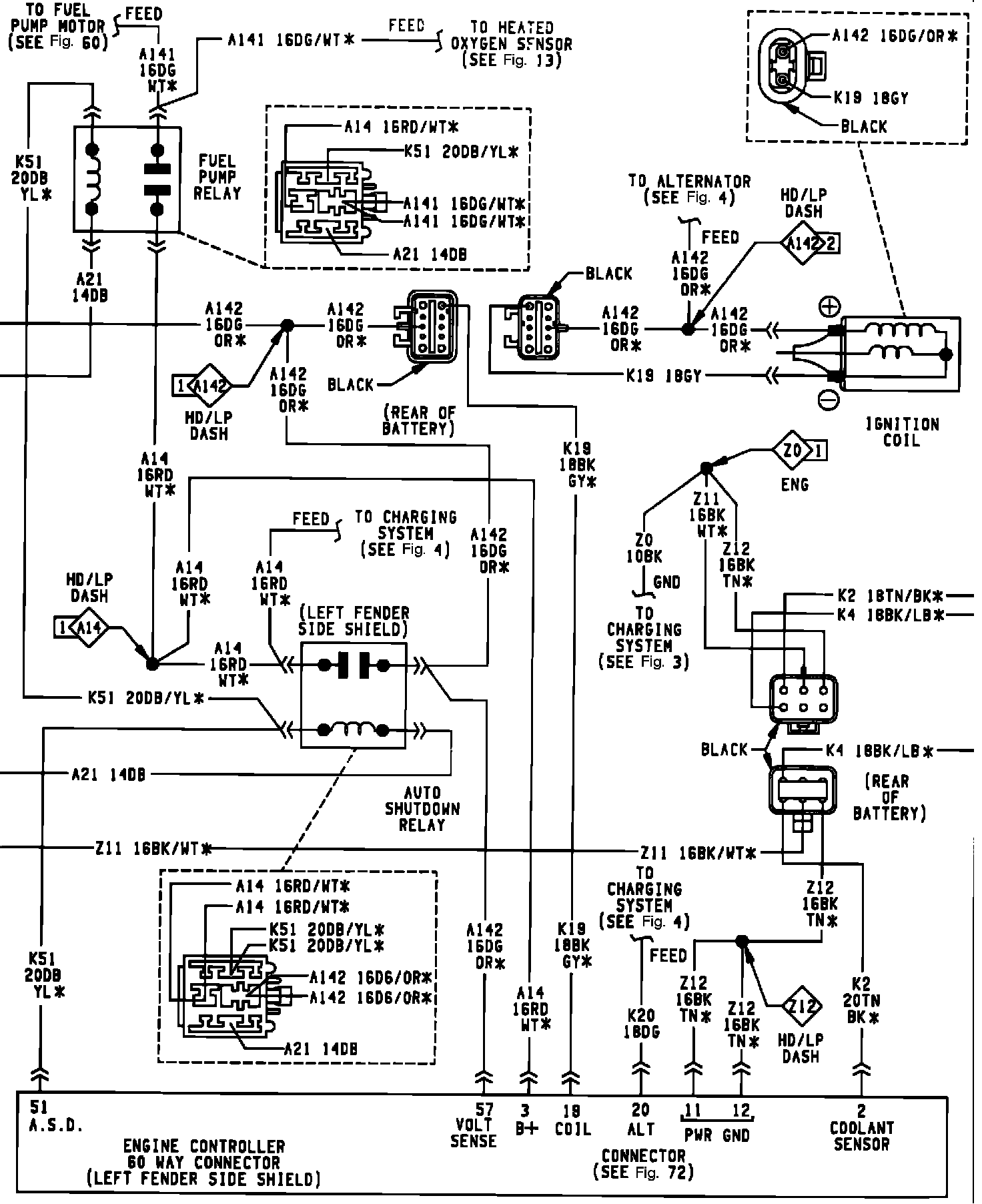

Fuel Injection And Ignition System Wiring Diagram (2 Of 5):



Fuel Injection And Ignition System Wiring Diagram (2 Of 5):



Electronic Fuel Injection Ignition System:
